RunnTech Multi-axis Joystick +/-5Vdc Analog Output for Manipulation of Submersible Vehicle

Product configuration: RT100-T-3-V3(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 3: dual axis free movement operation;
• V3: input: 24Vdc, output: -5Vdc…0…+5Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD7-BT1R: grip with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single Axis Industrial Joystick with 0…5Vdc Analog Output to Control Track Solutions

Product configuration: RT100-T-1-V6(10K)-03(589)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: self-centering to center;
• 1: single axis operation (Y axis default);
• V6: input: 24Vdc, output: 0…2.5…5Vdc;
• 10K: 10K ohm center tapped potentiometer;
• 03(589): 2 directional contacts and 1 center detecting contact in Y axis;
• HD1-BT1R: grip top with red momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

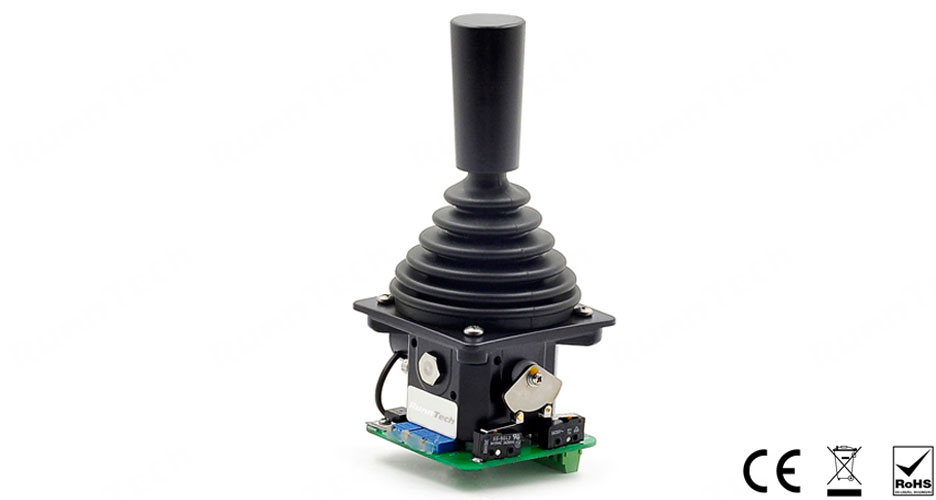

RunnTech Electrical Joystick -10V…+10V Output for Marine Crane Hydraulic Proportional Valve

Product configuration: RT100-T-2-V1(10K)-01(5)-HD1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center operation;
• 2: dual axis, plus (+) direction movement;
• V1: input: 24VDC, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03(589): 1 center detect contact and 2 directional contacts in each axis;
• HD1: HD1 joystick grip (top without momentary pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Stepless Joystick 4…20mA to Control Movement of Overhead Crane Bridge & Trolley

Product configuration: RT02-T-2-I1(10k)-02(89)-HD11-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: spring return to center operation;
• 2: Y/X axis plus direction (+) movement;
• I1: input 24Vdc, output: 4 wire 4mA…12mA…20mA (current output);
• 10K: 10K ohm precision potentiometer;
• 02(89): directional switches (forward/reverse or left/right);
• HD11: grip top without pushbutton;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech 2 Axis, 4 Directions Joystick to Control Electric Motors for Melting Furnace Tilting

Product configuration: RT100-T-2-V1(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 2: dual axis, plus (+) directional operation;
• V1: input: 24Vdc, output: -10V…0V…+10Vdc;
• 02(89): 2 directional contacts in each axis;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single-axis 4 to 20mA Joystick Command Controller with Deadman and Rocker Switch

Product configuration: RT100-T-1-I1(10K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-return to center operation;
• 1: single axis movement (default: Y axis);
• I1: input: 24Vdc, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02(89): 2 directional switches (forward/backward) in Y axis;
• HD15-BT1: HD15 grip handle with 1 deadman trigger and rocker switch;
• QTOT: rocker switch;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single Axis 4mA…20mA Joystick with Spring Return to Neutral to Control VSD Speed

Product configuration: RT200-TS-I2(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: self-centering with zero interlock (lift to release the grip);
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 03: 3 normally open contacts in Y axis;
• 589: neutral, up and down contacts signal;
• HD5: joystick grip with zero interlock ((lift to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis Joystick Controller for Crane/Hoist Control with Center Tapped Potentiometer

Product configuration: RT300-TS-2-L-P1(10K)-4(2)-HD39-M5

• RT300: RunnTech RT300 series crane/hoist joystick (command controller);
• TS: spring return to center with zero interlock;
• 2: Y/X axis plus (+) direction movement;
• L: switch assembled horizontal;
• P1: input: 0…36Vdc, output: 0…36Vdc (0%…100%);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap (with dead zone);
• 4(2): 4 steps each direction, (2): contacts arrangement;
• HD39: grip with mechanical zero interlock (lift to release the grip);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Multi-Axis Joystick Control-handle with Knob Solid for Electro-hydraulic Applications

Product configuration: RT100-T-3-P1(10K)-02(89)-HD1-M2 (special wire drawing)

• RT100: RunnTech 100 series industrial joystick controller;
• T: Spring return in 0 position;
• 3: dual axis omnidirectional movement;
• P1: 0%…100%Vdc output;
• 10K: 10K ohm center tapped potentiometer;
• 02(89): 2 directional switches in each axis;
• HD1: grip handle without pushbutton;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

RunnTech 3 (XYZ) Axis CANbus Industrial Joy Stick with On/off Buttons for Electric Boat Control

Product configuration: RT02-T-3-HV1-02(89)-HD10b7-BT2②③R-[W100L-HV1]-M6-CAN2.0

• RT02: RunnTech RT02 series heavy duty joystick controller;
• T: spring return to center (self-centering);
• 3: dual axis, omnidirectional movement;
• HV1: Hall effect technology;
• 02(89): 2 directional contacts in each axis;
• HD10b7-BT2②③R: grip with deadman trigger and 2 pushbuttons;
• W100L-HV1: proportional thumbwheel to achieve 3rd axis control;
• M6: mounting dimension: 76x76mm, central hole: 92mm;
• CAN2.0: CAN 2.0 communication protocol.
