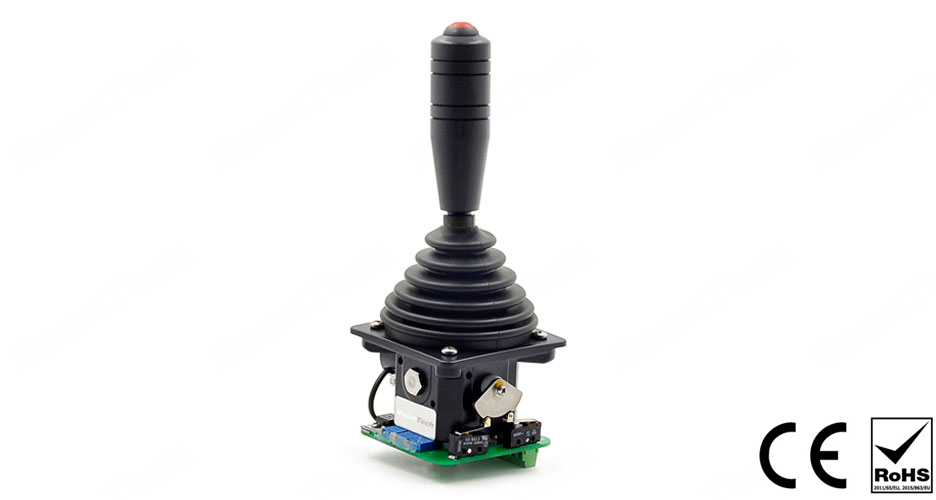

RunnTech RT100 Series Single-axis Movement DC5V (hall sensor) Joystick Controller

Product configuration: RT100-T-1-HV2-02(89)-HD4-BT1BL-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 1: single axis movement;
• HV2: hall sensor, input: DC 5V, output: 0.5V…2.5V…4.5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick grip handle model;
• BT1BL: 1 blue self-resetting push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

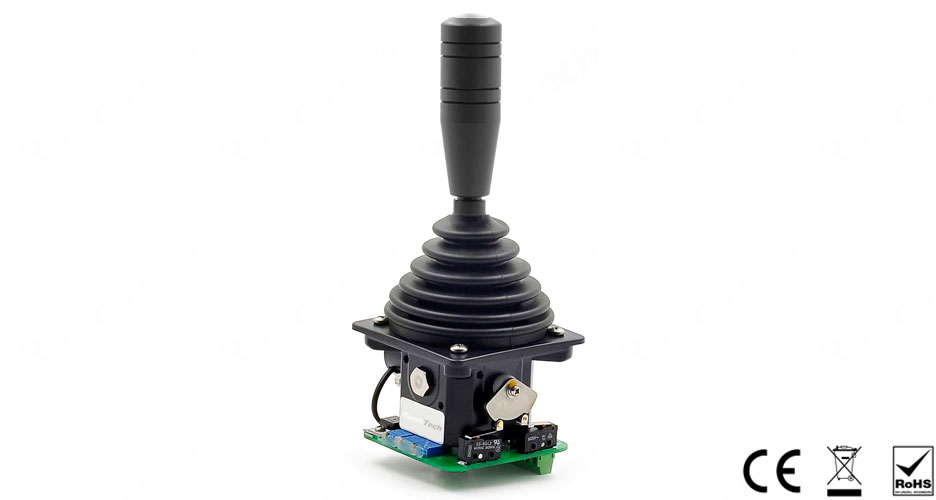

RunnTech Multi-axis DC 24V Supply 10Kohm Potentiometer Joystick Control Lever

Product configuration: RT100-T-2-V1(10K)-02(89)-HD4-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-return to center operation;
• 2: dual axis cross direction movement;
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick grip handle model;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

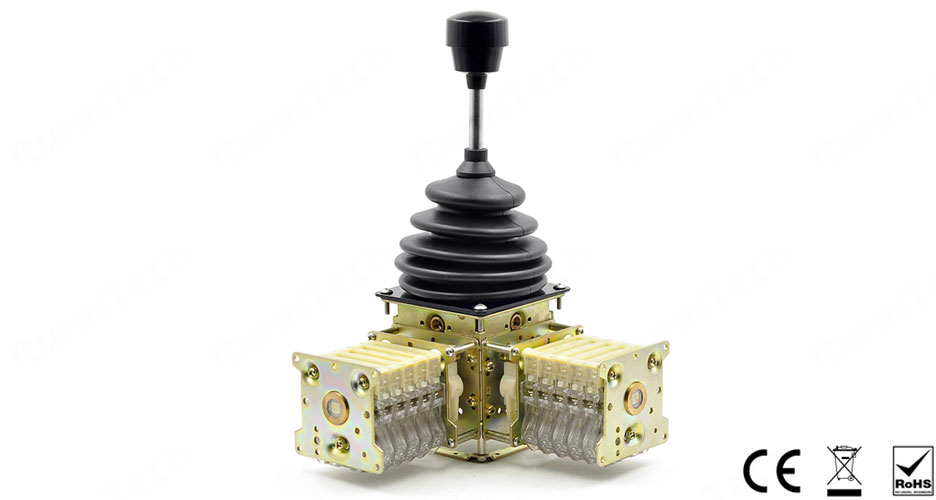

RunnTech RT300 Series Frictional Movement 6 Steps Crane Hoist Lift Machinery Joystick

Product configuration: RT300-MS-2-L-6(1)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• MS: friction hold and self-lock operation;
• 2: 2 axis, cross direction;
• L:switch assembled horizontal;
• 6(1): 6 steps each direction, (1): contact position;
• HD39: RunnTech joystick handle type;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Double 10V Analogue Output Spring Return Joystick for Hoist Operation

Product configuration: RT100-T-1-V2(10K)-03(589)-HD4-BT1R-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 1: single axis control;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 03: 3 directional switches;
• 589: closed position;
• HD4: RunnTech joystick grip handle;
• BT1R: 1 red self-resetting push button;

RunnTech 24V DC Supply Single Axis Spring Return 10 k Ohm Industrial Joystick

Product configuration: RT100-T-1-V1(10K)-02(89)-HD3-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 1: single axis control;
• V1: input: DC24V, output:-10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD3: RunnTech joystick HD3 grip handle diameter 24x24mm;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech RT300 Spring Return to Center Tower Hoist Crane Joy Stick Controller

Product configuration: RT300-T-3-L-4(1)-HD3

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: Self-resetting operation;
• 3: 2 axis, free movement;
• L: switch assembled horizontal;
• 4(1): 4 steps each direction, (1): closed position;
• HD3: RunnTech joystick handle type;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Spring Return to Center Dual Axis ±10V Potentiometer Joystick Controller

Product configuration: RT02-T-3-V1(10k)-01(5)-HD10b1-BS1②G-M6

• RT02: RunnTech 02 series joystick controller;
• T: spring return central position control;
• 3: X & Y axis free movement control;
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• HD10b1: RunnTech joystick grip with momentary trigger;
• BS1: 1 self-lock push button;
• M6: mounting dimension 76x76mm, central hole: 92mm;

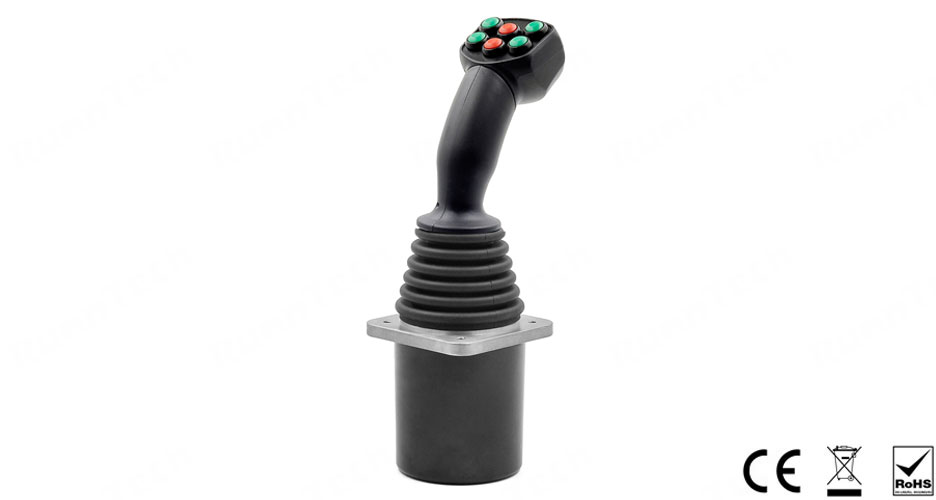

RunnTech Single Axis 10K Ohm Potentiometer with 1 Momentary Trigger Joystick

Product configuration: RT02-M-1b-P1(10K)-03(589)-HD10b6-BT6②③⑥⑦G④⑤R-M6

• RT02: RunnTech 02 series joystick controller;
• M: friction hold operation control;
• 1b: Y axis ;control;
• P1: simple 2 directions output;
• 10K: 10K ohm precision potentiometer;
• HD10b6: RunnTech joystick grip handle with Momentary trigger;
• BT6: 6 momentary thumb push button;
• M6: mounting dimension 76x76mm, central hole: 92mm;

RunnTech RT01 Series Joystick Installed in Training Simulator Machinery

RunnTech RT01 series joystick controller are widely used in training simulator machinery, such as, forklift operation teaching simulator, bridge crane operation teaching simulator, wheel loader simulator, excavator simulator system, excavator operation teaching instrument, Pressure road machine operating teaching instrument, Loader operating teaching instrument, aerial gondola operation teaching instrument, coal mining machinery simulator, yard crane operation teaching simulator, etc.

RunnTech 10V Analog Output Joystick Controller with 10K Ohm Precision Potentiometer

Product configuration: RT100-T-3-V1(10K)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 3: dual axis, full direction free movement control;
• V1: input: DC24V, output:-10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• HD15: RunnTech joystick HD15 grip handle with deadman button;
• M1: mounting dimension 56x56mm, central hole: 63mm;
