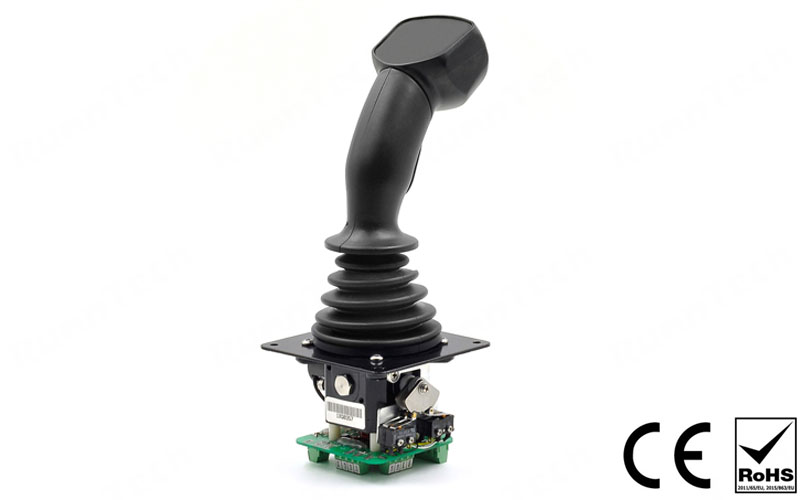

RunnTech Analog ±10V Output Joystick Lever: RT100-T-3-V1(5K)-HD10a-M7

Product configuration: RT100-T-3-V1(5K)-HD10a-M7

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 3: dual axis, full direction free movement control;
• V1: input: DC24V, output: -10V…0…+10V;
• 5K: 5K ohm precision potentiometer;
• HD10a: RunnTech joystick grip handle without deadman trigger;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

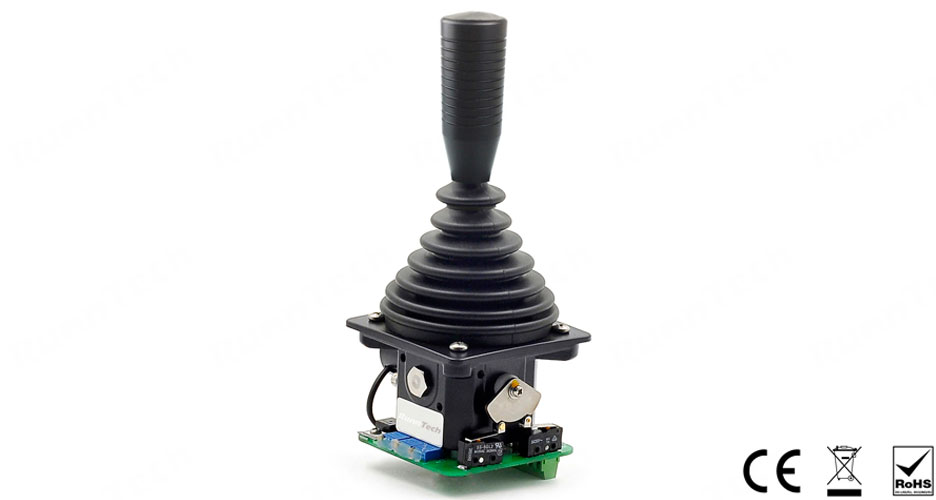

RunnTech Single Axis, Friction Hold, Free Movement Joystick Control Lever

Product configuration: RT100-M-1-Y03(589)-X2(1)-HD7-M1

• RT100: RunnTech RT100 series joystick controller;
• M: friction hold operation;
• 1: single axis, 2 directions movement control;
• Y03(589): Y axis 3 directional switches signals;
• X2(1): X axis 2 steps movement;
• HD7: RunnTech joystick grip model;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

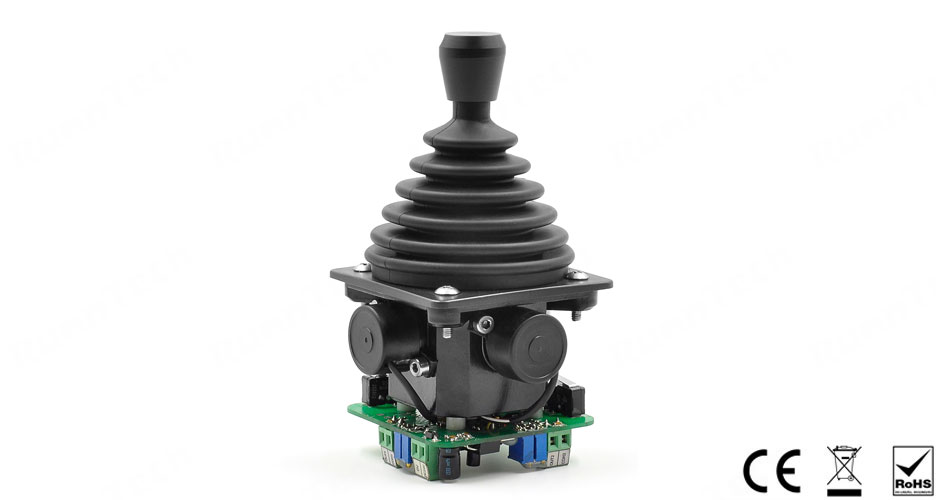

RunnTech RT100 Series Dual Axis 3 Steps Movement Joystick Controller

Product configuration: RT100-T-2-3(1)-HD3-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 2: dual axis, cross direction movement;
• 3(1): 3 steps control;
• HD3: RunnTech joystick grip handle;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Friction Hold and Self-lock Operation Crane Hoist Joystick Controller

Product configuration: RT300-MS-1-L-5(3)-HD18-BT1G-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• MS: friction hold and self-lock operation;
• 1: single axis control;
• L: switch assembled horizontal;
• 5(3): 5 steps each direction, (3): contact position;
• HD18: RunnTech joystick handle with self-lock;
• BT1G: 1 green self-resetting push button;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Contactless DC 5V Hall 3 Axis with 1 Pushbutton Surveillance Joystick

Product configuration: RT600-T-2-03-HV2-HD12-BT1

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: self-resetting operation;
• 2: dual axis;
• 03: Y and X axis full direction, free movement;
• HV2: input: 5V, output: 0.5V…2.5V…4.5V;
• HD12: RunnTech joystick grip handle model;

RunnTech Dual Axis, Spring Return to Center, Hall Effect DC 5V Input Joystick Controller

Product configuration: RT01-T-2-HV1-HD10b6 BT5②③⑤G⑥⑦Y-BS1④R-M4

• RT01: RunnTech 01 series joystick controller;
• T: spring return to central operation;
• 2: dual axis joystick, cross direction movement;
• HV1: input: DC 5V, output: 0…2.5…5V;
• H10B6: RunnTech joystick grip with deadman button;
• BT5②③⑤G⑥⑦Y: 5 self-resetting push button;
• BS1④R: 1 self-lock push button;
• M4: mounting dimension 64x64mm, central hole: 84mm;

RunnTech Single Axis Hall Effect Contactless Precision Fingertip Control Joystick

Product configuration: RT600-T-1-01-HV1-HD14

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: self-resetting operation;
• 1: single axis;
• 01: Y axis movement;
• HV1: input: 5V, output: 0V…2.5V…5V;
• HD14: RunnTech joystick grip handle model;

RunnTech 2 Axis, Spring Return to Center, 3 Steps Joystick Controller

Product configuration: RT100-T-2-3(1)-HD1-BT1R-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 2: dual axis, cross direction movement;
• 3(1): 3 steps control;
• HD1: RunnTech joystick grip handle model;
• BT1R: 1 red self-resetting push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 24V Input Dual Axis 10K Conductive-plastic Potentiometer Joy Stick Control

Product configuration: RT100-T-2-V2(10K)-03(589)-HD4-BT1R-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 2: dual axis movement;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 03: 3 directional switches;
• 589: closed position;
• HD4: RunnTech joystick grip handle model;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech RT100 Series Single-axis Movement DC5V (hall sensor) Joystick Controller

Product configuration: RT100-T-1-HV2-02(89)-HD4-BT1BL-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 1: single axis movement;
• HV2: hall sensor, input: DC 5V, output: 0.5V…2.5V…4.5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick grip handle model;
• BT1BL: 1 blue self-resetting push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.
