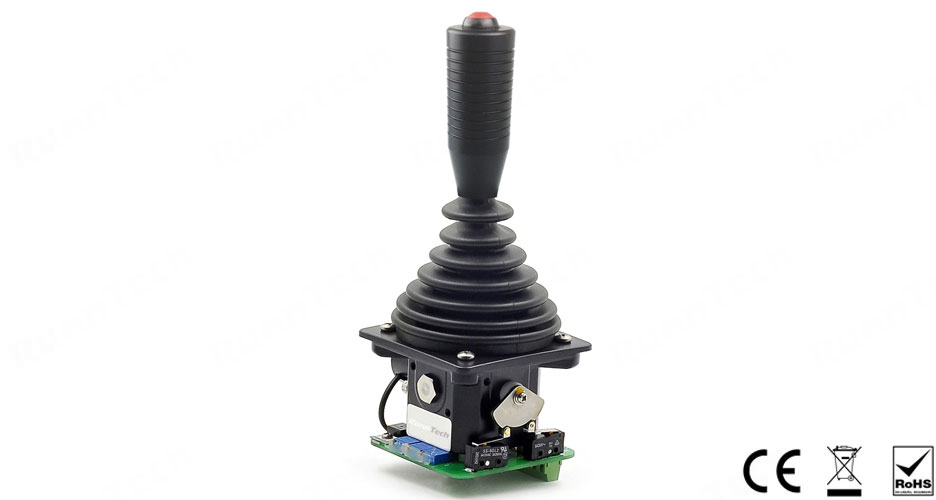

RunnTech Self-return Analogue 4~20mA Output Joystick with Center Tap Potentiometer

Product configuration: RT100-T-2-I2(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: joystick returns to center when handle is released (self-centering);
• 2: dual axis, cross limiting plate;
• I2: input DC 24V, output: 20mA…4mA…20mA;
• 10K: 2x5K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7: RunnTech HD7 grip with 1 push buttons;

Joystick Control Lever 7919040041 & 7919040042 for Linde Electric Forklift Truck

Fits to the following Linde models:
Linde 116 R14X/R16X/R17X/R17XHD, Linde 116-02 R14X/R16X/R17X/R17XHD
Linde 318 C90/5,C90/6,C90/7,C90/8, Linde 335-02 E14/E16/E18/E20-02
Linde 336-31 E25/E30, Linde 336-02/03 E20/E25/E30
Linde 346 E1820/E20P, Linde 359 H100/H120/H140/H150/H160/H180-T2/T3
Linde 386 E12/E14/E15/E16/E18/E20, Linde 391-01 H14/H16/H18/H20
Linde 392-01 H20/H25, Linde 393-01 H25/30/35
Linde 394-01 H40/H45/H50-500, Linde 396-01 H50/H60/H70/H80

RunnTech 1 Axis Potentiometer Friction Hold with 6 Momentary Push Buttons Joystick

Product configuration: RT100-M-1-V1(20K)-HD10a6-BT②②B③⑤⑦R⑥G-M7

• RT100: RunnTech 100 series joystick control lever;
• M: friction hold lever movement operation;
• 1: single axis, 2 directions movement control;
• V1: input: DC24V, output: -10V…0…+10V;
• 20K: 20K ohm precision potentiometer in each axis;
• HD10a: RunnTech joystick grip without deadman trigger;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

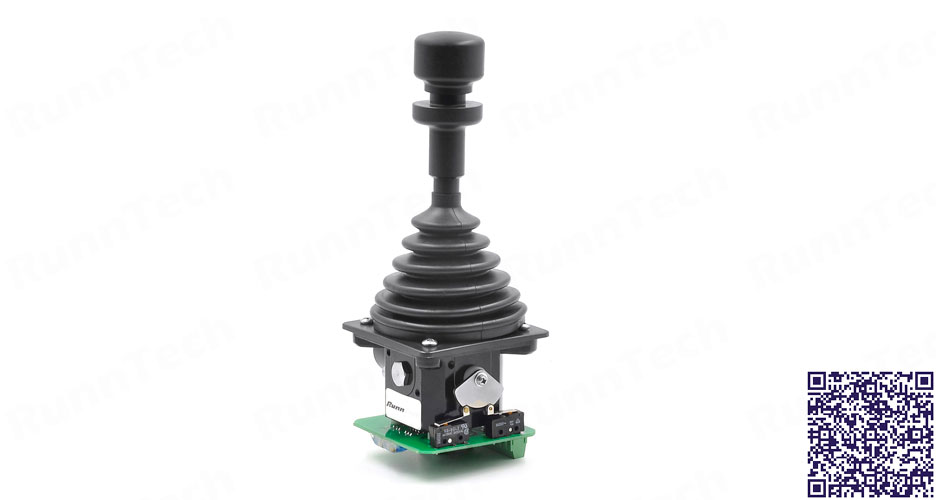

RunnTech DC 24V Friction Hold & Lock-in at 0 Position with Snap-in Terminals Joystick

Product configuration: RT100-MS-2-V2(5K)-02(89)-HD5-M1

• RT100: RunnTech RT100 series joystick controller;
• MS: friction hold & Lock-in at centre (zero) position;
• 2: dual axis cross movement;
• V2: input: DC 24V, output: +10V…0…+10V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: grip Lock-in at centre (zero) position;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

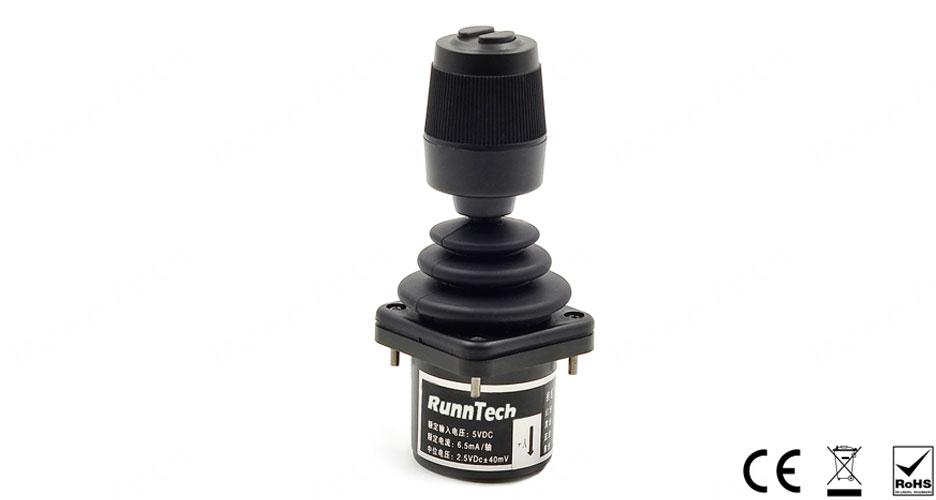

RunnTech Multi-axes Finger-positioning Control DC 5V with 2 Pushbutton CCTV Joysticks

Product configuration: RT600-T-3-03-HV1-HD12-BT2

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: spring return into the middle position;
• 3: 3 axis control;
• 03: Y and X axis full direction, free movement;
• HV1: input: DC 5V, output: DC 0V…2.5V…5V;
• HD12: RunnTech joystick grip handle model;
• BT2: 2 momentary thumb push buttons;

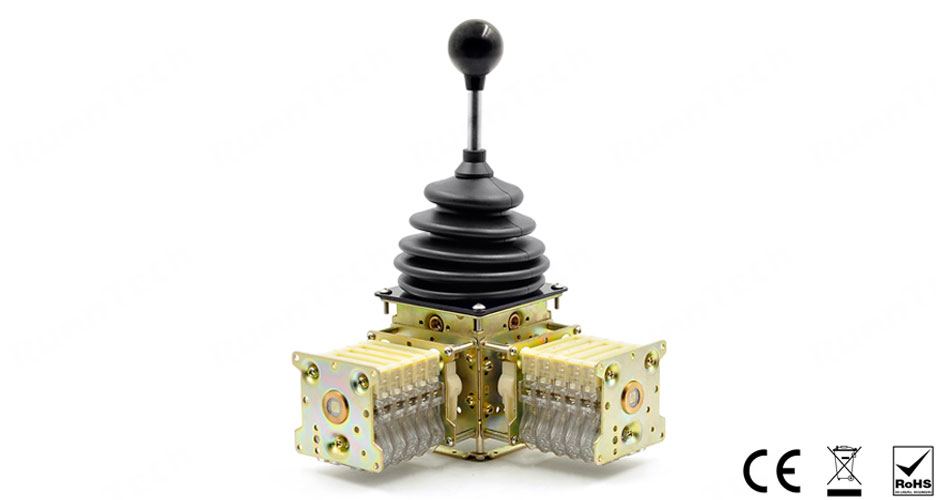

RunnTech Dual-axis Spring to Center Movement Joy Stick for Crane, Hoist and Winches

Product configuration: RT300-T-2-P1(10K)-4(2)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: axis are with spring return into the middle position;
• 2: 2 axis, cross limiting plate operation;
• L: switch assembled horizontal;
• 4(2): 4 steps each direction, (2): switch closed position;
• HD2: ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

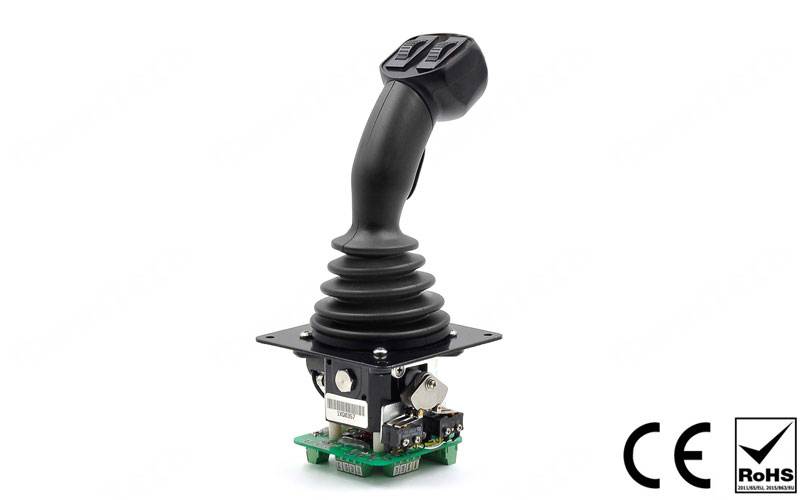

RunnTech 3 Axis Spring Return to Middle DC 24V Supply with 2 Thumbwheel Joystick

Product configuration: RT100-T-2-V1(10K)-02(89)-HD10a7-W100L-V1(H)-M7

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 2: dual axis, cross limiting plate movement control;
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10 kOhm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a7: RunnTech joystick grip handle without deadman trigger;
• W100L: thumbwheel controllers provide a three-axis control;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Self-centering 2 axis ±10V Proportional Joystick with Center Tap Potentiometer

Product configuration: RT100-T-3-V1(10K)-02(89)-HD7-BT1R-M2

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring self-return (self-centering);
• 3: dual axis, 360° free movement;
• V1: input DC 24V, output: -10V…0…+10V;
• 10K: 10 kOhm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7-BT1R: HD7 grip with 1 red self-resetting pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.

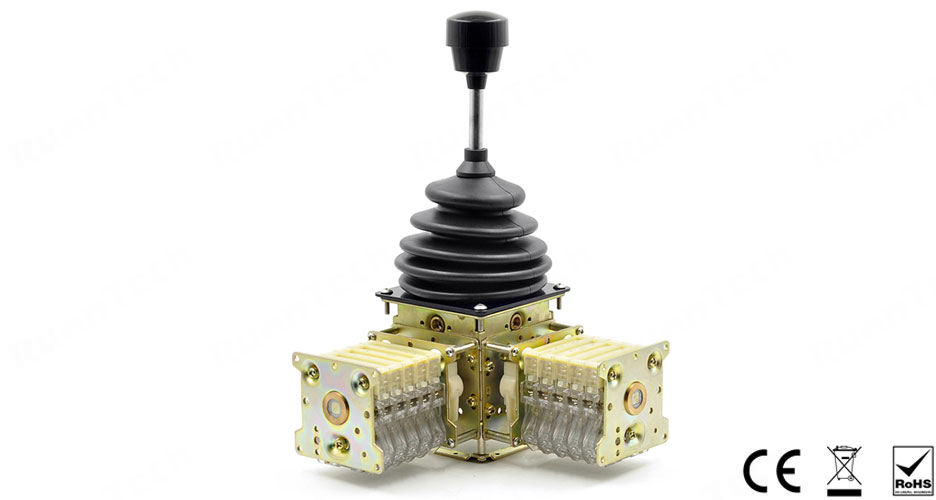

RunnTech Multi-axis Self-centering Joystick Controller for Crane, Hoist and Winches

Product configuration:RT300-TS-2-L-3(5)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• TS: self-centering and lock-in at centre (zero) position;
• 2: 2 axis, cross limiting plate operation;
• L: switch assembled horizontal;
• 3(5): 3 steps each direction, (5): contact arrangement;
• HD39: grip with latch for mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

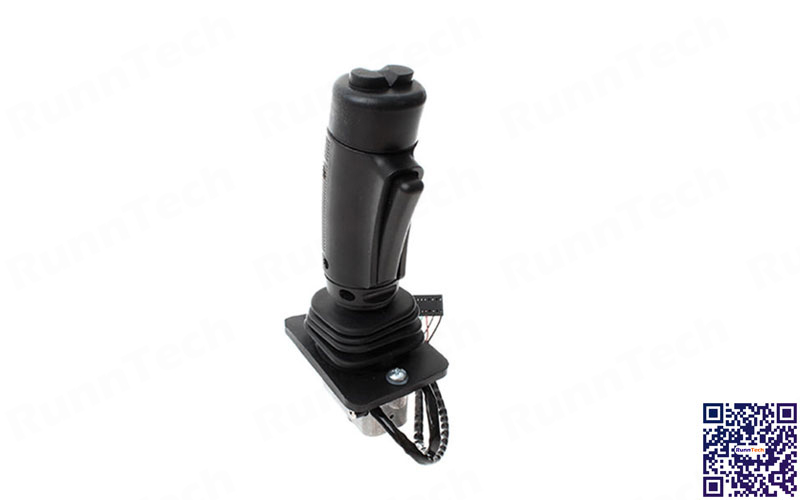

Genie GE-137634 Single-axis Joystick Controller for Traction

Genie part# GE-137634/JRG-1A12 fits to the following Genie models:
GR-12, GR-15, GR-20, GRC-12, GS-1530, GS-1532, GS-1930, GS-1932, GS-2032
GS-2046, GS-2632, GS-2646, GS-2646 AV, GS-2646 AV 35, GS-2669 DC, GS-3232, GS-3246
GS-3369 DC, GS-4047, GS-4069 DC, QS-12R, QS-12W, QS-15R, QS-15W, QS-20R, QS-20W
