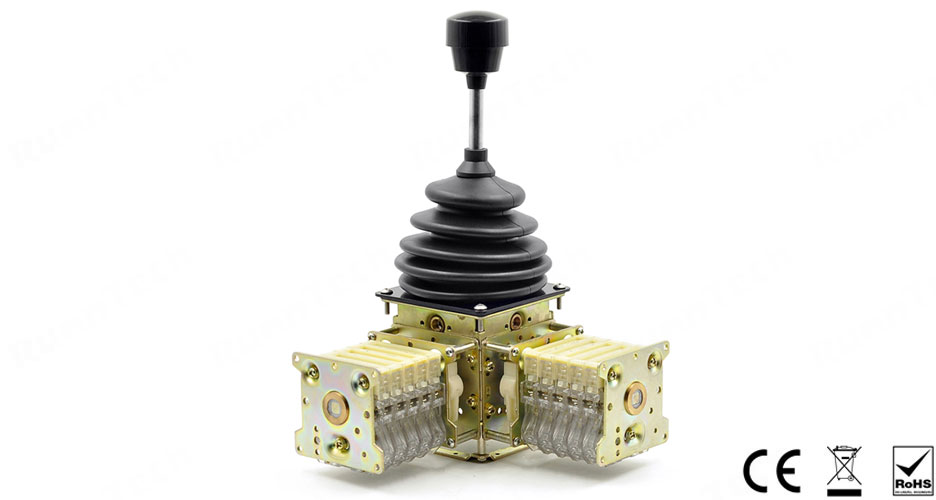

RunnTech RT300 Spring-return to Center 4 Steps Crane, Steel Mills or Mining Joystick

Product configuration: RT300-T-3-L-4(1)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring-return to center operation;
• 3: 2 axis, free movement;
• L:switch assembled horizontal;
• 4(1): 4 steps each direction, (1): closed position;
• HD39: RunnTech joystick handle type;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

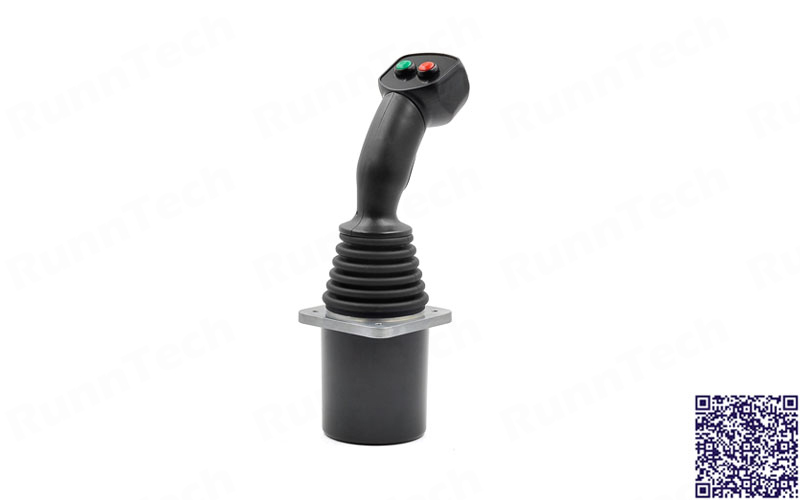

RunnTech 2-axis, 0 to 5V Output Joystick Lever with 2 Push Buttons for Flight Simulator

Product configuration:RT01-T-2-V6(10K)-02(89)-HD10b2-BT2③R②G-M4

• RT01: RunnTech 01 series joystick controller;
• T: spring return device (automatically return to center);
• 2: dual axis joystick, cross direction movement;
• V6: input: 24VDC, output: 0…+5VDC;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• H10b2: RunnTech joystick grip with deadman button;
• BT2③R②G: 2 self-resetting push button;
• M4: mounting dimension 64x64mm, central hole: 84mm;

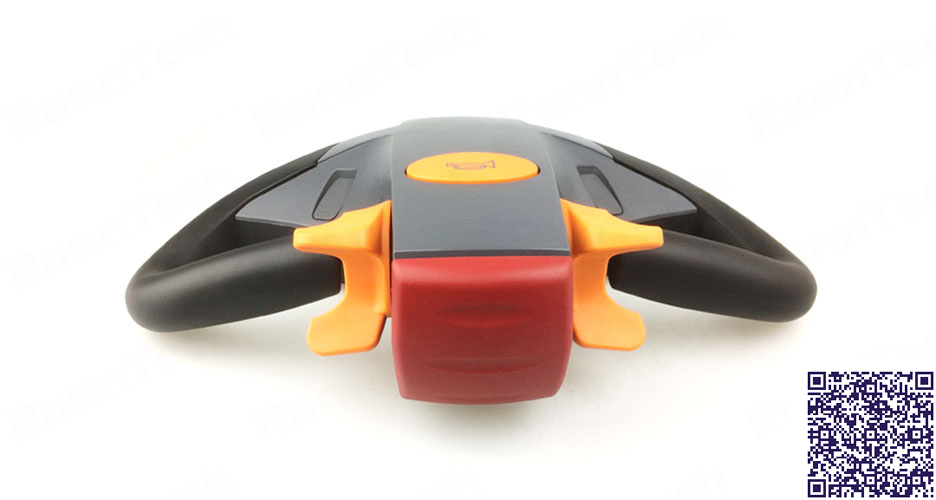

RunnTech Hall Effect Multi-function Steering for Electric Stacker, Trolleys or Drivetrain

Product configuration: H100-G-Q2-L-T

• H100: RunnTech H100 series Hall effect multi-function steering (tiller head);
• G: turtle speed button;
• Q2: 2 rocker switch;
• L: horm button;
• T: speed controller (throttle);
• Input voltage: 5 to 48VDC;
• RunnTech H100 series multi-function steering mainly used in electric-vehicle applications, like: electric pallet truck, pedestrian industrial truck, transport trolleys, cleaning machinery, etc.

RunnTech 2-axis Hall Effect DC5V Friction Clutch Operation Joystick Lever for Draw-works

Product configuration: RT100-M-1-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• M: friction clutch operation;
• 1: single axis movement control;
• HV1: input: DC5V, output: 0…2.5…5V rail to rail;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 1-axis Friction Clutch (holds position) Potentiometer Joystick Control Lever

Product configuration: RT100-M-1-P2(10K)-02(12)-HD4-M1

• RT100: RunnTech RT100 series joystick controller;
• M: friction clutch (holds position) ;
• 1: single axis operation;
• P2: ordinary one direction output;
• 02: 2 normally open contacts in each axis;
• 12: contacts @ -32° to -29° or -29° to +32°;
• HD4: grip Lock-in at centre (zero) position;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

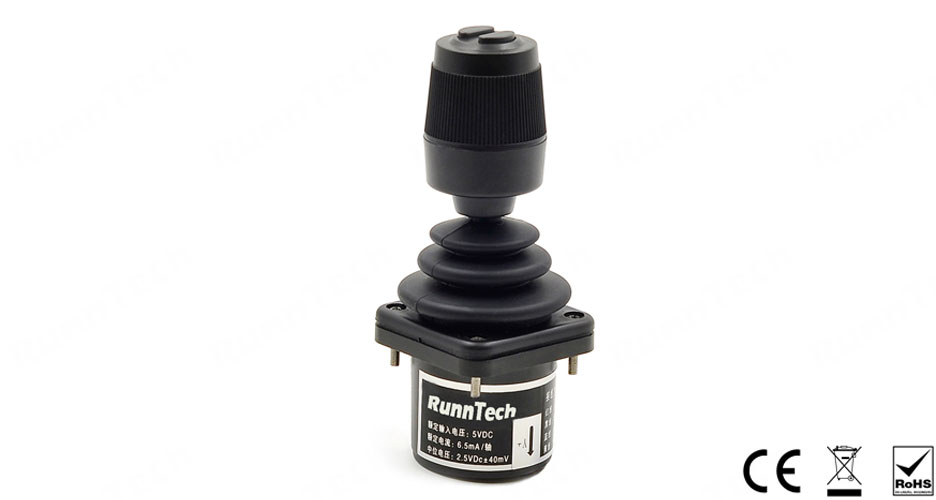

RunnTech 3-Axis DC 5V Finger-positioning Joystick for Medical or Optical Instrument

Product configuration: RT600-T-3-03-HV1-HD12-BT2

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: spring return device (automatically return to center);
• 3: 3 axis control;
• 03: Y and X axis full direction, free movement;
• HV1: input: DC 5V, output: DC 0V…2.5V…5V (rail to rail);
• HD12: RunnTech joystick grip handle model;
• BT2: 2 momentary thumb push buttons;

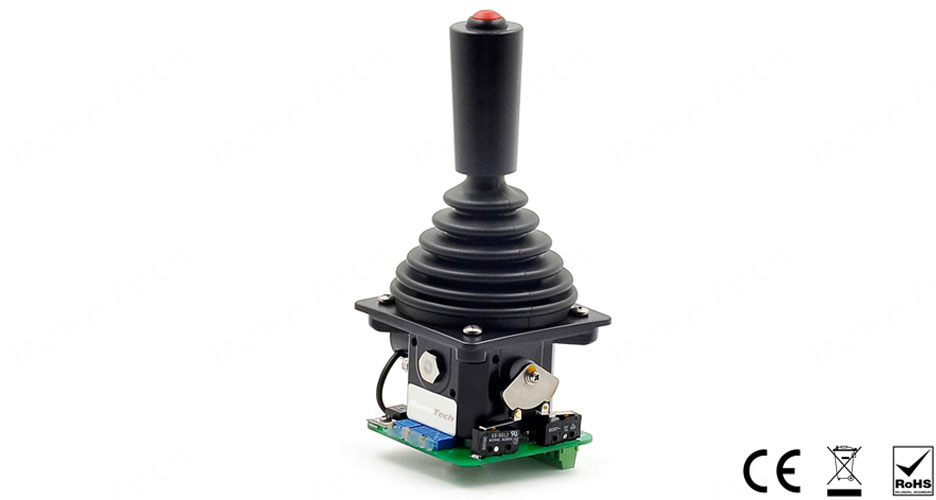

RunnTech Hall Effect DC5V 2 Axis Self Centering Joystick Lever for CNC Turning Machinery

Product configuration: RT100-T-3-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 3: dual axis, free movement operation;
• HV1: input: DC5V, output: 0…2.5…5V rail to rail;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

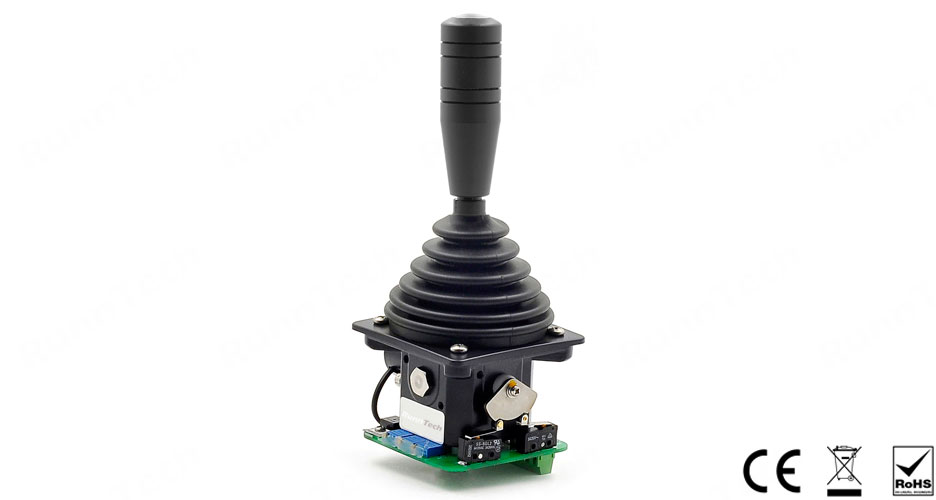

RunnTech DC24V Single Axis 2x5K Potentiometer Joy Stick for Rolling Mill Control Desk

Product configuration: RT100-T-1-V2(10k)-02(89)-BT1-HD4-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 1: Y axis movement;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick handle with 1 push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

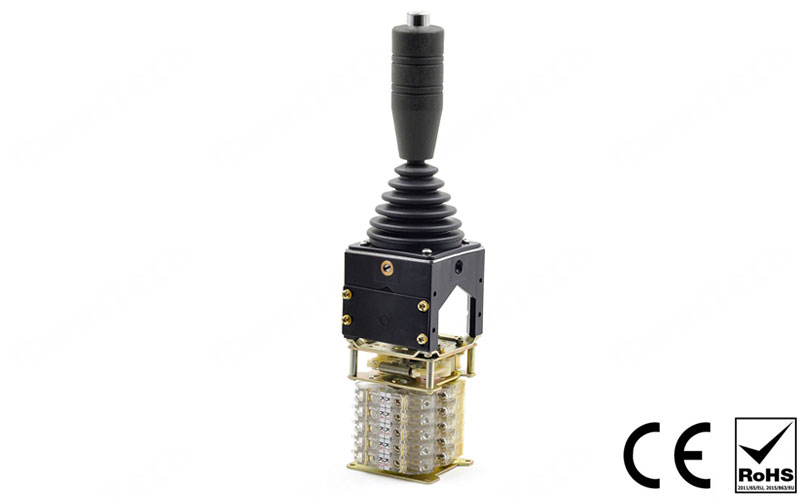

RunnTech Single Axis Frictional Movement 6 Steps Crane Hoist Lift Joy Stick Lever

Product configuration: RT300-MS-1-I-6(1)-HD6-M3

• RT300: RunnTech RT300 series crane joystick (master controller);
• MS: friction hold and self-lock operation;
• 1: single axis movement;
• I: switch assembled vertical;
• 6(1): 6 steps each direction, (1): closed position;
• HD6: RunnTech joystick handle with push to release button;
• M3: mounting dimension: 130x110mm, central hole: 64mm.

RunnTech Single-axis Friction Hold at Any Point Joystick Lever with 2x5K Potentiometer

Product configuration: RT100-M-1-I1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• M: frictional movement to both direction from center;
• 1: single axis operation;
• I1: input: DC24V, output: 4mA…12mA…20mA;
• 10K: 2*5K ohm precision center tapped potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.
