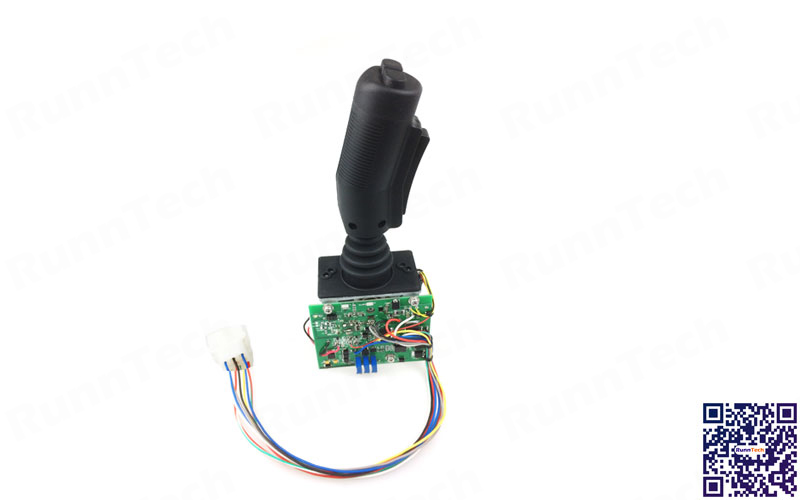

RunnTech Develops New Joystick for Skyjack Aerial Lift ( SJ-159108 & SJ-123994)

After our technical team’s efforts, we are proud to announce the successful development of the new single axis drive steering proportional joystick controller kits. Fits for SkyJack’S Compacts, Conventional, And Vertical Mast Series Scissor Lifts. Models Include, But Not Limited To 3219, 3226, 4626, 4832, And Sj 16’S.

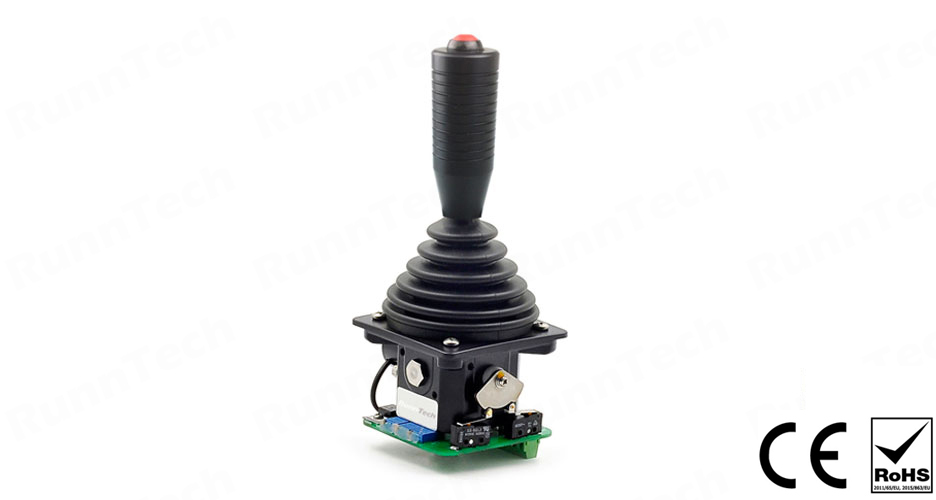

RunnTech Single Axis Joystick with Spring Return to Center & Analogue 4~20mA Output

Product configuration: RT100-T-1-I2(5K)-02(89)-HD7-BT1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: joystick returns to center when handle is released (self-centering);
• 1: single axis (Y axis);
• I2: input DC 24V, output: 20mA…4mA…20mA;
• 5K: 5K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7-BT1: RunnTech HD7 grip with 1 push buttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual-axis Spring Return to Center 10V Output Joystick Lever for Mining Hoist

Product configuration: RT100-T-2-V1(10K)-02(89)-HD1-BT1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center operation;
• 2: double axis, cross limiting plate operation;
• V1: input: DC24V, output: -10V…0…+10V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: HD1 grip with 1 red momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

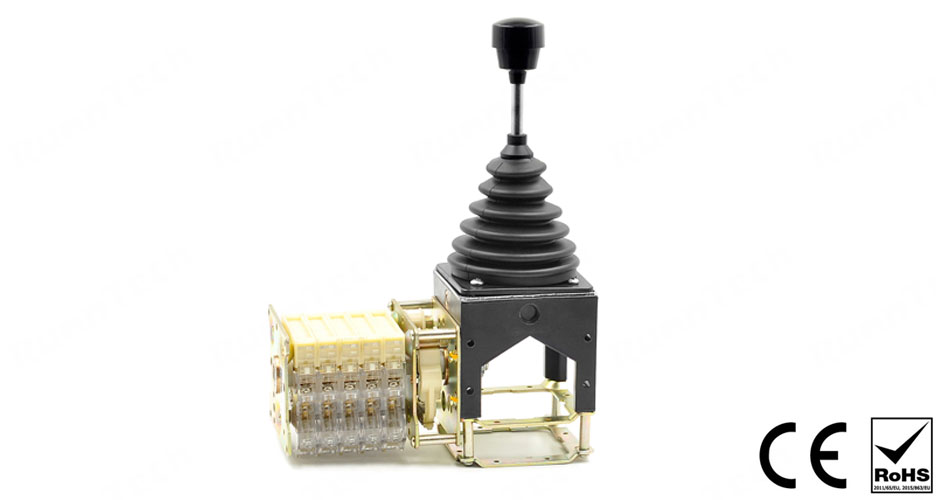

RunnTech Spring Return to Center Joy Stick Controller with 1 Push Button for Hoist Crane

Product configuration: RT300-T-3-L-4(9)-HD7-BT1-M2

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 3: 2 axis, free movement;
• L: switch assembled horizontal;
• 4(9): 4 steps each direction, (9): contacts arrangement;
• HD7-BT1: joystick handle top with 1 push button;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

RunnTech 2-axis Spring-return to Center with Cobra-head Shaped Joy Stick Controller

Product configuration: RT100-T-3-P1(10K)-HD10b5BT4②③⑤⑥R④BL-M7

• RT100: RunnTech 100 series joystick controller;
• T: spring-return to center;
• 3: dual axis joystick, full direction free movement;
• P1: simple 2 directions output;
• 10K: 10K ohm precision potentiometer with solid center tap;
• H10b5: grip with deadman trigger;
• BT4②③⑤⑥R④BL: 4 self-resetting & 1 self-lock push button;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

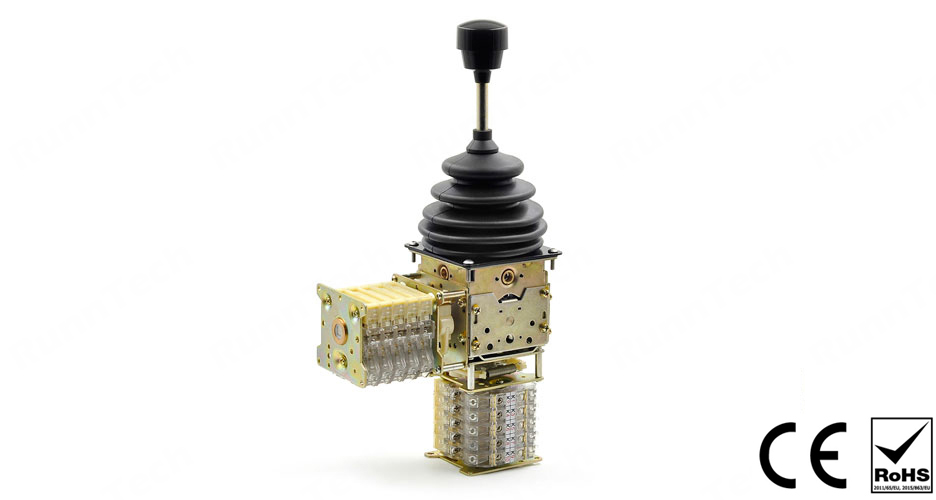

RunnTech Friction Hold & Mechanical-interlock Joystick for Underground Mine Hoist

Product configuration: RT200-MS-1-P2(10K0-01(1)-HD7-M1

• RT200: RunnTech 200 series single axis joystick controller;
• MS: friction hold with mechanical zero interlock;
• P2: simple one direction output;
• 10K: 10K ohm precision potentiometer;
• HD7: RunnTech joystick grip with waterproof push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Tiller Head Steering Handle for Pedestrian Truck or Cleaning Machinery

Product configuration: H100-G-L-T

• H100: RunnTech H100 series pallet truck control handle (tiller head);
• G: turtle speed button;
• L: horm button;
• T: speed controller (throttle);

RunnTech 2-Axis Hall DC5V Spring-return Joystick for Measurement or Medical Devices

Product configuration: RT600-T-2-02-HV1-HD12-BT1

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: spring return device (automatically return to center);
• 2: 2 axis control;
• 02: 4 directions cross limit plate movement;
• HV1: input: DC 5V, output: DC 0V~2.5V~5V (rail to rail);
• HD12: RunnTech joystick grip handle model;
• BT1: 1 momentary thumb push buttons;

RunnTech F200 Series Accelerator Foot Pedal for Electronic Throttle Control Systems

• Hall sensor;
• 5-48V wide output, 0-5V, 0-10V modular control;
• Pedal Force: Initial Load 9N min, Full Throttle 33N max;
• F200 Series Accelerator Foot Pedal is mainly used in hydraulic proportional control and electronic throttle control systems (can replace ComeSys: FZ3-122-131 for Curtis controller);

RunnTech Hall Friction Clutch Movement Joystick for Proportional Hydraulic Systems

Product configuration: RT100-M-1-HV2-02(89)-HD10b4-BT4②③④⑤B-M7

• M: friction hold operation;
• 1: single axis, 2 directions movement control;
• HV2: input: 5V, output: 0.5…2.5…4.5V (Hall);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b4: RunnTech HD10b4 grip with deadman button;
• BT4②③④⑤B: 4 self-resetting push buttons;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;
