RunnTech Single-axis Self-centering Joystick Controller for Mining Hoist and Winches

Product configuration: RT300-TS-1-L-4(6)-HD39-M2

• RT300: RunnTech RT300 series crane joystick (master controller);
• TS: self-centering and lock-in at centre (zero) position;
• 1: single axis movement;
• L: switch assembled horizontal;
• 4(6): 4 steps each direction, (6): contacts arrangement;
• HD39: grip with latch for mechanical zero interlock;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

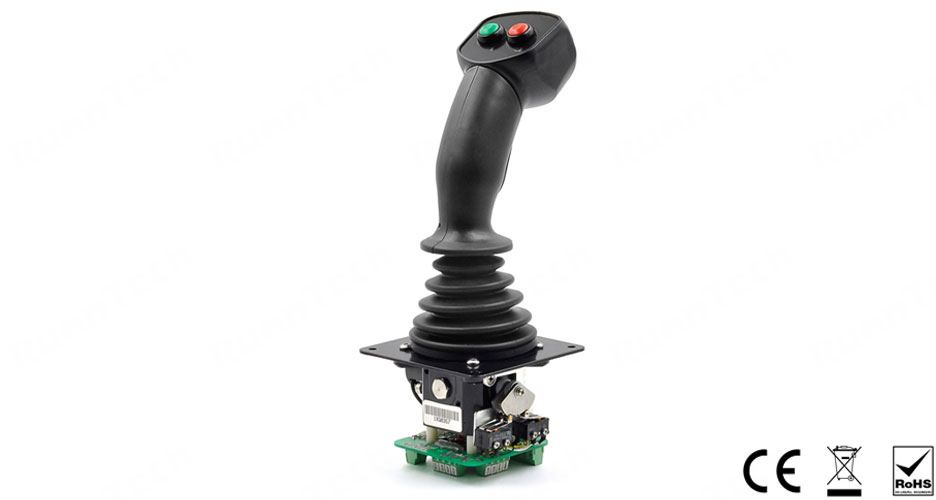

RunnTech Single Axis Hall Effect DC5V Joystick Lever for Ports & Offshore Simulations

Product configuration: RT100-M-1-HV2-02(89)-HD10b2-BT1③G-BS1②R-M7

• RT100: RunnTech 100 series joystick controller;
• M: friction hold operation;
• 1: single axis movement;
• HV2: DC5V, output: 0.5V…0…4.5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b2: grip with deadman & 2 button;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

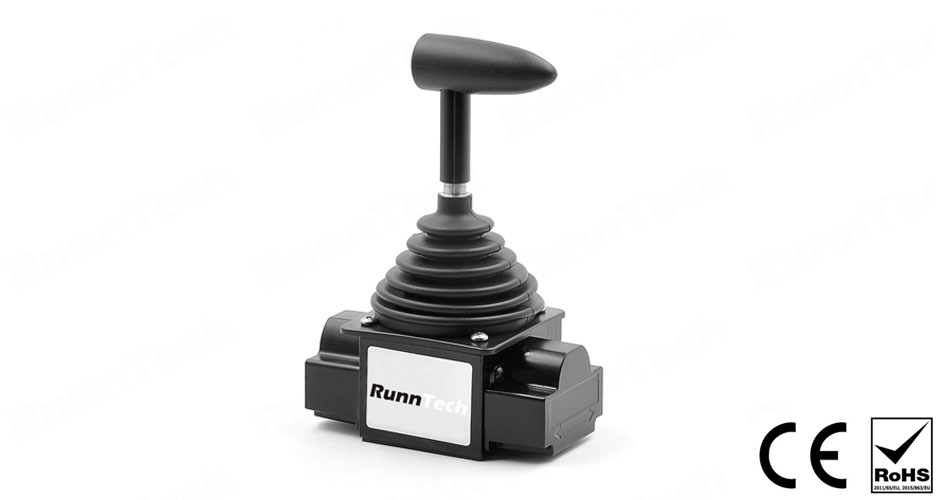

RunnTech Single Axis Friction Hold & Lock-in at Center Joystick with Push to Release Grip

Product configuration: RT200-МS-V2(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis joy Stick;
• MS: friction hold & Lock-in at centre (zero) position;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• T: T shape joystick grip (push to release);
• M1: mounting dimension 56×56mm, central hole: 63mm.

RunnTech 0 to 10V Analog Ouput Friction Operation Joystick for Mining Hoist Machine

Product configuration: RT200-M-1-V5(10K)-03(589)-HD7-BT1R-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold operation;
• V5: 24VDC input, 0…+10V DC output;
• 03: 3 closed positions;
• 589: closed at 5: ±3°, 8: 3° to 32°, 9: -3° to -32°;
• HD7: RunnTech joystick grip, top with push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

2017 Labour Day Notice

Please be informed that RunnTech will temporarily break for 2017 Labour Day holidays from 29^th April to 1^st May. All our staffs will resume to normal operation from 2^nd May.

Happy Labour Day!

RunnTech Mechanical Spring Return to Center 4-20mA Output Single Axis Joystick Lever

Product configuration: RT200-TS-1-I2(10K)-02(89)-HD6-M1

• RT200: RunnTech 200 single axis joystick;
• TS: mechanical spring return to center and lock-in center;
• I2: input DC24V, output: 4mA…20mA;
• 10K:10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD6: press to release joystick;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction-hold 6 Steps Joystick Controller for Hoist and Winches

Product configuration: RT300-MS-1-L-V1(10K)-6(6)-HD39-M5

• RT300: RunnTech RT300 series joystick controller;
• MS: friction hold & self-lock-in at center position;
• 1: single axis movement;
• L: switch assembled horizontal;
• V1: input DC24V, output -10V…0…+10V DC;
• 6(6): 6 steps each direction, (6): contact arrangement;
• HD39: grip with latch (pull to release);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Multi-axis Spring Return to Center Joystick with 10K Potentiometer for CNC

Product configuration: RT100-T-3-P1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 3: dual axis, full direction, free movement operation;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

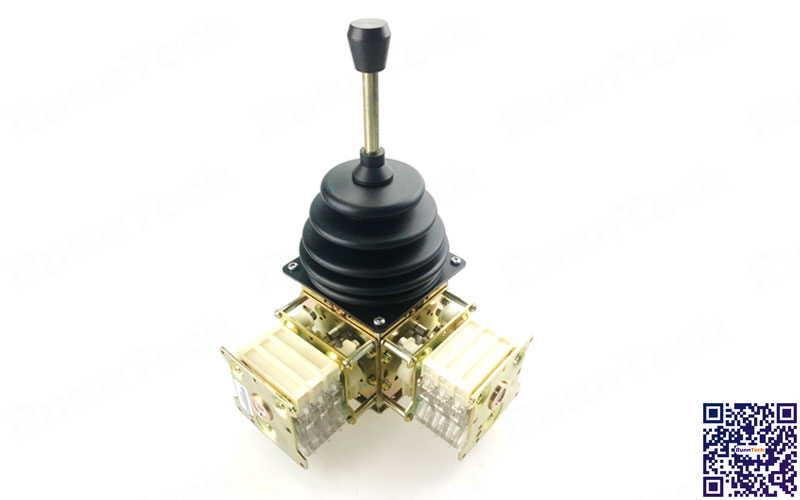

RunnTech Friction Clutch & Lock-in at Center 0 Position Mining Hoist Joystick Controller

Product configuration: RT200-MS-1-P2(10K)-03(123)-HD6-M1

• RT200: RunnTech 200 series joystick controller;
• MS: friction hold with self lock;
• P2: simple 1 direction output;
• 10K: 10K ohm precision potentiometer;
• 02: 2 switches signal;
• 89: closed position;
• HD6: RunnTech joystick grip, top with self lock button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

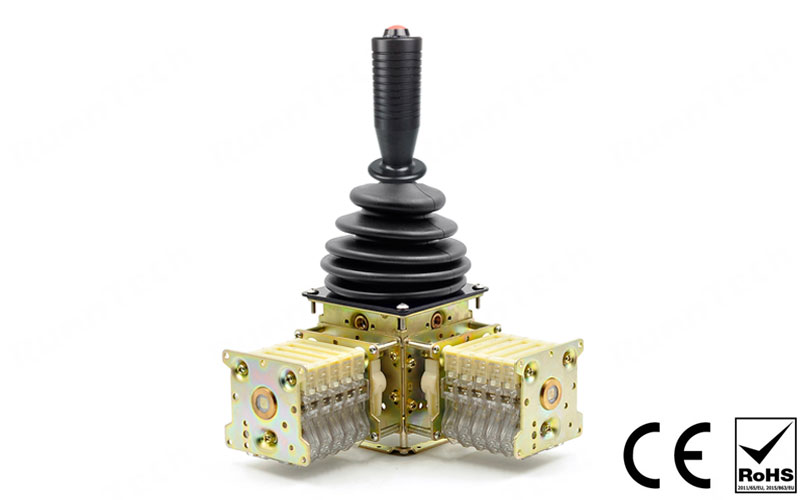

RunnTech Multi-axis 0V to 5V Output Hoist Crane Joystick Mechanical Zero Interlock

Product configuration: RT300-T-3-I-V6(5K)-3(5)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 3: 2 axis, full direction free movement;
• I: switch assembled vertical;
• 3(5): 3 steps each direction, (5): contact arrangement;
• HD39: joystick handle with latch for mechanical zero interlock;
• M5: mounting dimension, 85x85mm, central hole 78mm;
