RunnTech 200 Series Dual 5V Output Friction Hold Joystick Control Lever Drilling Rig

Product configuration: RT200-M-1-V4(10K)-02(89)-HD7-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction clutch operation (default: Y axis);
• V4: 24VDC input, +5V…0…+5V DC output;
• 02: 2 closed positions;
• 89: closed at 1: 0~3°, 2: 3° to 60°;
• HD7: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Dual Axis -5V & +5V Analog Output with Full Free Range Motion Joystick Lever

Product configuration: RT100-T-3-V3(10K)-02(89)-HD8-M1

• RT100: RunnTech RT100 series joystick controller;
• T: spring return device (automatically return to center);
• 3: Y & X axis with full free range motion;
• V3: input: DC24V, output: -5V…0…+5V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Dual Axis 4 to 20mA Y & X Axis with Full Free Range Motion Joystick Controller

Product configuration: RT100-T-3-I2(5K)-HD7-BT1R-M1

• RT100: RunnTech RT100 series joystick controller;
• T: spring return device (automatically return to center);
• 3: Y & X axis with full free range motion;
• I2: I2: input DC 24V, output: 20mA…4mA…20mA;
• HD7-BT1R: RunnTech joystick grip with 1 push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

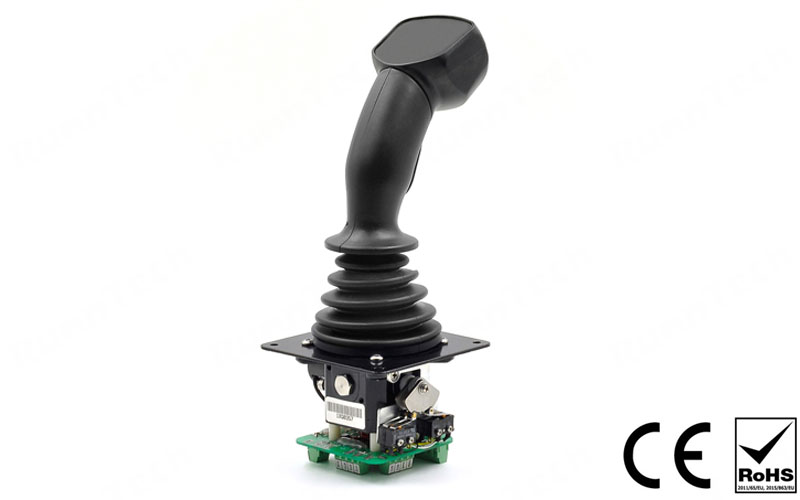

RunnTech Multi-axis Spring Return to Center with Hall Sensor & Deadman Trigger Joystick

Product configuration: RT100-T-3-HV1-03(589)-HD10b-M7

• RT100: RunnTech RT100 series joystick controller;
• T: spring return to center self-centering;
• 3: dual axis, free movement;
• HV1: Hall sensor input: DC 5V, output: 0…2.5…5V;
• 02: 2 directional contacts;
• 89: closed position;
• HD10b: RunnTech joystick grip with deadman trigger;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm.

RunnTech RT100 Friction Hold Joystick Controller with Deadman Trigger & Rocker Switch

Product configuration: RT100-M-1-Y-V2(1K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech RT100 series joystick controller;
• M: frictional hold operation;
• 1: single axis movement (Y axis);
• V2: input: DC 24V, output: dual 10VDC;
• 1K: 1K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD15-BT1R: RunnTech joystick grip with deadman trigger;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 3-Axis Hall Effect Compact Analog to Digital Output Joystick with RS-232 Port

Product configuration: RT600-T-3-03-HV1-HD12-BT2-RS232

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: automatically return to center position;
• 3: 3 axis control;
• 03: Y and X axis, free movement;
• HV1: input: DC 5V, output: DC 0V…2.5V…5V (rail to rail);
• RS232: analog output is converted to digital output with RS232;
• HD12: RunnTech joystick grip model;
• BT2: 2 momentary thumb push buttons;

RunnTech Multi-axis Hall Effect Precision Fingertip Joystick for Metal Cutting Machines

Product configuration: RT600-T-2-03-HV3-HD14

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: self-resetting operation;
• 2: dual axis;
• 03: Y & X axis free movement;
• HV3: input: 5V, output: 1.0V…2.5V…4.0V;
• HD14: RunnTech joystick grip handle model;

RunnTech Multi-axis Self Centering Potentiometer Joystick for Automation Equipment

Product configuration: RT100-T-3-I1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 3: dual axis, free movement operation;
• I1: input: DC24V, output: 4mA…12mA…20mA;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis 2 Steps Friction Hold Joystick with 1 Push Button for Hoist Industry

Product configuration: RT200-M-1-05(13589)-HD1-BT1R-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold with self lock;
• 05: 5 contacts signal;
• 135889: contacts closed position (2 steps both forward and backward);
• HD1: RunnTech joystick grip;
• BT1R: 1 red self-return push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Spring Return to Center Y Axis Joystick Control with Signal in Center Position

Product configuration: RT100-T-1-V1(10K)-01(5)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 1: single axis movement operation (Y axis, default);
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 03(589): 3 contacts in Y axis;
• M1: mounting dimension 56x56mm, central hole: 63mm.
