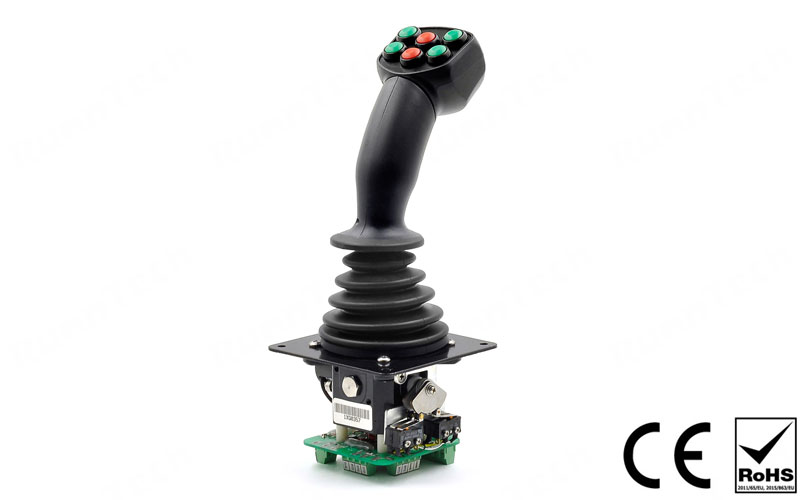

RunnTech 2-axis 4-20mA Current Output 360° Control Joystick with 6 Momentary Button

Product configuration: RT100-T-3-I2(10K)-02(89)-HD10b6-BT6②③G④⑤Y⑥⑦R-M7

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 3: dual axis, cross direction movement control;
• I2: input: DC24V, output: 4…20mA;
• 10K: 10K ohm precision potentiometer;
• HD10b: RunnTech joystick grip handle with deadman trigger;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Single-axis Friction Clutch Joystick Controller for Railway Engineering Vehicles

Product configuration: RT200-MS-1-P1(10K)-03(589)-T-M1

• RT200: RunnTech 200 series joystick controller;
• MS: friction hold with self lock at center;
• P1: simple 2 directions output;
• 10K: 10K ohm precision potentiometer;
• 03(589): 3 switches signal;
• T: T shape joystick grip with push to release;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis Joy Stick Lever with 4~12~20mA Signal for Valve Automation Equipment

Product configuration: RT100-T-2-I1(10K)-02(13)-HD8-M1

• RT100: RunnTech 100 series industrial joystick;
• T: joystick returns to center when grip is released (self-centering);
• 2: dual axis 4 directions movement;
• I1: input DC 24V, output: 4mA…12mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02(13): 2 directional contacts in each axis;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech 2 Axis Spring Return Joy Stick Lever with 2 Micro Switch for Start and End Point

Product configuration: RT100-T-3-P1(5K)-02(89)-HD1-BT1R-M2

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center;
• 3: dual axis 360° free movement;
• P1: Simple two electrical output for every positions;
• 02(89): 2 micro switch for start/end point in each axis;
• 5K: 5K ohm precision potentiometer;
• BT1R: 1 momentary push button;
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Dual Axis 360° Free Movement Joystick with Spring Return to Middle Position

Product configuration: RT100-T-3-P1(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: joystick returns to center when handle is released (self-centering);
• 3: dual axis 360° free movement;
• P1: simple electrical output for every positions;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7: RunnTech HD7 grip with 1 push buttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 1 Axis Deadman Type Joystick Spring Return to 0 Position for Solenoid Valves

Product configuration: RT100-T-1-V1(10K)-03(589)-HD4-BT1R-M1

• RT100: RunnTech 100 series joystick lever;
• T: spring return to center when released;
• 1: single axis operation;
• V1: input: DC24V or 12V, output: +/-10V;
• 10K: 10K ohm precision potentiometer;
• 03(589): 3 contacts @ center, front & back position;
• HD4-BT1R: grip with 1 momentary button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

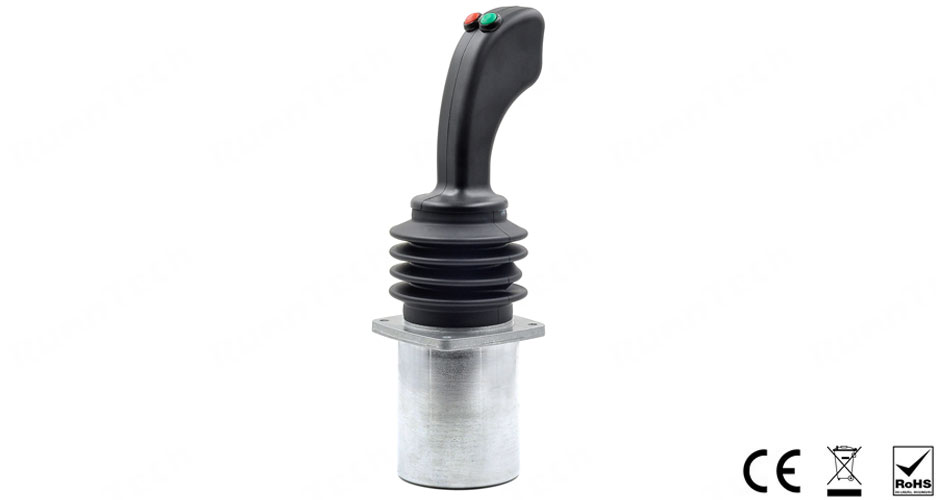

RunnTech Dual Axis Joy Stick with Double +10V Output and 2 Momentary Push Buttons

Product configuration: RT02-T-2-V2(10K)-02(89)-HD9-BS2②R③G-M6

• RT02: RunnTech RT02 series joystick controller;
• T: spring return to center self-centering;
• 2: dual axis, cross movement (cross (+) limiter plate);
• V2: input DC24V, output: +10V…0…+10V;
• 02(89): 2 directional contacts in each axis;
• HD9-BT2: grip with 2 self-lock buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

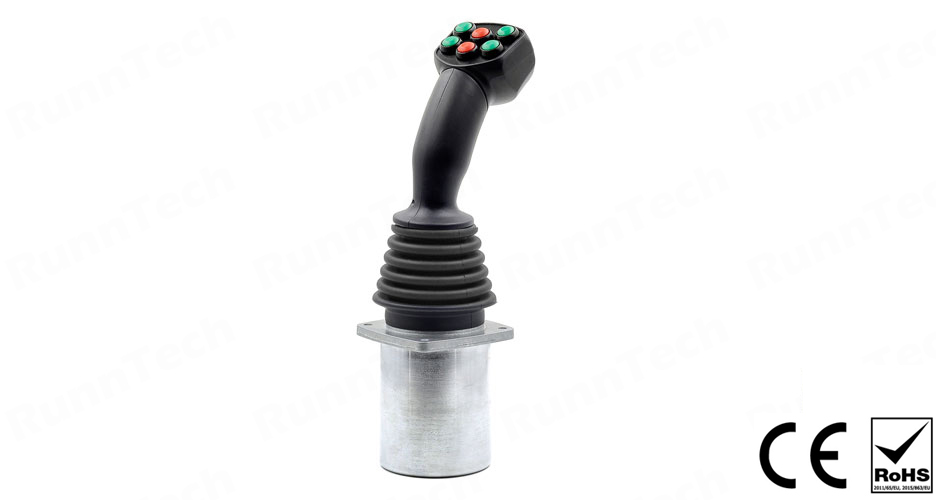

RunnTech Full Range Free Movement Joystick with CAN2.0 Output & Deadman Trigger

Product configuration: RT02-T-3-HV1-02(89)-HD10b6-BT6②③④⑦G④⑤R-M6 (CAN2.0)

• RT02: RunnTech RT02 series joystick controller;
• T: spring return to center self-centering;
• 3: dual axis, free movement;
• HV1: Hall sensor input: DC 5V, output: 0…2.5…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b6: grip with deadman trigger and 6 push buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single-axis Friction Lock Joystick Lever Electrical Output +10V with 24V Input

Product configuration: RT200-MS-V2(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 single axis joystick;
• MS: friction clutch (holds position) and lock-in center;
• V2: input DC24V, output: +10V…0…+10V;
• 10K:10K ohm precision potentiometer;
• 03: 3 directional contacts;
• 589: contacts @ -32° to -3°, -3° to +3° and +3° to +32°;
• HD6: press to release joystick;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

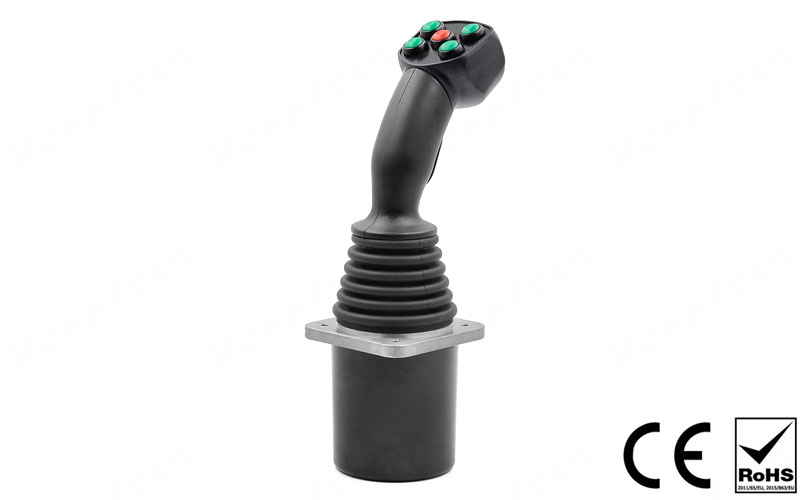

RunnTech Hall Friction Clutch (holds position) with Momentary Trigger Switch Joystick

Product configuration: RT01-M-3-HV3-01(5)-HD10b5-BT5②③⑤⑥G④R-M4

• RT01: RunnTech 01 series industrial joystick;
• M: friction clutch (holds position);
• 3: dual axis full direction (free movement);
• HV3: DC5V, output: 1.0V…0…4.0V;
• 01(5): 1 center detect switch contacts in each axis;
• HD10b5: grip with1 momentary trigger switch & 5 button;
• M4: mounting dimension 64x64mm, central hole: 83mm.
