RunnTech Friction Clutch & Center-lock Joystick for Proportional control Solenoid Valves

Product configuration: RT200-MS-1-P2(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 series single-axis joystick;
• MS: friction hold and lock-in at centre (zero) position;
• P2: simple 1 direction output;
• 10K: 10K ohm precision potentiometer;
• 03: 3 directional contacts;
• 589: contacts @ -32° to -3°, -3° to +3° and +3° to +32°;
• HD6: RunnTech joystick grip, top with self lock button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single Axis Frictional Movement Heavy Duty Joystick for Hoist Operation

Part number: RT300-T-1-I-2(4)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 1: single axis, Y axis movement;
• I:switch assembled vertically;
• 2(4): 2 steps each direction, (4): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

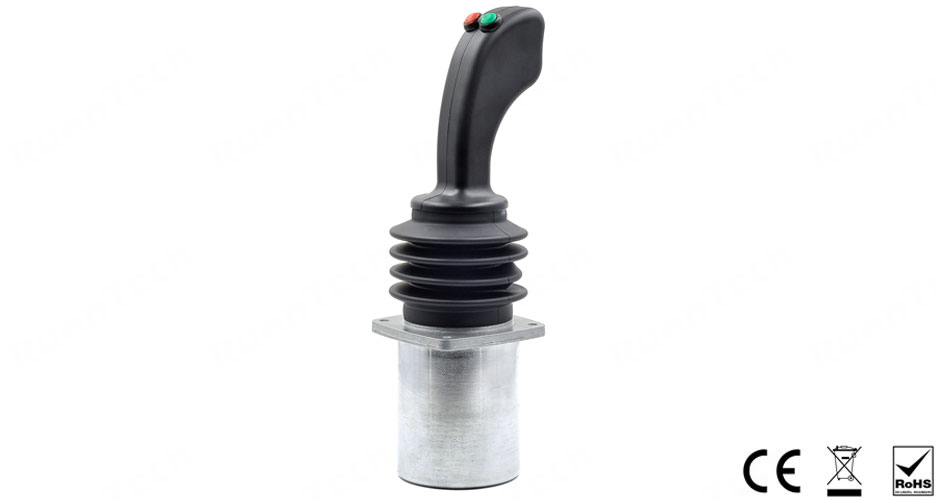

RunnTech Dual Axis Frictional Movement Joystick for Electro-hydraulic Control Systems

Product configuration: RT02-M-2-V1(10K)-02(89)-HD9-BT2②R③G-M6

• RT02: RunnTech RT02 series joystick;
• M: frictional movement to both axis;
• 2: dual axis, with cross (+) limiter plate;
• V1: electrical output -10V to +10V with 24VDC input;
• 10K: 10K linear conductive plastic track potentiometer per axis;
• 02(89): 2 directional contacts per axis (all NO-contacts);
• HD9-BT2: grip with 2 momentary buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

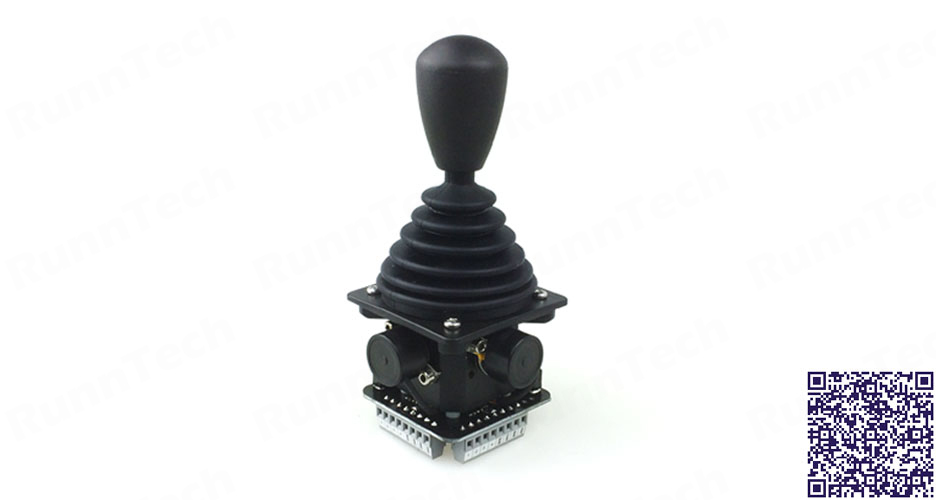

RunnTech Multi-axis Self Centering Robust Industrial Joystick with 4-20mA Analog Output

Product configuration: RT100-T-2-I1(10K)-02(89)-HD10a-M7 (12V)

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center when release operation;
• 2: dual axis, cross (+) operation;
• I1: input: DC12V, output: 4mA…12mA…20mA;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a: HD10 grip without deadman trigger and pushbutton;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

RunnTech Dual Axis Spring Return to Neutral Joystick with Center Tapped Potentiometer

Product configuration: RT100-T-2-V3(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 2: dual axis with plus (+) limiter plate;
• V3: input: 24V DC, output: -5V…0…+5V DC;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7-BT1R: RunnTech HD7 grip with 1 push buttons;
• M2: mounting dimension: 85x85mm, central hole: 63mm;

RunnTech Self-centering Potentiometer Joystick for Proportional Solenoid Valves Control

Product configuration: RT02-T-3-V1(10K)-02(89)-HD10b4-②④G③⑤R-M6

• RT02: RunnTech 02 series joystick;
• T: spring return to center (self-centering);
• 3: dual axis, 360° free movement;
• V1: input: 24V DC, Output: +/-10V (analog);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b4: grip with deadman trigger 4 buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Friction Clutch 360° Control Joystick with Potentiometer & Momentary Button

Product configuration: RT02-M-3-P1(10K)-02(89)-HD10a2-BT2-③G②R-M6

• RT02: RunnTech 02 series joystick controller;
• M: friction clutch/hold position movement;
• 3: dual axis, 360° free movement;
• P1: simple 2 electrical output for every positions;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a2: grip with 2 push buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

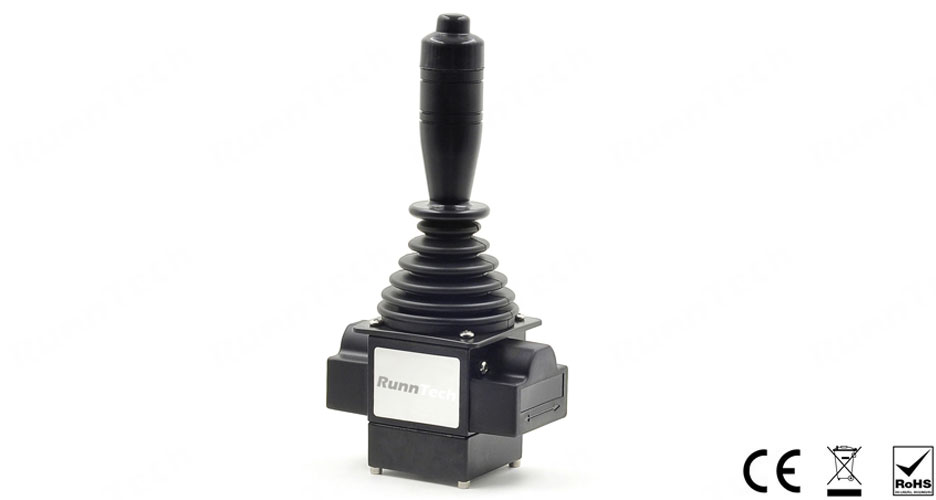

RunnTech Single-axis Friction Hold Joystick +/-10V Analogue Output for Electro-hydraulic

Product configuration: RT200-MS-V1(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 single-axis joy stick;
• MS: friction clutch (holds position) and lock-in center;
• V1: input DC24V, output: -10V…0…+10V;
• 10K:10K ohm precision potentiometer;
• 03: 3 directional contacts;
• 589: contacts @ -32° to -3°, -3° to +3° and +3° to +32°;
• HD6: push to release joystick;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Self-centering Single-axis Proportional Miniature Thumbwheel Controller

• Miniature design;
• Bilateral control;
• Hall-type non-contact sensor;
• Self-centering, single-axis actuator;
• Continuous analog proportional output;
• Designed for joystick, armrest and panel mounting.

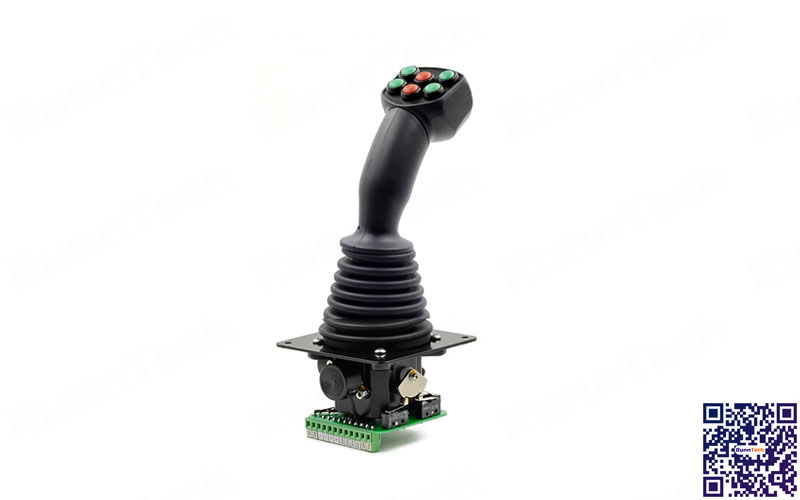

RunnTech 360° Movement Joystick with Solid Center Tap Potentiometer Track Per Axis

Product configuration: RT02-T-3-P1(10K)-02(89)-HD10b6-BT6②③④⑦G④⑤R-M6

• RT02: RunnTech 02 series joystick controller;
• T: spring return to center (self-centering);
• 3: dual axis, 360° free movement;
• P1: simple 2 electrical output for every positions;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a6: grip with 6 push buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.
