RunnTech Single-axis 4-20mA Output Joystick Latch Pushbutton for Proportional Valves

Product configuration: RT200-MS-I2(10K)-02(89)-HD6-M2

• RT200: RunnTech 200 single axis joystick;
• MS: friction brake and lock-in center;
• I2: input DC24V, output: 20mA…4mA…20mA;
• 10K:10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD6: press to release joystick;
• M2: mounting dimension: 85x85mm, central hole: 63mm;

RunnTech Multi-axis Self-centering Joystick Controller for Electro-hydraulic Applications

Product configuration: RT100-T-3-V2(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 3: dual axis free movement operation;
• V2: input: DC24V or 12V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Hall effect Self-centering Single-axis Proportional Thumb Actuator Wheel

• Miniature design;
• Bilateral control;
• Hall-type non-contact sensor;
• Self-centering, single-axis actuator;
• Continuous analog proportional output;
• Available with linear output options and wheel colors;
• Designed for joystick, armrest and panel mounting.

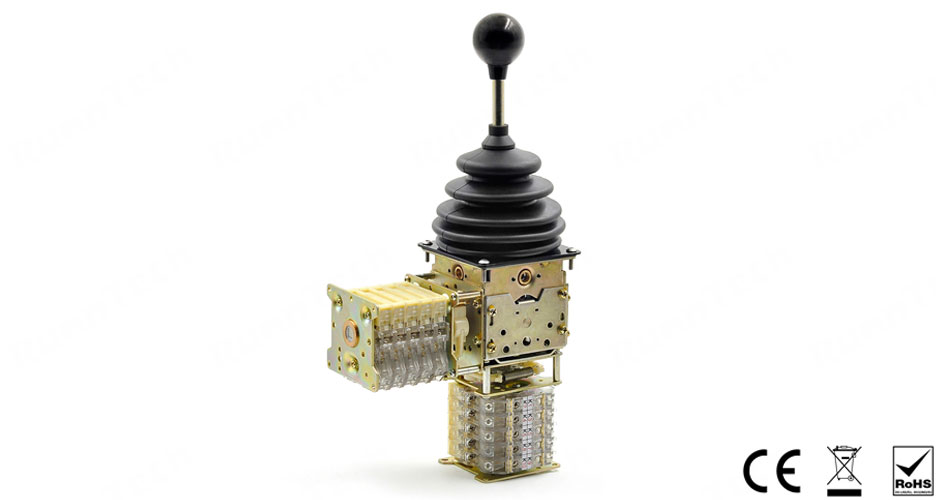

RunnTech Dual-axis Friction (no return to the center or ends) 3 Stepped Detents Joystick

Product configuration: RT300-M-3-I-3(1)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• M: friction (no return to the center or ends);
• 3: 2 axis, full direction free movement;
• I:switch assembled vertically;
• 3(1): 3 steps each direction, (1): closed position;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single Axis Joystick with Potentiometer & Friction Hold (no return to center)

Product configuration: RT100-M-1-P2(10K)-02(12)-HD1-BT1R-M1

• M: friction hold position (no return to center);
• 1: single axis (default: Y axis);
• P2: simple single side output (no dead band at the centre);
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis
• 12: contacts @ -32° to -29° or -29° to +32°;
• HD1-BT1R: grip top with 1 pushbutton;
• M1: mounting dimension;

RunnTech Dual 5V Analog Joystick with Ball Shape Grip for Electrical Proportional Control

Product configuration: RT100-T-2-V4(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 2: dual axis movement (with cross limiter plate);
• V4: input: 24V/12VDC, proportional output: +5V…0…+5V;
• 10K: 10K ohm precision potentiometer;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single-axis Self-centering Analog Joystick with Deadman Trigger & 6 Buttons

Product configuration: RT100-T-1-P1(10K)-02(89)-HD10b6-BT6②③G④⑤Y⑥⑦R-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center when release operation;
• 1: single axis operation;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b6: 1 deadman trigger & 6 momentary thumb push buttons;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

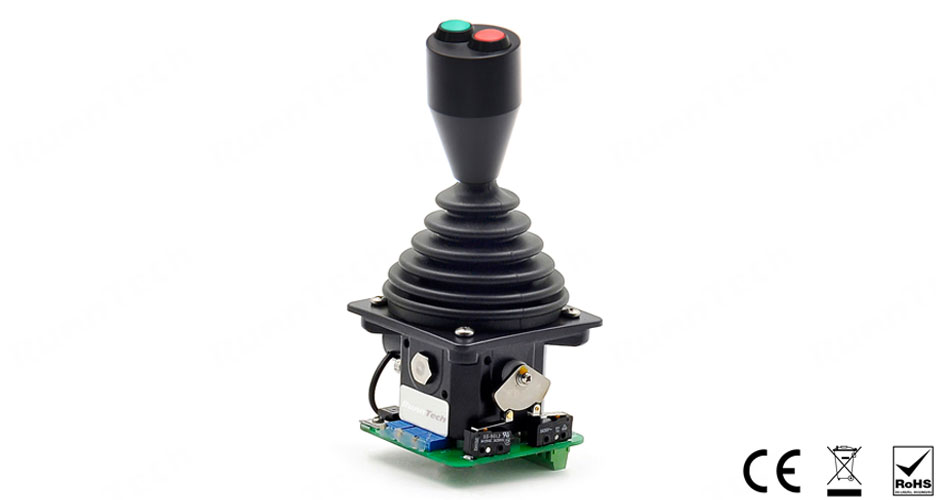

RunnTech Multi-axis Self-centering Potentiometer Joystick with 2 Momentary Push Button

Product configuration: RT100-T-2-P1(10K)-02(89)-HD80-BT2①R②G-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center when release operation;
• 2: dual axis, cross limiting plate operation;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1①R②G: 2 momentary thumb push buttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis 4mA to 20mA Interface Joystick for Steel Mills, Mine Hoisting Winch

Product configuration: RT100-T-1-I1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series industrial joystick;
• T: joystick returns to center when grip released (self-centering);
• 1: single axis 2 directions movement;
• I1: input DC 24V/12V, output: 4mA…12mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Frictional Movement Analog Joystick for Offshore, Lifting Equipment

Product configuration: RT200-MS-1-V5(10K)-02(14)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• MS: frictional movement with zero interlock (push to release);
• V5: 24VDC input, 0 to 10V analog output;
• 02: 2 contacts;
• 14: contact closed position;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;
