RunnTech Multi-axis Heavy Duty 360° Free Movement Joystick with +/-10V Analog Output

Product configuration: RT100-T-3-V1(10K)-03(589)-HD2-M1

• T: self-centering operation;
• 3: dual axis, 360° free movement;
• V1: input: 24V/12V DC, output: -10V…0…+10V (proportional);
• 10K: 10K ohm precision potentiometer;
• 03: 3 directional contacts in each axis;
• 589: contact closed position;
• HD2: round ball shape joystick grip;
• M1: mounting dimension;

RunnTech Single-axis Spring Return Joystick 0-10V Proportional Output in Each Direction

Product configuration: RT200-TS-V2(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• TS: self-centering with zero interlock (pull to release);
• V2: 24VDC input, +10V…0…+10V proportional output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

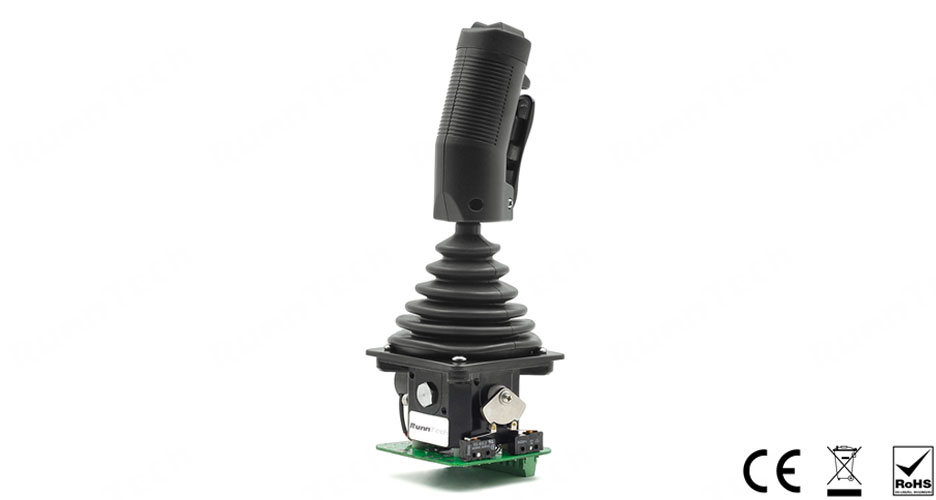

RunnTech Multi-axis +/-5V Analog Output Joystick Controller with 1 NO Deadman Trigger

Product configuration: RT100-T-2-V3(10K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series multi-axis joystick joystick lever;
• T: spring return to central operation;
• 2: dual axis, cross movement (with + limiter plate);
• V3: input: DC24V, output:-5V…0…+5V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD15-BT1: grip with 1 NO deadman trigger;
• QTOT: rocker switch;
• M1: mounting dimension 56x56mm, central hole: 63mm;

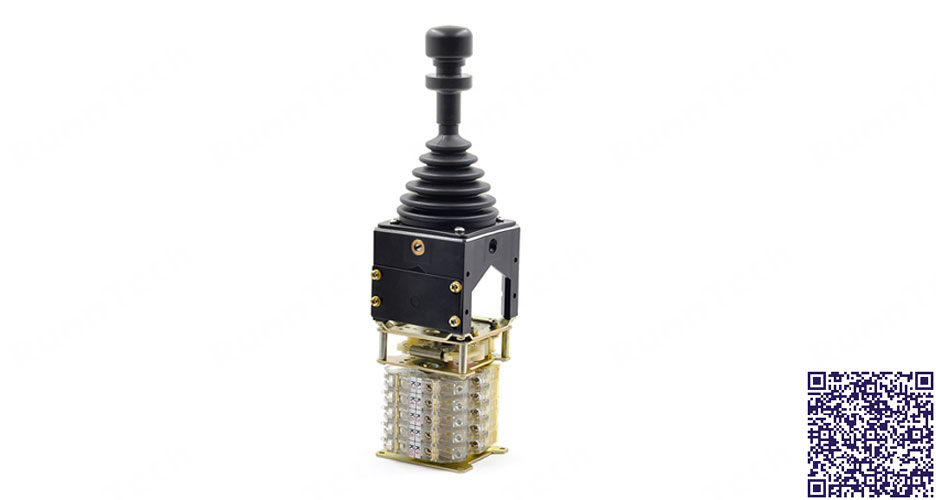

RunnTech Single-axis Friction Hold Joystick Controller for Lifting Cranes, Hoists Winches

Product configuration: RT300-MS-1-I-4(1)-HD5-M5

• RT300: RunnTech RT300 series joystick lever (master controller);
• MS: friction hold movement and self-lock at center;
• 1: single axis movement;
• I: switch assembled vertical;
• 4(1): 4 steps each direction, (1): contacts arrangement;
• HD5: joystick grip with zero interlock (pull to release);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

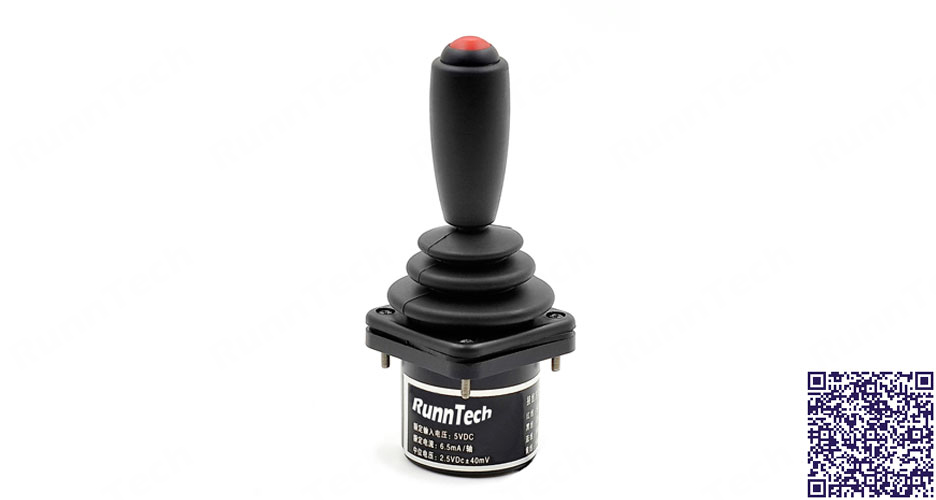

RunnTech Dual-axis Hall Sensor Finger-positioning Joystick with 1 Momentary Pushbutton

Product configuration: RT600-T-2-02-HV1-HD13-BT1R

• RT600: RunnTech 600 series hall miniature joystick controller;
• T: self-centering operation;
• 2: dual-axis control;
• 02: Y & X axis cross movement;
• HV1: input: 5V, output: 0V…2.5V…5V (rail to rail);
• HD13-BT1: RunnTech joystick grip with 1 momentary push button on top;

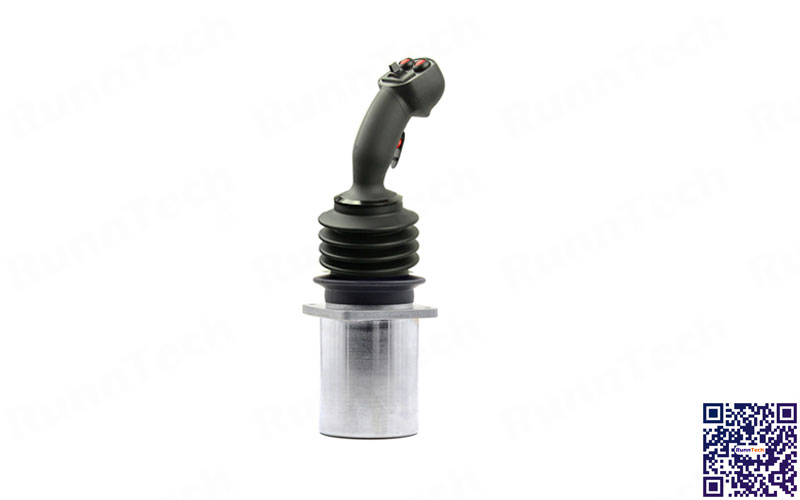

RunnTech Heavy Duty 3 Axis (Third Axis is Hall Thumbwheel) Friction Hold Joystick Lever

Product configuration: RT02-M-2-P1(10K)-02(89)-HD10b7-BT2②③R-W100H-HV1-M6

• RT02: RunnTech 02 series industrial joystick;
• M: friction clutch/hold position movement;
• 2: dual axis, cross movement;
• P1: simple 2 directions output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b7: grip with deadman trigger, 2 buttons & hall effect thumbwheel;
• W100H-HV1: 0~2.5~5V output hall effect thumbwheel；
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Dual-axis 4~20mA Current Interface Joystick 2 Buttons & Deadman Trigger

Product configuration: RT100-T-3-I1(10K)-02(89)-HD10b2-BT2②G③Y-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center;
• 3: dual axis, full direction free movement;
• I1: input DC 24V/12V, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b2: grip with 1 deadman trigger & 2 buttons;
• M7: mounting dimension: 85x85mm, hole: 80x80mm.

RunnTech Dual-axis 4mA to 20mA Output Joystick for Proportional Hydraulic Control

Product configuration: RT100-T-3-I1(10K)-02(89)-HD7-BT1R-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: mechanical spring-return to center;
• 1: single axis 2 directions movement;
• I1: input DC 24V/12V, output: 4mA…12mA…20mA;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7-BT1R: RunnTech HD7 grip with 1 push buttons;
• M7: mounting dimension: 85x85mm, hole: 80x80mm.

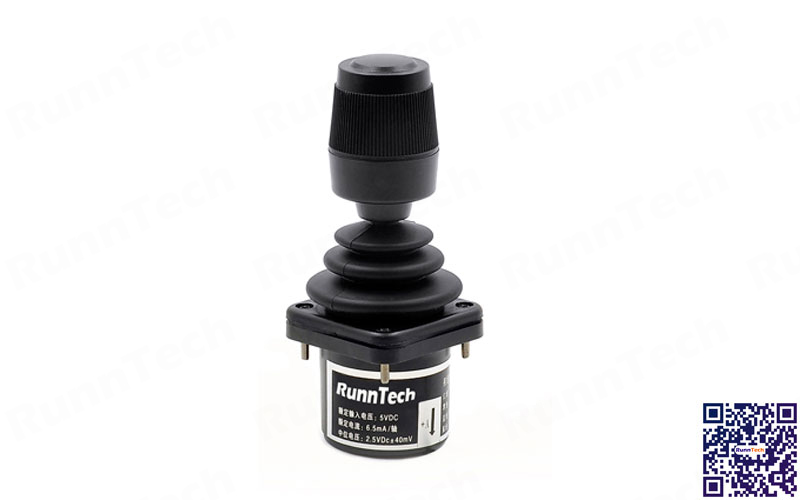

RunnTech Hall Effect Three-axes Finger-positioning Joystick for Camera, Medical Controls

Product configuration: RT600-T-3-03-HV1-HD12

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: spring return device (automatically return to center);
• 3: 3 axis control;
• 03: Y and X axis full direction, free movement;
• HV1: input: DC 5V, output: DC 0V…2.5V…5V (rail to rail);
• HD12: RunnTech joystick grip handle model;

RunnTech Single-axis +10V Electrical Proportional Output with Momentary Trigger Switch

Product configuration: RT100-T-1-V2(10K)-02(89)-HD7-BT1R-M2

• RT100: RunnTech 100 series industrial joystick controller;
• T: mechanical spring-return to center;
• 1: single axis 2 directions movement;
• V2: input: 24V/12V DC, output: +10V…0V…+10V DC;
• 02(89): 2 direction switches (NO-contacts);
• HD7-BT1R: RunnTech HD7 grip with 1 push buttons;
• M2: mounting dimension 85x85mm, central hole: 63mm.
