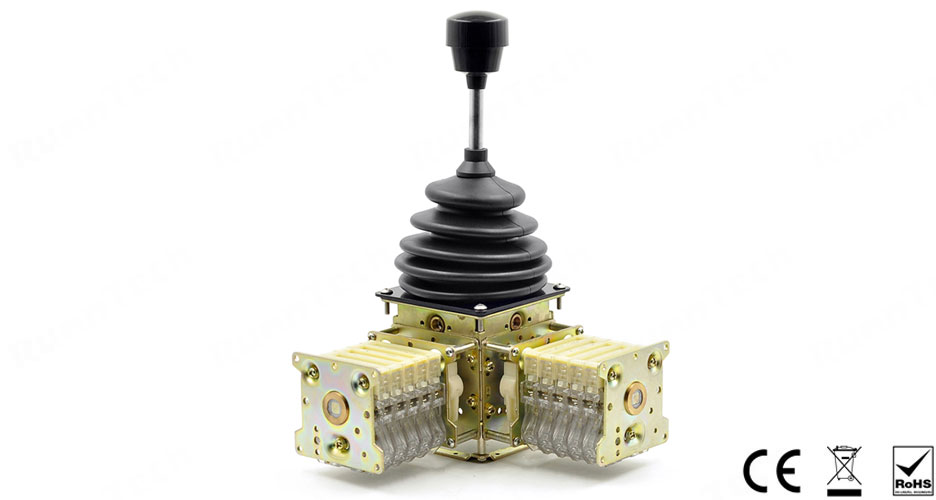

RunnTech 2 Axis Robust Industrial Joystick Controller for Crane Hoist and Long Travel Control

Part number: RT300-TS-3-L-5(65)-HD39-M5

• RT300: RunnTech RT300 series joystick (Schneider XKDF replacement);
• TS: spring return to neutral and with neutral interlock;;
• 3: 2 axis, full directions movement;
• L: switch assembled horizontal;
• 5(65): 5 steps in each direction, (65): switches contact arrangement;
• HD39: grip with latch (lift to release);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

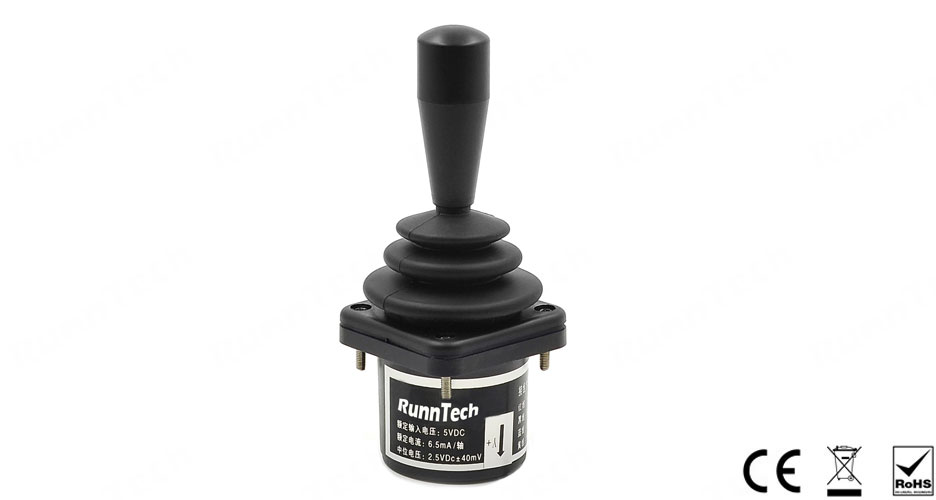

RunnTech Single Axis Hall Effect Joystick for Industrial Automated Laser Metal Cutting Machines

Product configuration: RT600-T-1-01-HV1-HD14-M11

• RT600: RunnTech RT600 series hall miniature joystick lever;
• T: spring return to center (self-centering) operation;
• 1: single axis control;
• 01: Y axis movement;
• HV1: input: 5V, output: 0…2.5V…5V (rail to rail);
• HD14: RunnTech joystick grip handle model;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

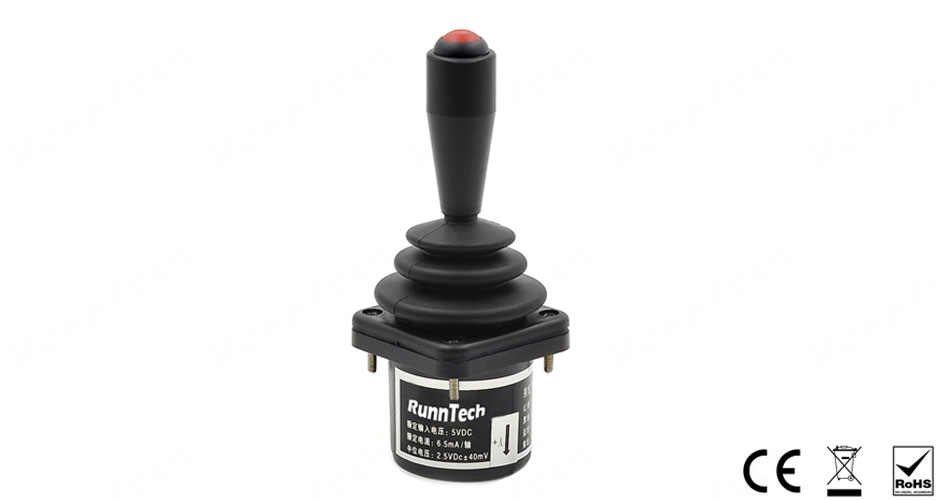

RunnTech 2 Axis Hall Effect Joystick with Pushbutton for Medical Imaging Diagnostics Equipment

Product configuration: RT600-T-2-03-HV1-HD14-M11

• RT600: RunnTech RT600 series hall miniature joystick lever;
• T: spring return to center (self-centering) operation;
• 2: dual axis control;
• 03: Y/X axis 360° free movement;
• HV1: input: 5V, output: 0…2.5V…5V (rail to rail);
• HD14-BT1R: grip handle with 1 red momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

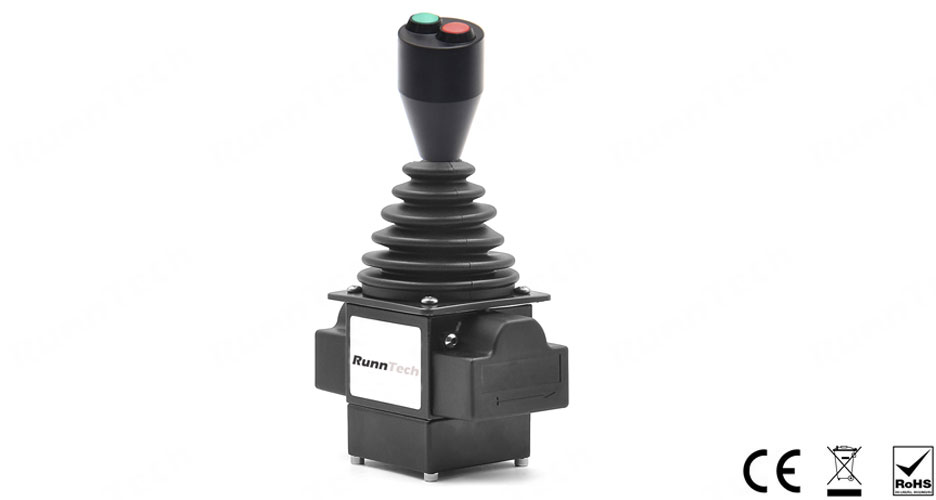

RunnTech Single-axis Friction Hold Joystick with 10K Ohm Accurate Potentiometer for PLC Control

Product configuration: RT200-M-1-P1(10K)-02(89)-HD80-BT2①BU②RD-M1

• RT100: RunnTech 100 series industrial joystick controller;
• M: friction hold operation;
• 1: single axis control (default: Y axis);
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision linear potentiometer;
• 02(89): 2 directional contacts in Y axis;
• HD80-BT2①BU②RD: grip with 2 momentary pushbuttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

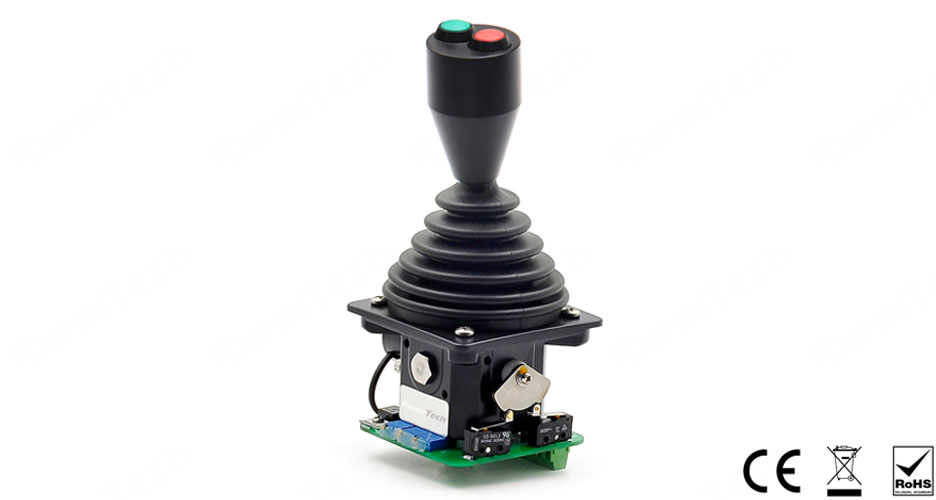

RunnTech 2 Axis Industrial Joystick 4mA to 20mA Analog Output Grip with 2 Momentary Buttons

Product configuration: RT100-T-3-I1(10k)-03(589)-HD80-BT2①BU②RD-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 2: dual axis, full direction movement;
• I1: input: 24Vdc, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 03(589): 2 directional signals and 1 center signal in each axis;
• HD80-BT2①BU②RD: grip top with one blue and one red pushbuttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

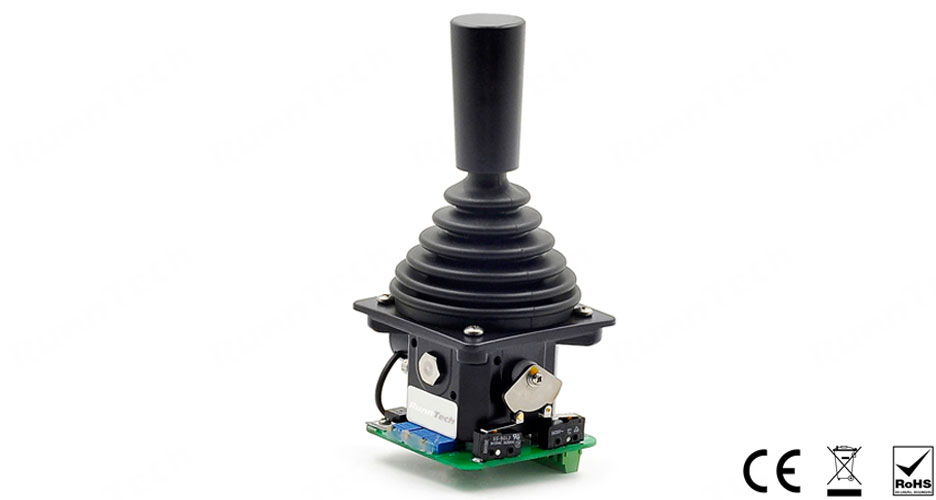

RunnTech 2 Axis X/Y Axis Full Direction Movement Joystick with 24Vdc Input, -10…+10Vdc Output

Product configuration: RT100-T-3-V1(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 3: X/Y axis full direction movement;
• V1: input: 24VDC, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD1: HD1 joystick grip (top without momentary pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis Frcition Joystick (Master Switch) +/-10V Output for Overhead Bridge Crane

Part number: RT200-M-V1(10K)-02(89)-HD4-M1

• RT200: RunnTech 200 series single axis joystick;
• M: friction hold operation;
• V1: input: 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02(89): 2 directional contacts;
• HD4: grip (top without pushbutton);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction Hold Joystick Controller with an Output of 0-5V and a Push Button

Part number: RT100-M-1-V6(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• M: friction hold movement;
• 1: single axis 2 directions movement;
• V6: input: 24Vdc, output: 0…2.5…5Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts;
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis Joystick with 2*5K Potentiometer Return to Center -10V..0..+10V Output

Part number: RT100-T-1-V1(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centring when grip released;
• 1: single axis 2 directions movement;
• V2: input: 24Vdc, output: 10Vdc…0…10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts;
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single Axis Joystick 4…20mA Output for Hydraulic Valves of Proportional Bow Thruster

Product configuration: RT100-T-1-I2(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick;
• T: mechanical spring return to neutral;
• 1: single axis movement (Y aixs);
• I2: input: 24Vdc, output: 20mA…4mA…20mA ( centre current: 4mA);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional contacts and 1 center detecting contact in Y axis;
• HD1: joystick grip (top without pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm;
