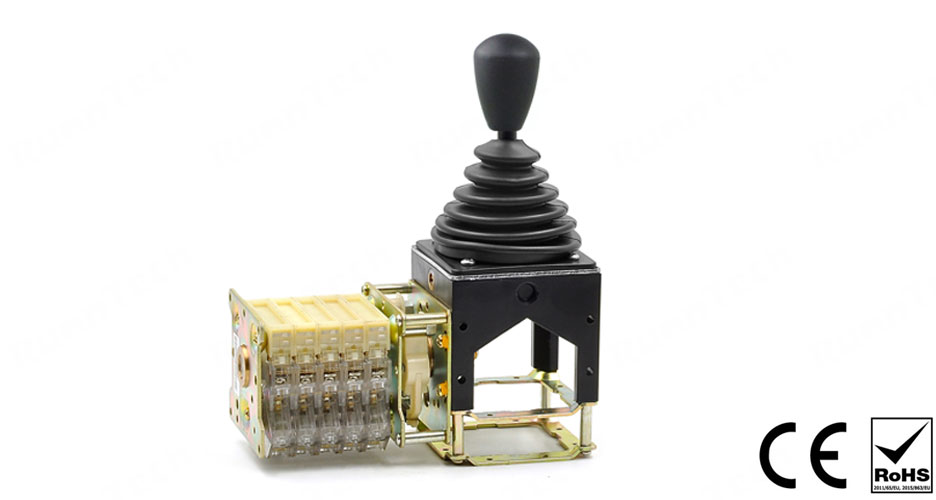

RunnTech 2 Steps Movement Single-axis Friction Position Crane Master Joystick Lever

Product configuration: RT300-M-1-L-2(3)-HD8-M5

• RT300: RunnTech RT300 series master controller;
• M: friction hold position operation;
• 1: single axis movement (default: Y direction);
• L: switch assembled horizontal;
• 2(3): 2 steps each direction, (3): contacts arrangement;
• HD8: RunnTech joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

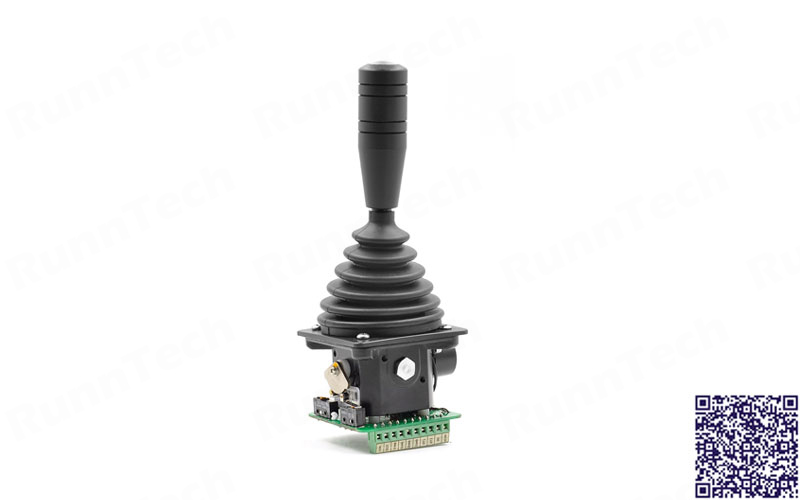

RunnTech Multi-axis Simple 2 Directions Proportional Output 10k Potentiometer Joystick

Product configuration: RT100-T-3-P1(10K)-01(5)-HD4-M2

• RT100: RunnTech 100 series joystick controller;
• T: self-centering movement operation;;
• 3: dual axis, 360° direction movement;
• P1: simple 2 directions proportional output;
• 10K:10K ohm precision potentiometer;
• 01(5): 1 directional contact in the center of each axis;
• HD4: grip without momentary pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech 2 Axis 0.5 to 4.5V Analog Output Fingertip Joystick with Momentary Button

Product configuration: RT600-T-2-03-HV2-HD13-BT1R

• RT600: RunnTech RT600 series Hall effect miniature joystick controller;
• T: self-resetting operation;
• 2: dual axis control;
• 03: Y & X axis 360° free movement;
• HV2: input: DC 5V, output: 0.5V…2.5V…4.5V;
• HD13-BT1R: joystick grip with 1 momentary pushbutton;

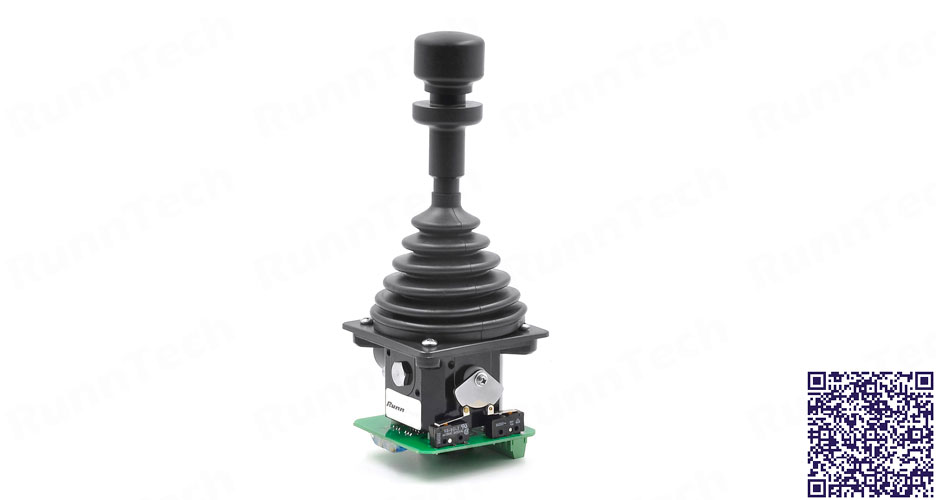

RunnTech Single-axis Self-centering Analog Output Joystick for Variable Speed Control

Product configuration: RT100-T-1-V2(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: mechanical spring return to center;
• 1: single axis 2 directions (forward/backward or up/down operation);
• V2: input: DC24V or 12V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4-BT1R: grip without momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 3 Axis Spring-return Hall Effect Sensor Joystick with 0 to 5V DC Analog Output

Product configuration: RT100-T-2-HV1-02(89)-HD10b8-BT2③②R-(W100L-HV1)-M7

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-returns to center when handle is released;
• 2: dual axis, cross movement control;
• HV1: input: DC5V, output: 0…2.5…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b8: joystick grip with deadman trigger;
• BT2③②R: 2 momentary thumb push button;
• W100L: proportional thumbwheel (the third axis control);
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech 4 Axis Spring-return Hall Joystick with Deadman & Proportional Thumbwheel

Product configuration: RT100-T-3-HV1-H-00-HD10b9(W100H*2-HV1)-M7

• RT100: RunnTech 100 series multi-axis joystick lever;
• T: joystick returns to center when handle is released;
• 3: dual axis, 360° movement control;
• HV1: input: DC5V, output: 0…2.5…5V;
• HD10b9: RunnTech joystick grip with deadman trigger;
• W100H: proportional thumbwheel provide the third & fourth axis control;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Dual-axis 4 to 20mA Proportional Output Joystick for Hydraulic Remote Control

Product configuration: RT100-T-2-I1(10K)-02(89)-HD2-M1

• RT100: RunnTech 100 series industrial joystick;
• T: joystick returns to center when grip released (self-centering);
• 2: dual axis, 4 directions movement;
• I1: input DC 24V/12V, output: 4mA…12mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single Axis Friction 4-20mA Proportional Signal Joystick with 3 Steps Movement

Product configuration: RT100-M-1-I2(10K)-3(1)-HD80-BT2②B①Y-M1

• M: friction hold position (no return to center);
• 1: single axis (default: Y axis);
• I2: input DC 24V, output: 20mA…4mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 3: 3 steps movement;
• 1: contact closed position;
• HD80-BT2②B①Y: joystick grip with 2 push buttons;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single-Axis Self-centering Proportional Control Joystick with RS232 Interface

Product configuration: RT02-T-1-P1(10K)-02(89)-HD10b2-BT2②G③Y-M6-RS232 (12VDC)

• RT02: RunnTech 02 series joystick controller;
• T: self-centering movement operation;
• 1: single axis movement;
• P1: simple 2 electrical output for every positions;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a2: grip with 2 push buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm;
• RS232: RS232 interface.

RunnTech Multi-axis Hall 360° Movement Joystick with 1 Directional Contact in Each Axis

Product configuration: RT100-T-3-HV3-01(5)-HD4-M2

• RT100: RunnTech 100 series joystick controller;
• T: self-centering movement operation;
• 3: dual axis, 360° direction movement;
• HV3: input: DC5V, output: 1.0…2.5…4.0V;
• 01(5): 1 directional contact in the center of each axis;
• HD4: grip without momentary pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.
