2018 Chinese Lunar New Year (Spring Festival) Holiday Notice

Please be informed that RunnTech will temporarily break for 2018 Chinese Lunar New Year (Spring Festival) holidays from 13^th February to 22^nd
February. All our staffs will resume to normal operation from 23^rd October.

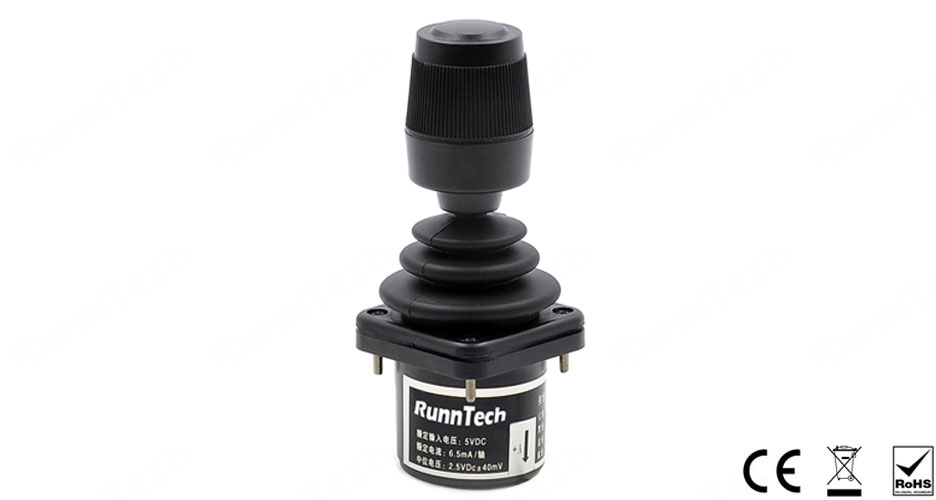

RunnTech 3 Axis Hall Effect Fingertip Joystick with 1 Pushbutton for Ratiometric Output

Product configuration: RT600-T-3-03-HV2-HD12-BT1

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: mechanical self-return to center;
• 3: 3 axis control;
• 03: Y and X axis full direction, free movement;
• HV2: input: 5V, output: 0.5V…2.5V…4.5V;
• HD12: RunnTech joystick grip handle model;
• BT1: one momentary pushbutton.

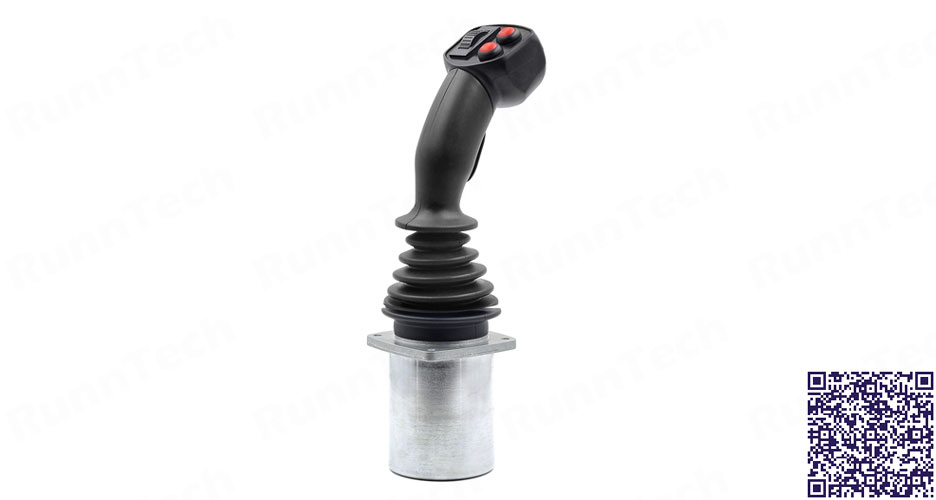

RunnTech 3-axis Mechanical Hold Joystick (3rd axis is Hall Effect Thumbwheel Controller)

Product configuration: RT02-M-3-V1(10K)-02(89)-HD10b8-BT2③②R-W100L-HV1-M6

• RT02: RunnTech 02 series joystick controller;
• M: friction hold position operation;
• 3: dual axis free movement;
• V1: input: DC 24V, output: -10V…0…+10V;
• 10K: potentiometer resistor is 10K;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b8: grip with 2 pushbuttons, 1 deadman trigger and 1 thumbwheel;
• W100L-HV1: hall effect thumbwheel, output: 0-2.5-5V;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech 1 Axis Friction Hold +/-10V Analog Output Joystick for Proportional Control

Product configuration: RT100-MS-1-V1(10K)-02(89)-HD5-M1

• RT100: RunnTech RT100 series industrial joystick;
• MS: mechanical friction hold & Lock-in at centre (zero) position;
• 1: single axis 2 directions movement;
• V1: input: DC 24V, output: -10V…0…+10V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: grip with mechanical lock-in at 0 position (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 2-axis Spring Return Joystick 10V Analog Output with Mechanical Center Lock

Product configuration: RT02-TS-2-V2(10K)-02(89)-HD50-M6

• RT02: RunnTech 02 series joystick controller;
• TS: self-centering and center-lock operation;
• 2: dual axis control;
• V2: input: DC 24V, output: +10V…0…+10V;
• 10K: potentiometer resistor is 10K;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD50: grip with pull to release (mechanical lock-in at 0 position);
• M6: mounting dimension: 76x76mm, central hole: 92mm.

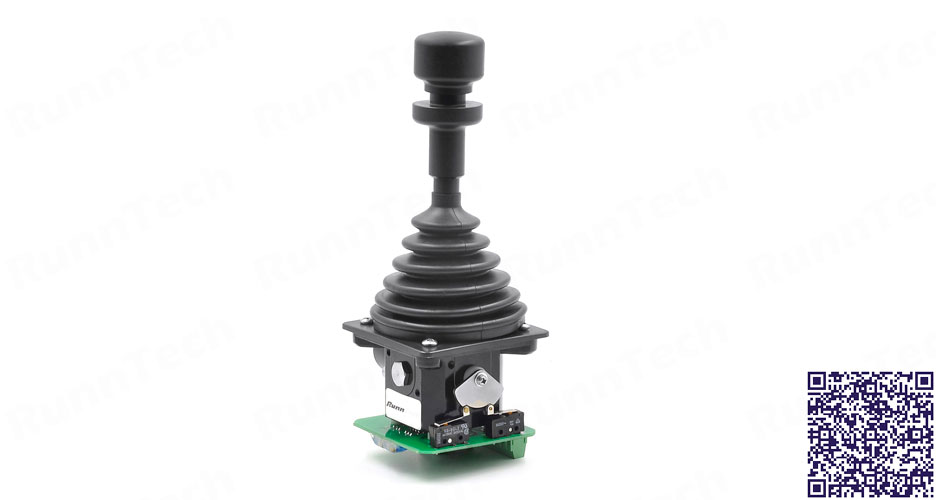

RunnTech Single-axis Joystick Lever with 10V Proportional Output for Inverter Control

Product configuration: RT100-MS-1-V2(10K)-03(589)-HD5-M1

• RT100: RunnTech RT100 series industrial joystick;
• MS: mechanical friction hold & Lock-in at centre (zero) position;
• 1: single axis movement;
• V2: input: 24VDC, output: +10VDC…0…+10VDC;
• 03: 3 normally open contact in each axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD5: grip with pull to release;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single Axis Spring Return to Nutural Joystick with +/-10V Proportional Output

Product configuration: RT100-T-1-V1(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 1: single axis 2 directions movement;
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• HD7: RunnTech joystick HD7 grip with push button;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Heavy Duty 2 Axis Mechanical Friction Hold Joystick with +10V Analog Output

Product configuration: RT02-MS-3-P1(25%-50%-75%)(10K)-02(89)-HD50-M6

• RT02: RunnTech 02 series joystick controller;
• MS: friction brake with center-lock operation;
• 3: dual axis omni-directional control;
• P1(25%-50%-75%): 25%…75%Vdc output (if input 24V, output will be 6…12…18Vdc);;
• 10K: 10K ohm center tapped potentiometer;
• 02(89): 2 directional switches in each axis;
• HD50: grip with mechanical lock-in at 0 position (lift to release the joystick);
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single-axes Hall Sensor Joystick Lever with 2 Normally Open Direction Switches

Product configuration: RT100-T-1-HV1-02(89)-HD2-M1

• RT100: RunnTech 100 series industry joystick lever;
• T: spring return to central operation;
• 1: single axis movement (default: Y axis);
• HV1: input: 5VDC, proportional output: 0…2.5…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 6 Steps Self-centering Crane Hoist Master Joystick Controller with Hall Sensor

Product configuration: RT300-TS-2-L-3(4)-HV1-HD39-M5

• RT300: RunnTech RT300 series joystick (master controller);
• TS: spring return to center and self-lock at center;
• 2: 2 axis, cross direction (with cross limiter plate);
• L: switch assembled horizontal;
• 3(4): 3 steps in each direction, (4): contact arrangement;
• HV1: input: DC5V, output: 0…2.5…5V (rail to rail);
• HD39: joystick handle type;
• M5: mounting dimension: 85x85mm, central hole: 78mm.
