RunnTech Industrial Single Axis Potentiometer Joystick with +/-10V Proportional Output

Product configuration: RT200-MS-V4(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• MS: mechanical friction hold with zero interlock (pull to release);
• V4: 24VDC input, +5V…0…+5V proportional output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Self-centering Joystick 4 to 20mA Analog Output for Winch Control

Product configuration: RT200-T-1-I1(10K)-02(89)-HD4-BT1R-M1

• RT200: RunnTech 200 series single-axis joystick;
• T: self-centering operation;
• I1: input DC 24V, output: 4mA…12mA…20mA;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4-BT1R: joystick grip with 1 momentary pushbuttons;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Friction Hold Y/X Axis Full Direction Hall Joystick with 0 to 5V Output Rail to Rail

Product configuration: RT02-M-3-HV1-02(89)-HD10b8-BT2②Y③G-QTOT-M6-120CM

• RT02: RunnTech 02 series robust industrial joystick;
• M: friction hold position operation;
• 3: dual axis free movement;
• HV1: input: 5VDC, output: 0V…2.5V…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b8: grip with 1 deadman trigge;
• BT2②Y③G: 2 momentary pushbuttons;
• QTOT: rocker switches;
• M6: mounting dimension: 76x76mm, central hole: 92mm;
• 120CM: wire outlet length is 120CM.

RunnTech Dual-axis Self-centering Proportional Joystick for Crane and Lifting Control

Product configuration: RT100-T-3-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: mechanical spring return to center (self-centering);
• 3: dual axis free movement operation;
• HV1: input: DC5V, output: 0V…2.5…+5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis Analog Joystick for Control of Electro/Hydraulic Proportional Valves

Product configuration: RT200-MS-V1(10K)-02(89)-HD6-M1

• RT200: RunnTech 200 single axis joystick;
• MS: friction clutch (holds position) and zero interlock;
• V1: input DC24V, output: -10V…0V…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in Y axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

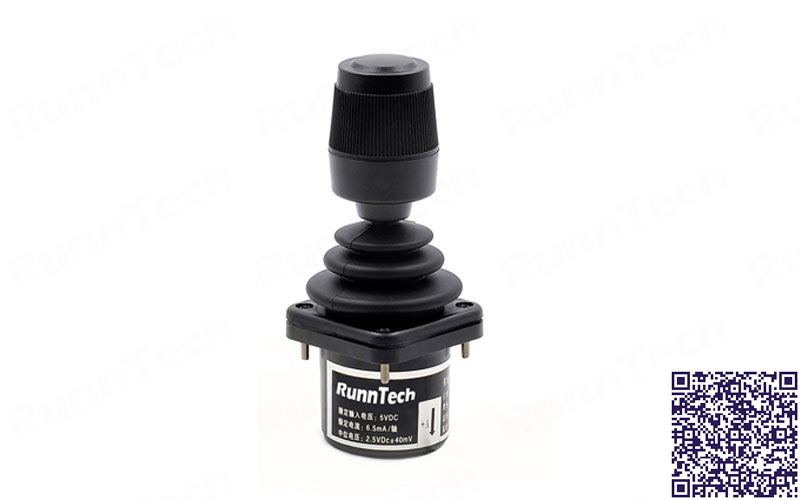

RunnTech Multi-axis Hall Contactless Self-centering Fingertip Analog Output Joystick

Product configuration: RT2000-T-XYZ-POPOP-25-SPL-SPL-N

• RT2000: RunnTech 2000 series Hall miniature joystick controller;
• T: spring return device (automatically return to center);
• XYZ: 3 (XYZ) axis, free movement;;
• POPOP: single output – same ramp each axis;
• 25: input: 5 Vdc, output: 1.1 to 3.9 Vdc nominal;

RunnTech 10 Volt Proportional Industrial Joystick with 10k Centre Tap Potentiometers

Product configuration: RT100-T-2-V2(10K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 2: dual axis cross movement;
• V2: input: DC 24V, output: dual 10VDC;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD15: joystick grip;
• BT1: joystick grip with deadman trigger;
• QTOT: rocker switch;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single Axis +/-10VDC Analog Output Industrial Joystick for Mining Machinery

Product configuration: RT200-TS-V1(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• TS: self-centering with zero interlock;
• V1: 24VDC input, -10V…0…+10V analog output;
• 03: 3 normally open contacts in Y axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD5: grip with zero interlock (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Joystick Master Controller Spring Return for Hoisting Up/ Down, Left/Right

Product configuration: RT300-T-2-L-5(1)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 2: dual axis, cross direction movement;
• L:switch assembled horizonal;
• 5(1): 10 steps each axis, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single Axis +/-10VDC Proportional Output Joystick Controller with 24VDC Input

Product configuration: RT200-TS-V1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• TS: self-centering with zero interlock (pull to release);
• V1: 24VDC input, -10V…0…+10V proportional output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;
