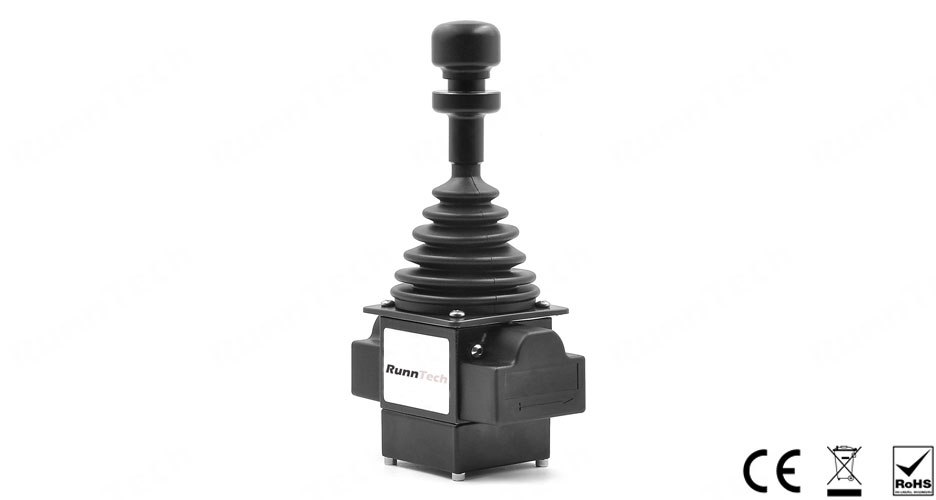

RunnTech Single-axis Industrial Analog Output Joystick Controller for Conveyor System

Product configuration: RT200-TS-P1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• MS: mechanical spring return with zero interlock (pull to release);
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

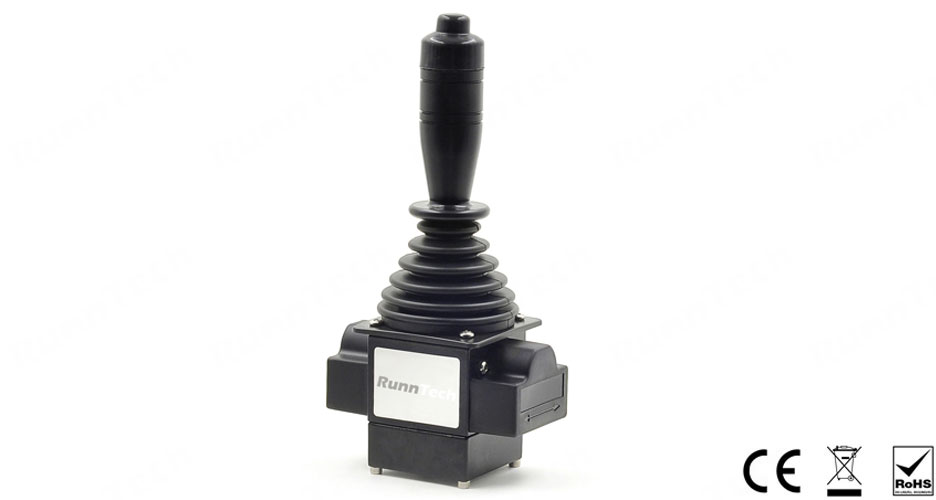

RunnTech Single-axis Spring Return 0~20mA Analogue Output Joystick for Crane Control

Product configuration: RT200-TS-I2(0-20mA)(10K)-02(89)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: mechanical spring return to zero position and zero interlock;
• I2(0-20mA): input DC24V, output: 20mA~0mA~20mA;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in Y axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

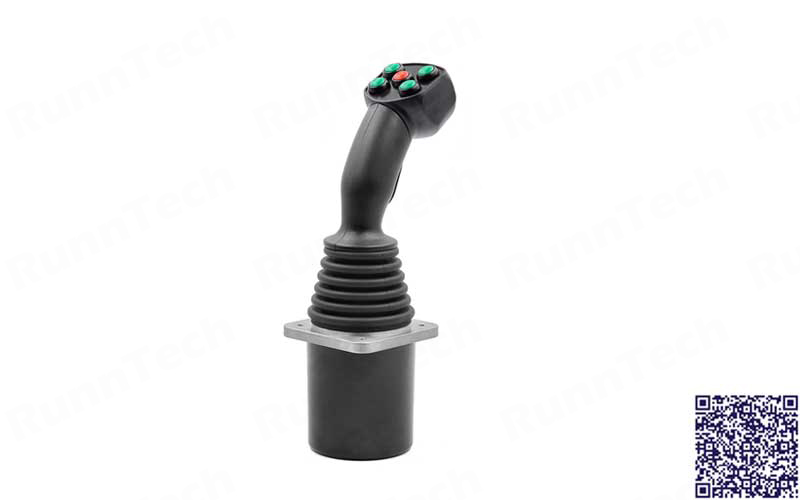

RunnTech Dual-axis Joystick with Ergonomic Multifunction Handle and Deadman Trigger

Product configuration: RT01-T-2-V2(10k)-02(89)-HD10b5-BT5②③⑤⑥G④R-M4

• RT01: RunnTech 01 series industrial joystick;
• T: mechanical spring return to center;
• 3: dual axis full direction movement;
• V2: input: DC 24V, output: +10V~0~+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b5: grip with 1 momentary trigger switch & 5 button;
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech 1-axis +/-10V DC Analog Output Industrial Potentiometer Joystick Controller

Product configuration: RT200-TS-V1(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• TS: spring-back to centre position with zero interlock;
• V1: 24VDC input, -10V – 0 – +10V analog output;
• 03(589): 2 micro-switches for position indication and 1 micro-switch for indication of neutral position;
• HD5: grip with zero interlock (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Dual-axis 10K Ohm Conductive-plastic Solid Center Tap Potentiometer Joystick

Product configuration: RT100-T-2-P1(10K)-02(66)-HD8-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 2: dual axis, cross direction movement operation;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02(66): 4 normally open contacts in each axis;
• 66: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 200 Series Single-axis Friction-hold +/-10V DC Proportional Industrial Joystick

Product configuration: RT200-M-1-V1(10K)-02(89)-HD1-BT1R-M1

• M: friction lock operation;
• 1: single axis movement (default: Y axis);
• V1: input: 24V/12V DC, output: -10V – 0 – +10V (proportional);
• 10K: 10K ohm precision potentiometer;
• 02: 2 directional contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: joystick grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 3 Axis Multi-functional Joystick for Kalmar Port Material Handling Equipment

RunnTech RT90 series multi-functional control with 6 switches (2x illuminating, 3x pushbuttons and 1x deadman trigger) and 1x proportional thumbwheel joystick controller for Kalmar (920943.0058) container reach stacker port material handling equipment (potentiometers outside-mounted type) with standard DB25 Male analog 25-pin Connector for serial connections (RunnTech part number: RT90JAM-4U-46R4GP).

RunnTech 3-axis (X, Y and twist axis) Hall Effect Sensor Miniature Analog Output Joystick

Product configuration: RT600-T-3-03-HV1-HD12

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: self-centering movement operation;
• 3: 360° free movement;
• 03: 3 axis (X,Y,Z axis);
• HV1: input: DC 5V, output: DC 0V~2.5V~5V (rail to rail);
• HD12: RunnTech joystick grip handle model;

RunnTech 3-axis (X, Y & Analog Thumb stick) Self-centering Proportional Output Joystick

Product configuration: RT100-T-3-V1(H)-02(89)-HD10a10-W100H-V1(H)-M7

• RT100: RunnTech 100 series multi-axis industrial joystick;
• T: self-returns to center when handle is released;
• 3: dual axis 360° omni-directional movement;
• V1(H): input DC 24V, output: -10V…0V…+12V (hall sensor);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a10: joystick grip without deadman trigger;
• W100H: analog output thumb stick (Z axis);
• V1(H): input DC 24V, output: -10V…0V…+10V (hall sensor);
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Single-axis Mechanical Friction Movement Proportional Joystick with Trigger

Product configuration: RT100-M-1-V2(10K)-03(589)-HD7-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• M: mechanical friction hold operation;
• 1: single axis 2 directions movement;
• V2: input: 24V/12V DC, output: +10V…0V…+10V DC;
• 03(589): 3 direction switches (NO-contacts);
• HD7-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.
