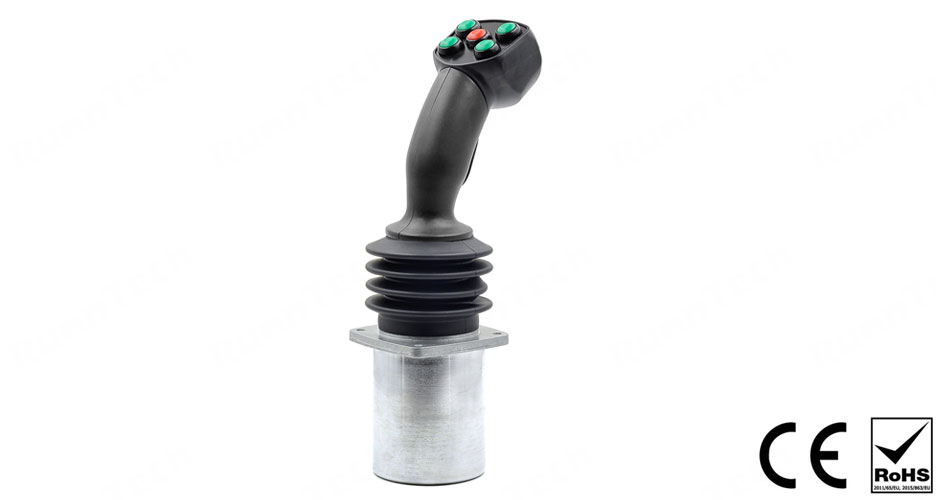

RunnTech 2-axis Proportional 0-10VDC Output with 5VDC at the Centre Position Joystick

Product configuration: RT02-T-3-V5(10K)-03(589)-HD10b5-BT5②③⑤⑥G④R-M6

• RT02: RunnTech 02 series robust industrial joystick lever;
• T: mechanical self-centering operation;
• 3: dual axis full direction free movement;
• V5: input: DC 24V, output: 0~+10V;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° or -3° to -32° in each axis;
• HD10b5: ergonomic grip with person present switch;
• BT5②③⑤⑥G④R: 5 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single Axis Heavy Duty Industrial Analogue Joystick with 10K Potentiometer

Product configuration: RT200-МS-V5(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 series joystick controller;
• MS: mechanical friction hold with zero interlock (pull to release);
• V5: 24VDC input, 0~+10V DC output;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° (forward) or -3° to -32°(backward);
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

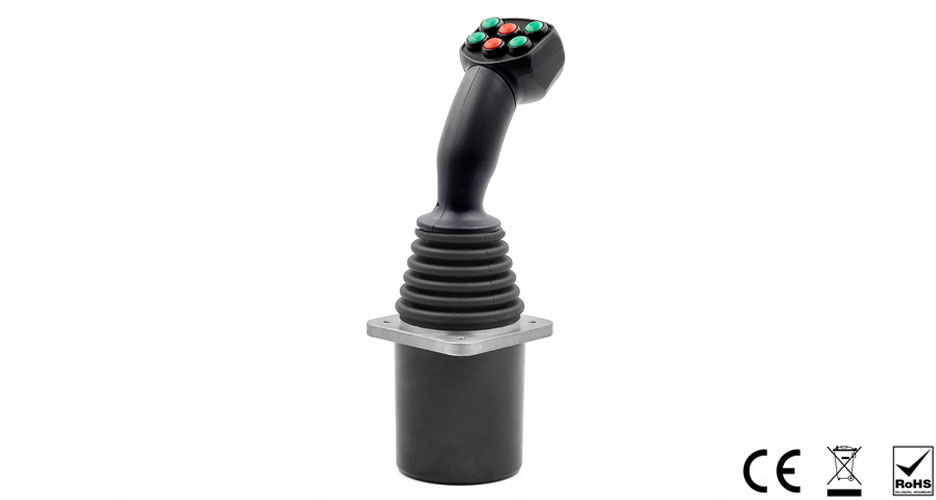

RunnTech Dual Axis Free Movement 6 Buttons 0-10V Analog Joystick for Garbage Truck

Product configuration: RT01-T-3-V5(10K)-02(89)-HD10b6-BT6-M4

• RT01: RunnTech 01 series industrial joystick controller;
• T: mechanical spring return to 0 position;
• 3: 2 axis free movement;
• V5: 24VDC input, 0~+10V DC proportional output;
• 10K: 2x5K ohm precision potentiometer in each axis;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b6: grip with 1 momentary trigger switch & 6 push button;
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech 2-axis Self-centering Ergonomic Proportional Flight Simulator Industrial Joystick

Product configuration: RT02-T-2-V3(10K)-02(89)-HD9-BT4⑥R④G①Y②B-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical self-centering operation;
• 2: dual axis cross direction movement (with plus limiter);
• V3: input: DC 24V, output: -5V~0~+5V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD9: ergonomic grip with momentry pushbuttons;
• BT2⑥R④G①Y②B: 4 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single Axis 0 to 10V Analog Ouput Center Tap Precision Potentiometer Joystick

Product configuration: RT200-М-V5(10K)-03(589)-HD7-ВТ1-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold operation;
• V5: 24VDC input, 0~+10V DC output;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° (forward) or -3° to -32°(backward);
• HD7: joystick grip, top with 1 push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

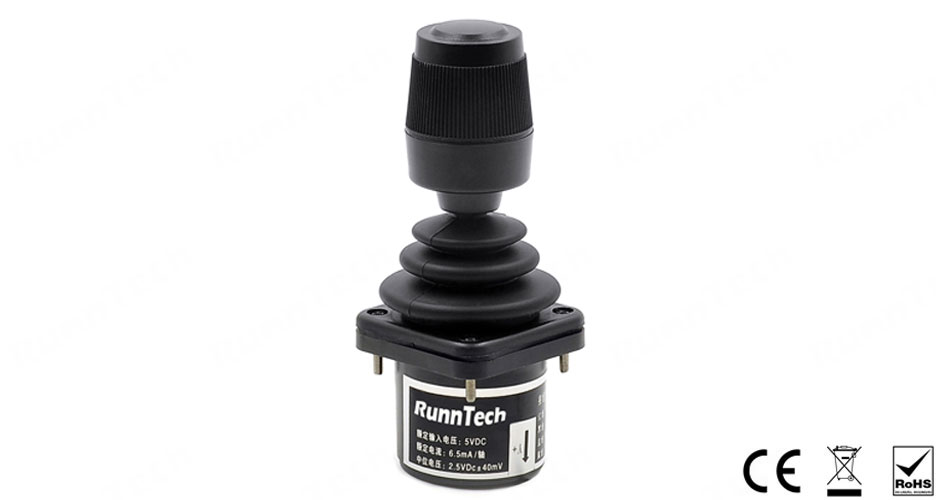

RunnTech 3 Axis Joystick with Rotating Knob for FlexPendant (TPU or Teach Pendant Unit)

Product configuration: RT600-T-3-03-HV5-HD12-M11

• RT600: RunnTech RT600 series contactless hall effect joystick;
• T: self-centering (automatically return to center);
• 3: 3 axis (XYZ) control;
• 03: 3 axis full direction, free movement;
• HV5: input: DC 5V, output: DC 1.1V~2.5V~3.9V (proportional);
• HD12: RunnTech joystick grip model;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Single Axis Joystick with 2x5K No Neutral Zone Linear 3 Pins Potentiometer

Product configuration: RT100-T-1-P2(10k)-02(89)-HD8-M1

• T: spring return to center operation;
• 1: single axis (default: Y axis);
• P2: simple single side output (no dead band at the centre);
• 10K: 2x5K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis
• 89: contacts @ -3° to -32° or +3° to +32°;
• HD8: grip/handle model;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech XYZ Axis Hall Effect Joystick with Rotating Knob for Welding or Cutting Machine

Product configuration: RT600-T-3-03-HV5-HD12-M11

• RT600: RunnTech RT600 series contactless hall effect joystick;
• T: self-centering (automatically return to center);
• 3: 3 axis (XYZ) control;
• 03: 3 axis full direction, free movement;
• HV5: input: DC 5V, output: DC 1.1V~2.5V~3.9V (proportional);
• HD12: RunnTech joystick grip model;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Hall Effect Throttle Trigger for Multi-function Transport Trolleys & Pallet Truck

Product configuration: H100-G-Q2-L-T

• H100: RunnTech H100 series Hall effect multi-function steering (tiller head);
• G: turtle speed button;
• Q2: 2 rocker switch;
• L: horm button;
• T: speed controller;
• Input voltage: 5 to 48VDC;
• RunnTech H100 series multi-function steering mainly used in electric-vehicle applications, like: electric pallet truck, pedestrian industrial truck, transport trolleys, cleaning machinery, etc.

RunnTech Single-axis Industrial Analog Joystick 10V Output for DC Motor Speed Control

Product configuration: RT200-MS-V2(10K)-03(589)-T-M1

• RT200: RunnTech 200 series single axis joystick;
• MS: mechanical friction hold with zero interlock (pull to release);
• V2: input DC 24V, output: +10V~0V~+10V proportional output;
• 10K: 2x5K Ohm conductive-plastic potentiometer;
• 03: 3 normally open contacts in each axis;
• (589): contacts @ -32° to -3° (backward), -3° to +3° (central) or +3° to +32° (forward);
• T: T shape grip with push to release the joystick;
• M1: mounting dimension 56x56mm, central hole: 63mm.
