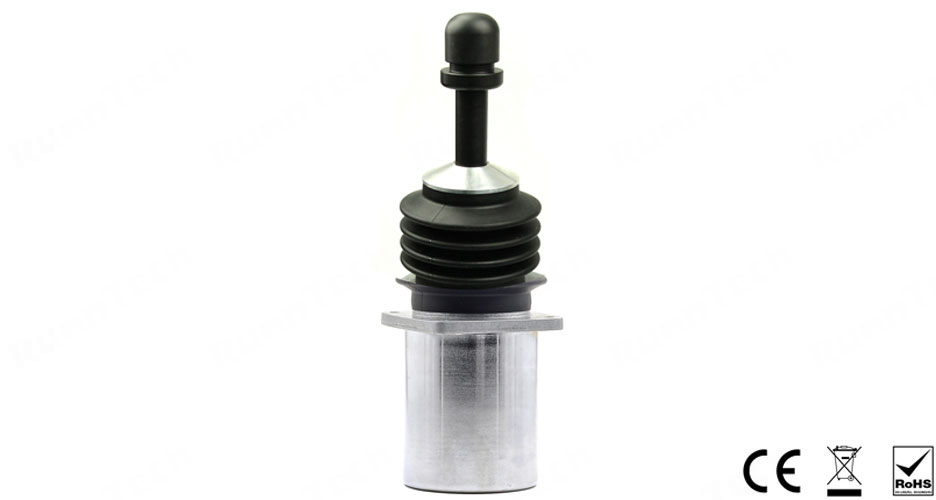

RunnTech Single-axis Proportional Joystick Controller for Electronic Servo Valve System

Part number: RT02-MS-1-V1(10K)-02(89)-HD50-M6

• RT02: RunnTech 02 series joystick controller;
• MS: mechanical friction hold & Lock-in at centre (zero) position;
• 1: single axis, 2 directions movement;
• V1: input 24Vdc, output: -10~0~+10Vdc (proportional);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD50: grip with pull to release (mechanical lock-in at 0 position);
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech HD10 Series Ergonomical Joystick Grip with 6 Pushbuttons & Deadman Trigger

About RunnTech HD10 Series Ergonomical Joystick Grip RunnTech HD10 Series Joystick Grip handle is ergonomically designed, provides a high degree of comfort, highly integrated, multi-channel buttons control output and the handle can be installed with a variety of accessories: analog output of thumbwheel controller, self-resetting (momentary) push button, self-locking push button or rocker switch. RunnTech…

RunnTech Single-axis Proportional Joystick Lever with 24Vdc Input & 4~12~20mA Output

Part number: RT100-T-1-I1(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 1: single-axis movement;
• I1: input: 24Vdc, output: 4mA~12mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

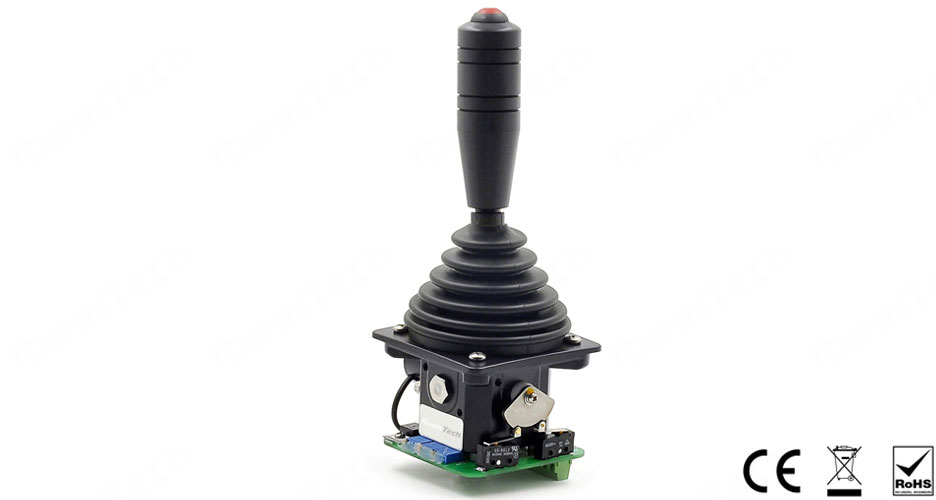

RunnTech Dual-axis Proportional Control Lever Joystick with 24Vdc Input & 0-10V Output

Part number: RT100-T-3-V5(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 2: dual axis 360° free movement;
• V5: input: 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual Axis Analogue Output Joystick for PLC (Programmable Logic Controllers)

Product configuration: RT100-T-2-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross operation (with cross limiting plate);
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

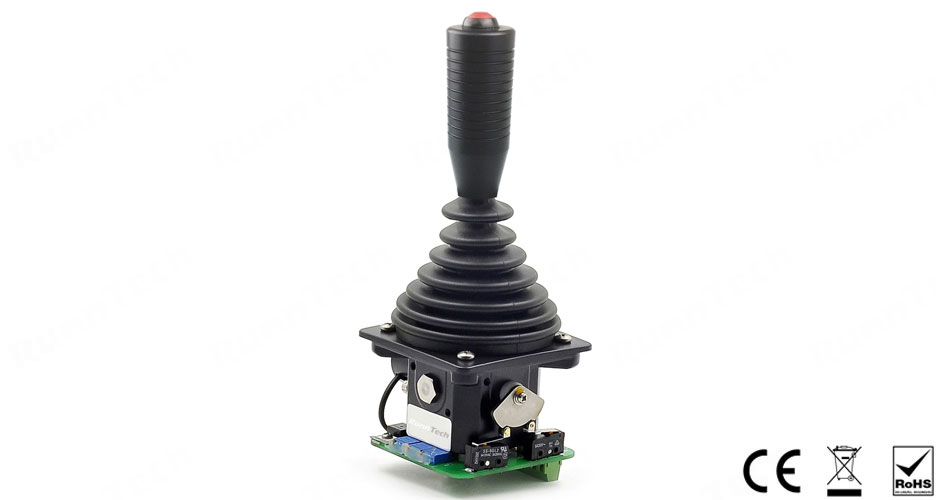

RunnTech RT100 Series Single-axis Industrial Joystick with Center Tapped Potentiometer

Product configuration: RT100-T-1-P1(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center;
• 1: single axis operation;
• P1: ordinary 2 directions output (with center tap);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD104-BT1R: HD4 grip top with 1 momentary pushbutton;

• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis ( left/right or up/down) Joystick with 4-20mA Proportional Output

Product configuration: RT200-TS-I1(10K)-02(89)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: spring return to center and self-lock at center;
• I1: input 24Vdc, output: 4mA~12mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open (NO) switches contacts;
• 89: NO contacts closed @ -32° to -3° or +3° to +32°;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

Join us at 2018 Bauma International Trade Fair in Shanghai

Join us at 2018 Bauma International Trade Fair in Shanghai

We will be present at Bauma China International Trade Fair on 27 – 30 November 2018 in Shanghai.

It will be a fantastic chance to meet people who are happy to share their passion and experience.

Hope to see you there!

Linde Forklift Joystick Zentralhebel 7919040015 for Linde Material Handling Truck Control

Fits to the following Linde models:
Electric truck:
335-03:E16-03/E20-03
386-02:E12-02/E14-02/E15-02/E16-02/E18-02/E20-02
387-01:E20/E25/E30/E35
388-01:E35/E40/E45/E50
1275-01:E16C/E16CH/E16P/E16PH/E20PH
1276-01:E25/E25S/E25SH/E30S/E30SH/E35SH
1279-01:E60/E70/E80

Electric reach truck:
1120-01:R10/R12/R14/R16/R20/R25

Diesel truck:
391-01:H14/H16/H18/H20
392-02:H20-02/H25-02
393-02:H25-02/H30-02/H35-02
394-01:H40/H45/H50
394-02:H40-02/H45-02/H50-02
396-02:H50-02/H60-02/H70-02/H80-02
396-03:H50-03/H60-03/H70-03/H80-03
1220-01:H25,H30,H35D/T
1411-01:H100,H120,H140,H150,H160/600,1200

RunnTech Industrial Single-axis Self-centering Hall Effect Joystick for Proportional Control

Part number: RT200-T-HV3-03(136)-HD7-BT1R-M1

• RT200: RunnTech 200 series single axis joystick;
• T: self-centering movement operation;
• HV3: input: 5Vdc, output: 1.0…2.5…4.0Vdc (proportional output);
• 03: 3 normally open contacts;
• (136): contacts @ -29° to -3°, +29° to +32° or -32° to -3° and +3° to +32°;
• HD7-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.
