RunnTech RT100 Series Single-axis 1 Motion Potentiometer Analog Output Joystick Lever

Part number: RT100-T-1-P2(10K)-02(12)-HD10b4-BT4④⑤RD②③GN-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 1: single axis (1 motion control);
• P2: simple 1 direction output (without center tap);
• 10K: 10K Ohm conductive-plastic potentiometer without solid center tap;
• 02: 2 normally open (NO) contacts in Y axis;
• 12: contacts @ -32° to -29° or -29° to +32°;
• HD10b4: HD10b joystick grip with deadman trigger;
• BT4④⑤RD②③GN: 4 on/off momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech Dual-axis Proportional Joystick Control Lever with 24Vdc Input 0-10Vdc Output

Part number: RT100-T-3-V5(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 3: dual-axis, free movement;
• V5: input: 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

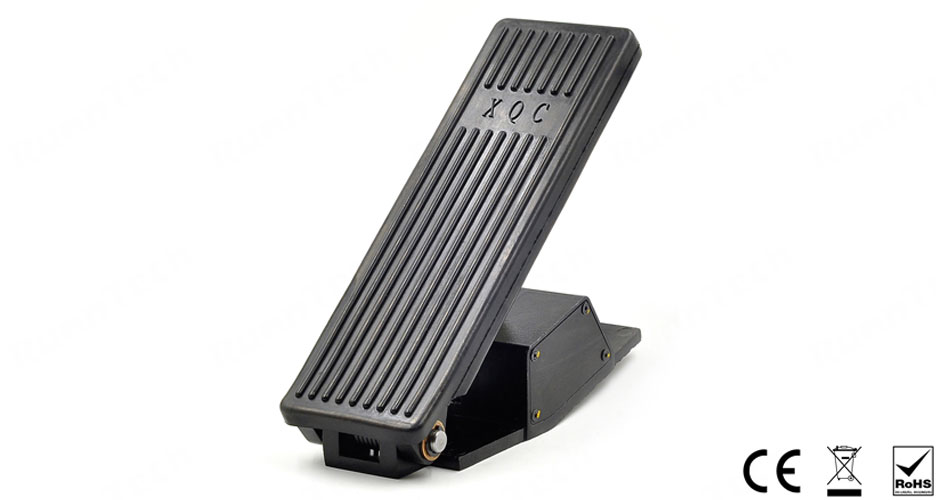

RunnTech Proportional Accelerator Foot Pedal for Aircraft Ground Electric Belt Loader

Part number: F100-T-P2(10K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• P2: simple single side output (without dead zone);
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open contact;
• (2): contacts @ 3° to 25° (one switch signal when pedal is pressed);

RunnTech Single-axis 24Vdc Input Joystick with Switches and 4-20mA Analogue Output

Product configuration: RT200-TS-I1(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis electronic joystick;
• TS: spring return to center and self-lock at center;
• I1: input 24Vdc, output: 4mA~12mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open (NO) switches contacts;
• 89: NO contacts closed @ -32° to -3° or +3° to +32°;
• T: T shape grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

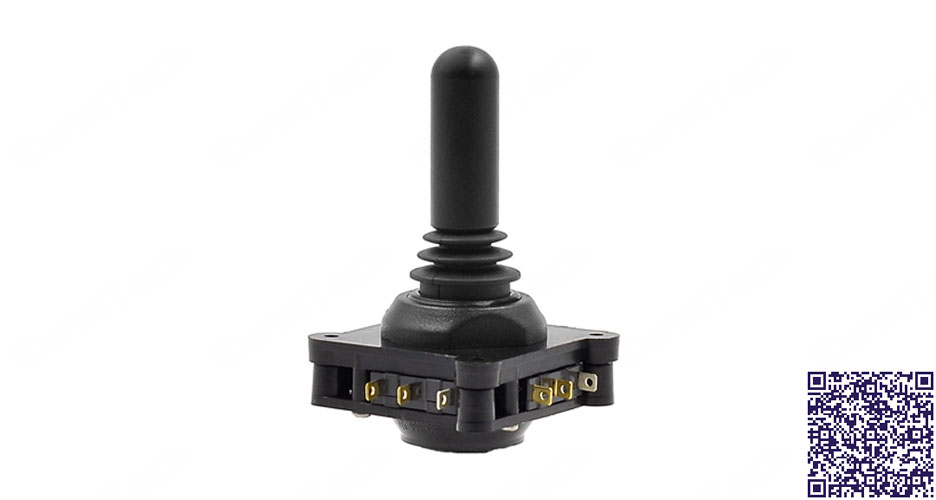

RunnTech Dual-axes Cross Limiter Fitted Switch Joystick with Bushing or Screw Mount

Product configuration: RT800-T-2-02(89)-HD17

• RT800: RunnTech 800 series switch stick joystick;
• T: self-centering to neutral position;
• 2: dual axis, 4 directions control (+ limiter fitted);
• 02(89): 2 sets COM-NO-NC contacts in each axis;
• HD17: RunnTech RT800 joystick grip/handle;

RunnTech Compact Size Single-axes Robust Switch Joystick with Bushing or Screw Mount

Product configuration: RT800-T-1-02(89)-HD18

• RT800: RunnTech 800 series switch stick joystick;
• T: self-centering to neutral position;
• 1: single axis, 2 directions control;
• 02(89): 2 sets COM-NO-NC contacts;
• HD18: RunnTech RT800 joystick grip/handle;

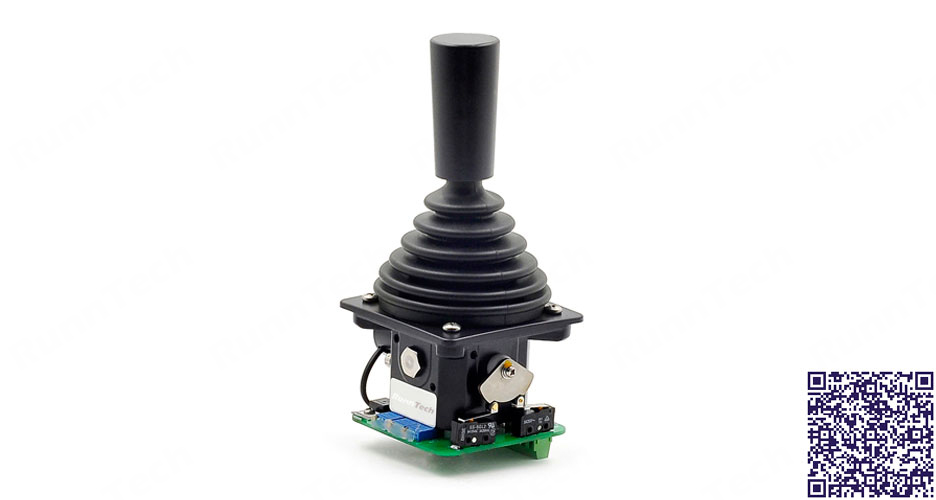

RunnTech X/Y-axis Analog Output Industrial Joystick with Center tapped Potentiometer

Part number: RT100-T-3-V4(10K)-02(89)-HD1-M2

• RT100: RunnTech 100 series multi-axis industrial joystick;
• T: spring return to central position;
• 3: 2 (Y/X) axis free movement;
• V4: input: 24Vdc, output: +5Vdc ~ 0 ~ +5Vdc;
• 10K: 10K ohm precision potentiometer;
• HD1: RunnTech joystick HD1 handle top without pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Compact Analog 2-Axis Thumbstick Hall Effect Joystick with On/Off Pushbutton

Product configuration: RT600-T-2-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect robotic-teach joystick controllers;
• T: self-centering to central position;
• 2: XY axis (2 axis) control;
• 03: XY axis full direction, free movement;
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc (Hall sensor);
• HD12-BT2: RunnTech joystick grip with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2 Axis Industrial Analogue Output Joystick Controller with Ball Shape Handle

Product configuration: RT100-T-3-V5(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series multi-axis industrial joystick;
• T: mechanical spring return to handle centering;
• 3: 2 axis 360° free movement;
• V5: input: 24VVDC, analogue output: 0Vdc – 5Vdc- 10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) contacts in each axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD2: round ball shape joystick handle;
• M1: mounting dimension 56x56mm, central hole: 63mm;

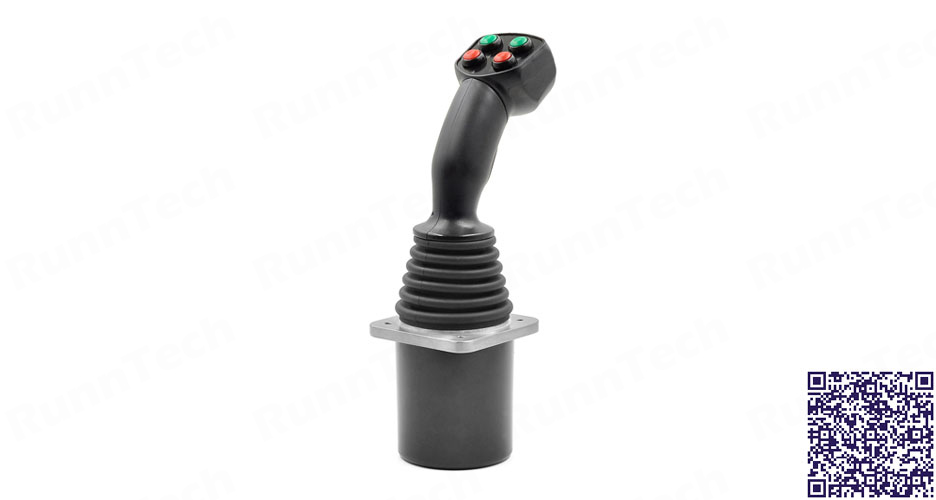

RunnTech Multifunctional Grip 24Vdc Input Joystick X/Y-axis with +/-10Vdc Analog Output

Product configuration: RT01-T-2-V1(10K)-02(89)-HD10b4-BT4-②④G③⑤R-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 2: dual axis cross direction movement (with cross gate);
• V1: input 24Vdc, output: -10Vdc~0~+10Vdc;
• 10K: 2x5K Ohm conductive-plastic potentiometer in each axis;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b4: grip with 1 momentary trigger switch & 4 button;
• M4: mounting dimension 64x64mm, central hole: 83mm.
