RunnTech Triple-axis (Z-axis with Twist Knob) Spring Return to Center Hall Effect Joystick

Part number: RT600-T-3-03-HV3-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controllers;
• T: self-return to center on all 3 axises;
• 3: 3 axis control (twist knob on top of handle for third axis);
• 03: XYZ axis full direction movement;
• HV3: input: 5Vdc, output: 1.0Vdc to 2.5Vdc (center) to 5Vdc;
• HD12-BT2: RunnTech joystick grip with 2 momentary pushbuttons;

• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

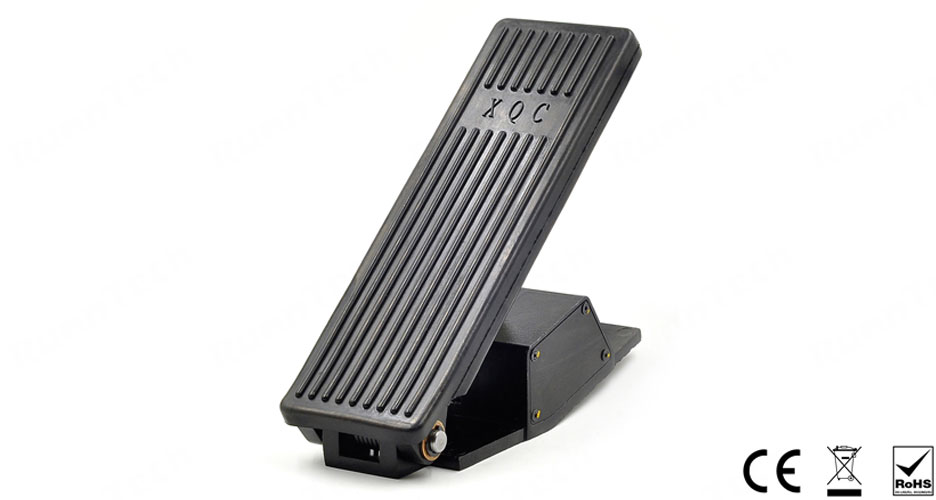

RunnTech Electronic Analogue Floor-mounted Pedal for Throttle or Accelerator Control

Part number: F100-T-P2(10K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: self-return to center when pedal released;
• P2: simple single direction output (without dead zone);
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open direction contact;
• (2): contacts @ 3° to 25° (one switch signal when pedal is pressed);

RunnTech Single Axis Analog Output Joystick Controller for Marine, Mining or Oil Industry

Product configuration: RT200-TS-V1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: self-centering with zero interlock (pull to release the grip);
• V1: 24VDC input, -10V – 0 – +10V proportional output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Heavy Duty Industrial Joystick Control Hydraulic Proportional Valve

Product configuration: RT200-T-V1(10K)-02(89)-HD4-BT1R-M1

• RT200: RunnTech 200 series single-axis joystick;
• T: mechanical self-centering operation;
• V1: 24Vdc input, -10V – 0 – +10V proportional output;
• 02: 2 normally open (NO) contact in both forward and backward;
• 89: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD4-BT1R: grip top with 1 pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Joystick with 3 Directional Contacts and 0 to 10Vdc Analog Output

Product configuration: RT200-TS-V2(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: spring return to center and self-lock at center;
• V2: input: 24Vdc, output: +10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) contacts in each axis;
• 589: NO contacts position, forward, middle and backward;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 3-axis (Z-axis Twist Knob) Hall Effect Joystick for Laser Automation Machines

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controllers;
• T: self-centering to neutral position;
• 3: XYZ axis (3 axis) control (z-axis as a twist knob);
• 03: XYZ axis full direction, free movement;
• HV1: input: DC 5V, output: 0V to 2.5V (center) to 5V DC (proportional);
• HD12-BT2: RunnTech joystick grip with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2-axis Self-return Current Output Potentiometer Joystick for Proportional Valve

Part number: RT02-T-3-I2(10K)-02(89)-HD9-BT9①②③⑤⑦⑨⑩⑪⑫RD-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical self-centering operation;
• 3: dual axis full direction free movement;
• I2: input: 24Vdc, output: 20mA~4mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD9: ergonomic grip with momentry pushbuttons;
• BT9①②③⑤⑦⑨⑩⑪⑫RD: 9 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

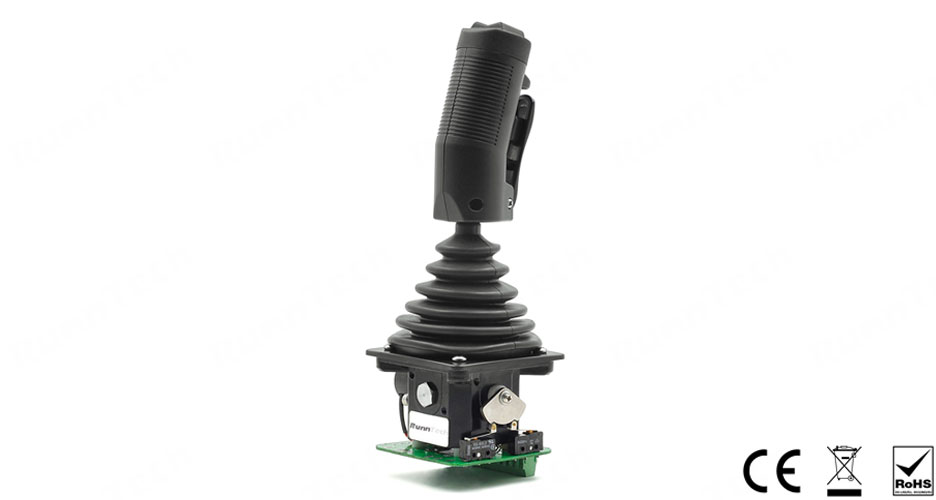

RunnTech RT100 Series Single-axis 1 Motion Potentiometer Analog Output Joystick Lever

Part number: RT100-T-1-P2(10K)-02(12)-HD10b4-BT4④⑤RD②③GN-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 1: single axis (1 motion control);
• P2: simple 1 direction output (without center tap);
• 10K: 10K Ohm conductive-plastic potentiometer without solid center tap;
• 02: 2 normally open (NO) contacts in Y axis;
• 12: contacts @ -32° to -29° or -29° to +32°;
• HD10b4: HD10b joystick grip with deadman trigger;
• BT4④⑤RD②③GN: 4 on/off momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech Dual-axis Proportional Joystick Control Lever with 24Vdc Input 0-10Vdc Output

Part number: RT100-T-3-V5(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 3: dual-axis, free movement;
• V5: input: 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Proportional Accelerator Foot Pedal for Aircraft Ground Electric Belt Loader

Part number: F100-T-P2(10K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• P2: simple single side output (without dead zone);
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open contact;
• (2): contacts @ 3° to 25° (one switch signal when pedal is pressed);
