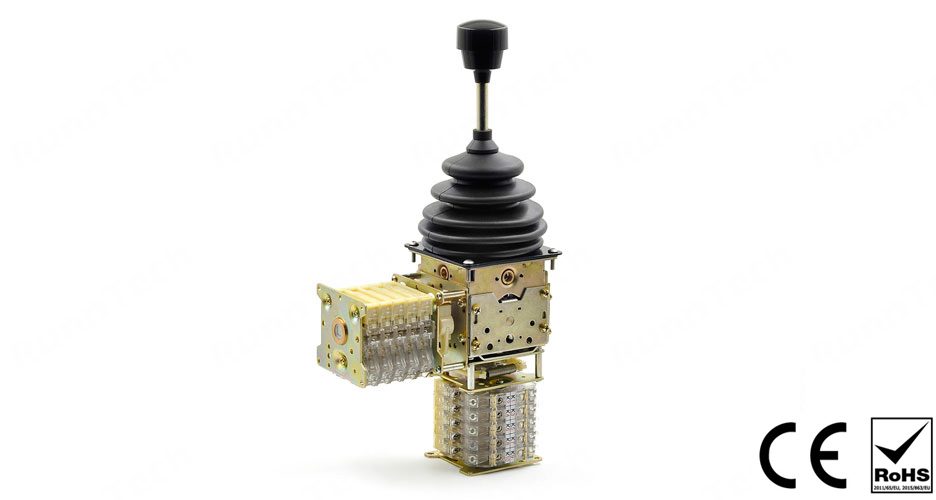

RunnTech 2-axis 3 Steps Crane Joystick for Steel Manufacturer, Shipyard or Ports Control

Product configuration: RT300-TS-2-I-V6(5K)-3(2)-HD39-M2

• RT300: RunnTech 300 series crane joystick controller;
• TS: mechanical spring return to center and zero interlock;
• 2: Y & X axis plus direction (+) movement;
• I: switch assembled vertical direction;
• V6: input: 24Vdc, output 0~2.5~5Vdc;
• 5K: 5K ohm precision potentiometer;
• 3: 3 steps each direction;
• 2: normally open (NO) contacts closed diagram;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

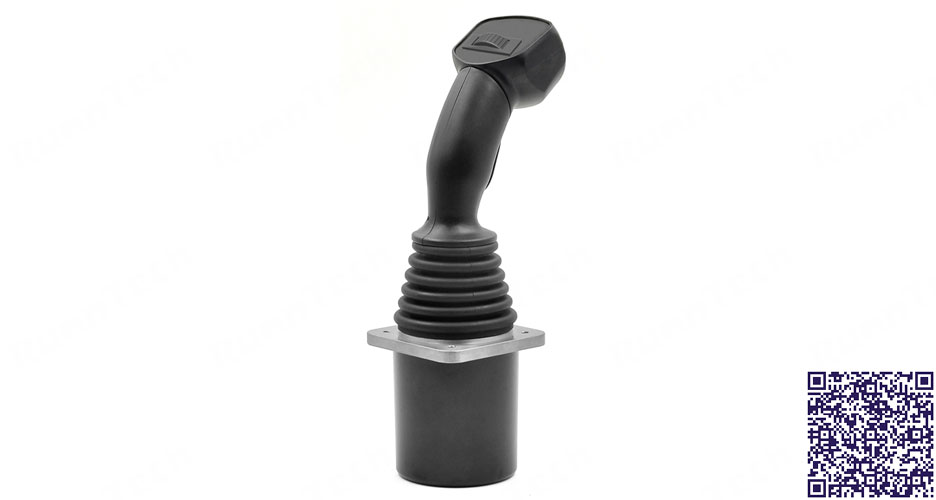

RunnTech 3 Axis (Z-axis: thumbwheel) Full-grip Joystick for Hydraulic Equipment Control

Product configuration: RT01-T-3-HV2(H)-02(89)-HD10b10-W100L-HV2-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 3: X/Y axis full direction free movement;
• HV2: input 5Vdc, output: 0.5~2.5~4.5Vdc;
• 02: 2 normally open contacts in X/Y axis;
• 89: contacts closed at -32° to -3° or +3° to +32°;
• HD10b10: grip backside with 1 momentary trigger;
• W100L-HV2: Z axis with 0.5~2.5~4.5Vdc output thumbwheel.
• M4: mounting dimension 64x64mm, central hole: 83mm.

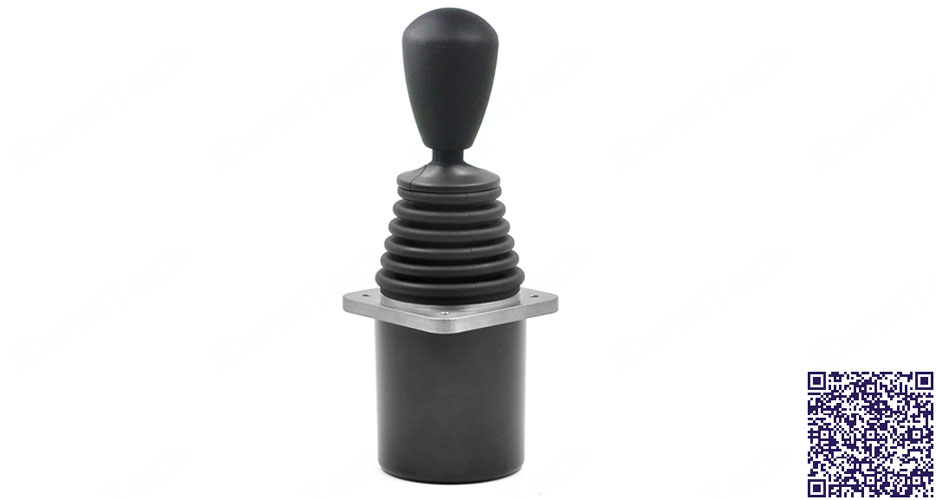

RunnTech 2 axis Plus Directional Movement Joystick Controller for Hydraulic Equipment

P/N: RT01-T-2-HV2(H)-02(66)-HD8-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 2: XY axis plus (+) direction movement;
• HV2: input 5Vdc, output: 0.5~2.5~4.5Vdc;
• 02: 2 normally open contacts in X/Y axis;
• 6: contacts closed at -32° to -3° and +3° to +32°;
• HD8: grip model;
• M4: mounting dimension 64x64mm, central hole: 83mm.

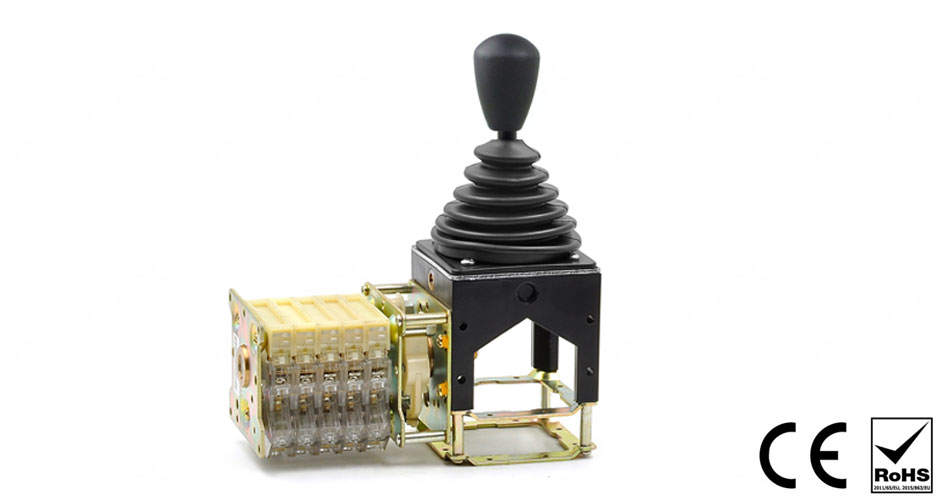

RunnTech Single-axis 2 Steps Friction-hold Joystick Controller for Crane & Hoist Industry

Product configuration: RT300-M-1-L-2(3)-HD8-M5

• RT300: RunnTech 300 series crane joystick controller;
• M: friction hold operation;
• 1: single axis movement (default: Y direction);
• L: switch assembled horizontal;
• 2(3): 2 steps each direction, (3): contacts arrangement;
• HD8: RunnTech joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Axis Self-centering Industrial Joystick Controller 10Vdc Proportional Output

Product configuration: RT100-T-2-V2(10K)-02(66)-HD8-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 2: dual axis plus (+) directional movement;
• V2: input: 24Vdc, output: +10Vdc-0-+10Vdc;
• 10K: 10K ohm precision potentiometer in each axis;
• 02: 2 normally open contacts in each axis;
• 66: contacts closed @ -32° to -3° and +3° to +32° in each axis;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

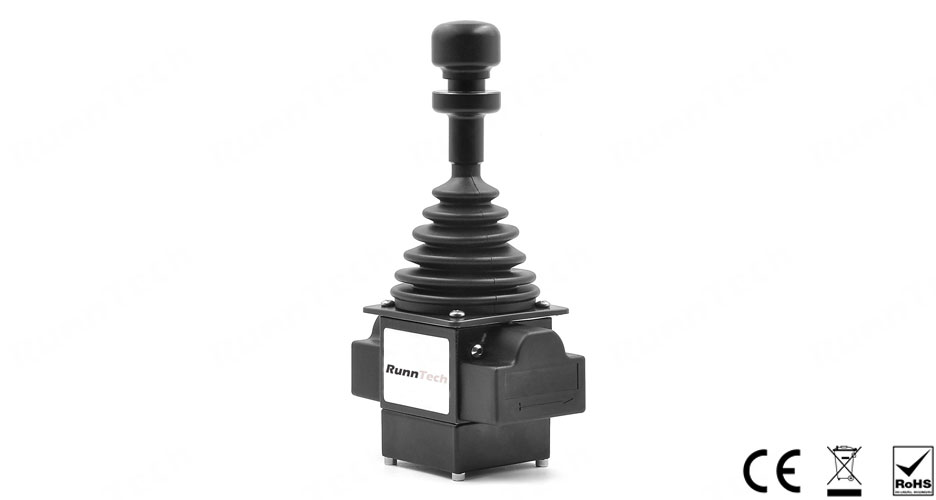

RunnTech Single-axis Heavy-duty 10Vdc Proportional Output Joystick for Hydraulic Valve

Part number: RT200-TS-V2(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: spring return to center with zero lock;
• V2: 24Vdc input, output: +10Vdc~0~+10Vdc;
• 02: 2 normally open directional contacts;
• 89: 2 NO contacts to command the PLC to the left/right direction;
• HD5: joystick grip with zero interlock (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

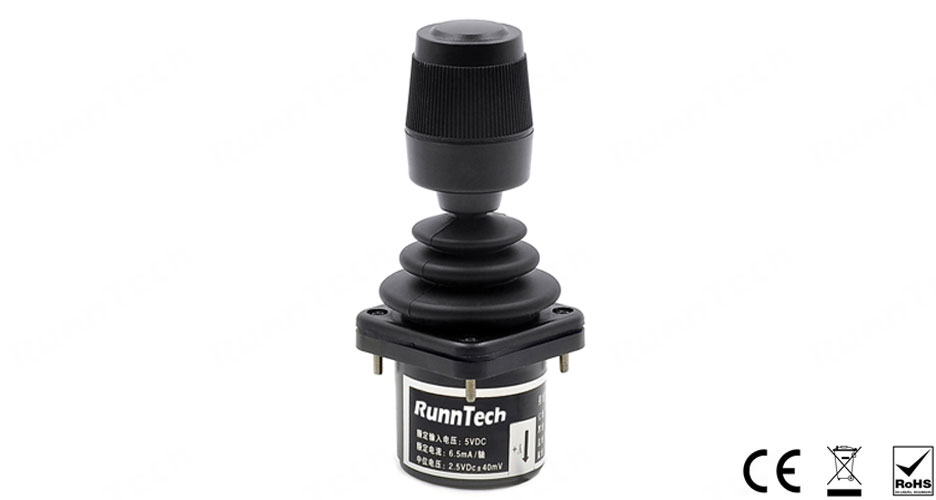

RunnTech 3-axis (Z-axis Twist Knob) Omnidirectional Hall Joystick for Stage Equipment

Part number: RT600-T-3-03-HV2-HD12-BT1-M11

• RT600: RunnTech 600 series Hall effect joystick;
• T: self-centering to neutral position;
• 3: 3 axis (XYZ) control;
• 03: Y/X axis omnidirectional movement, Z: clockwise/counterclockwise (twist knob);
• HV2: input: 5Vdc, output: 0.5Vdc~2.5Vdc~4.5Vdc;
• HD12-BT1: joystick grip with 1 momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

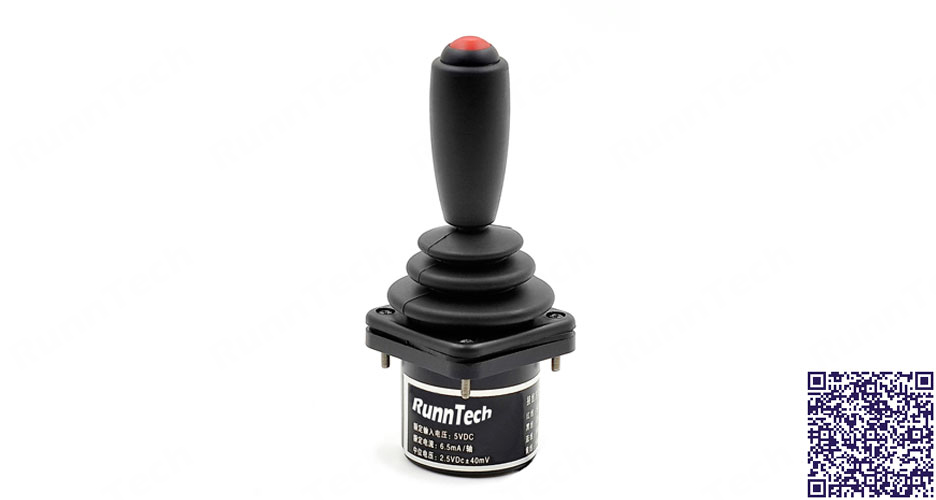

RunnTech Single-axis Miniature Hall Joystick with Momentary Button for Stage Equipment

Part number: RT600-T-1-01-HV2-HD13-BT1-M11

• RT600: RunnTech 600 series hall effect miniature joystick;
• T: self-centering operation;
• 1: single-axis control;
• 01: Y or X axis movement;
• HV2: input: 5Vdc, output: 0.5Vdc~2.5Vdc~4.5Vdc;
• HD13-BT1: joystick grip TOP with 1 momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 3-axis (Z-axis Twist Knob) Joystick with 2 Pushbutton for Vector Control System

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: XYZ axis (3 axis) control (z-axis with a twist knob);
• 03: XYZ axis omnidirectional movement;
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2 Axis Hall Effect Sensor Joystick with Deadman Trigger and Momentary Button

Part number: RT100-T-2-HV1-02(89)-HD10b2-BT2③R②G-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: mechanical spring return to central;
• 2: dual axis, plus (+) directional operation;
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: NO contacts closed at +/- direction in each axis;
• HD10b2: HD10 grip with deadman trigger;
• BT2②G③R: 2 momentary push buttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;
