RunnTech Single-axis Analog Joystick with 10Vdc-0-10Vdc Output for Mining Application

Part number: RT200-MS-V2(10K)-03(589)-HD6-M1

• RT200: RunnTech RT200 series single-axis joystick controller;
• MS: friction hold and center-lock;
• V2: input: 24Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) switches signal in each axis;
• 589: 3 NO switches signal for forward, center and backward movement;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension 85x85mm, central hole: 63mm.

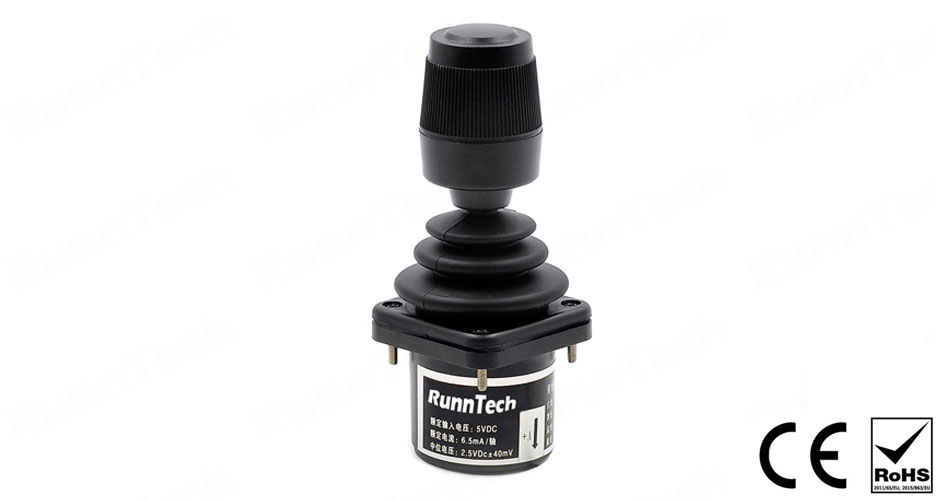

RunnTech 3 Axis Hall Effect Joystick 0-2.5-5Vdc Output with Twist Knob for CCTV Control

Product configuration: RT600-T-3-03-HV1-HD12-M11

• RT600: RunnTech RT600 series contactless hall effect joystick;
• T: self-centering (automatically return to center);
• 3: 3 axis (XYZ) control;
• 03: X/Y axis omnidirectional, Z axis clockwise/counterclockwise movement;
• HV1: input: 5Vdc, output: 0~2.5~5Vdc;
• HD12: twist knob on top of grip;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

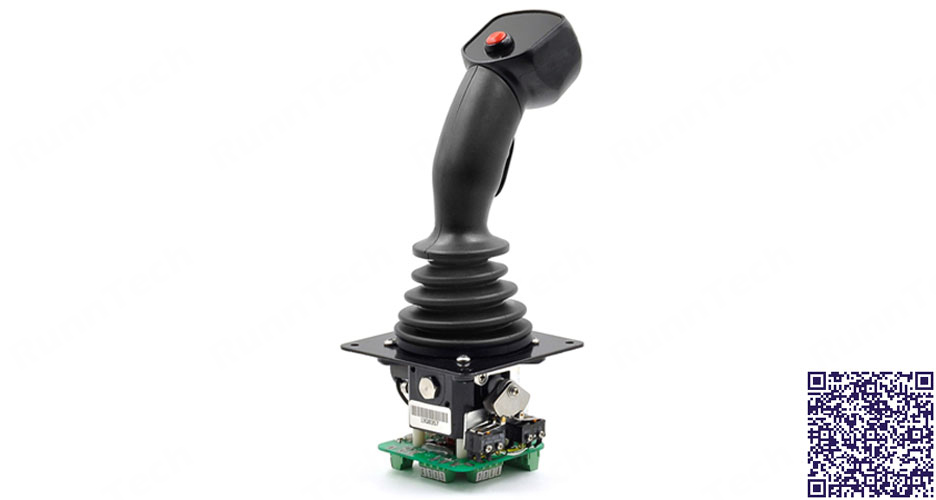

RunnTech 2-axis Self-centering Proportional Joystick with Pushbutton & Deadman Trigger

Product configuration: RT100-T-3-HV1-02(89)-HD10b1-BT1②R-M7

• RT100: RunnTech 100 series multi-axis industrial joystick;
• T: self-returns to center when grip released;
• 3: dual axis 360° omni-directional movement;
• HV1: input DC 5V, output: 0~2.5~5V (hall sensor);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b1: joystick grip with 1 deadman trigger;
• BT1②R: 1 momentary pushbutton;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech 2-axis Self-centered Ball Handle Electronic Joystick for Proportional Solenoid

Product configuration: RT100-T-3-V6(10K)-02(89)-HD2-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centered when handle released;
• 3: dual axis omni-directional movement;
• V6: input: 24VVdc (12Vdc), output: 0 – 2.5 – 5Vdc;
• 10K: 10K ohm precision potentiometer (with dead zone);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 2-axis 3 Steps Crane Joystick for Steel Manufacturer, Shipyard or Ports Control

Product configuration: RT300-TS-2-I-V6(5K)-3(2)-HD39-M2

• RT300: RunnTech 300 series crane joystick controller;
• TS: mechanical spring return to center and zero interlock;
• 2: Y & X axis plus direction (+) movement;
• I: switch assembled vertical direction;
• V6: input: 24Vdc, output 0~2.5~5Vdc;
• 5K: 5K ohm precision potentiometer;
• 3: 3 steps each direction;
• 2: normally open (NO) contacts closed diagram;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

RunnTech 3 Axis (Z-axis: thumbwheel) Full-grip Joystick for Hydraulic Equipment Control

Product configuration: RT01-T-3-HV2(H)-02(89)-HD10b10-W100L-HV2-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 3: X/Y axis full direction free movement;
• HV2: input 5Vdc, output: 0.5~2.5~4.5Vdc;
• 02: 2 normally open contacts in X/Y axis;
• 89: contacts closed at -32° to -3° or +3° to +32°;
• HD10b10: grip backside with 1 momentary trigger;
• W100L-HV2: Z axis with 0.5~2.5~4.5Vdc output thumbwheel.
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech 2 axis Plus Directional Movement Joystick Controller for Hydraulic Equipment

P/N: RT01-T-2-HV2(H)-02(66)-HD8-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 2: XY axis plus (+) direction movement;
• HV2: input 5Vdc, output: 0.5~2.5~4.5Vdc;
• 02: 2 normally open contacts in X/Y axis;
• 6: contacts closed at -32° to -3° and +3° to +32°;
• HD8: grip model;
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech Single-axis 2 Steps Friction-hold Joystick Controller for Crane & Hoist Industry

Product configuration: RT300-M-1-L-2(3)-HD8-M5

• RT300: RunnTech 300 series crane joystick controller;
• M: friction hold operation;
• 1: single axis movement (default: Y direction);
• L: switch assembled horizontal;
• 2(3): 2 steps each direction, (3): contacts arrangement;
• HD8: RunnTech joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Axis Self-centering Industrial Joystick Controller 10Vdc Proportional Output

Product configuration: RT100-T-2-V2(10K)-02(66)-HD8-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 2: dual axis plus (+) directional movement;
• V2: input: 24Vdc, output: +10Vdc-0-+10Vdc;
• 10K: 10K ohm precision potentiometer in each axis;
• 02: 2 normally open contacts in each axis;
• 66: contacts closed @ -32° to -3° and +3° to +32° in each axis;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Heavy-duty 10Vdc Proportional Output Joystick for Hydraulic Valve

Part number: RT200-TS-V2(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: spring return to center with zero lock;
• V2: 24Vdc input, output: +10Vdc~0~+10Vdc;
• 02: 2 normally open directional contacts;
• 89: 2 NO contacts to command the PLC to the left/right direction;
• HD5: joystick grip with zero interlock (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;
