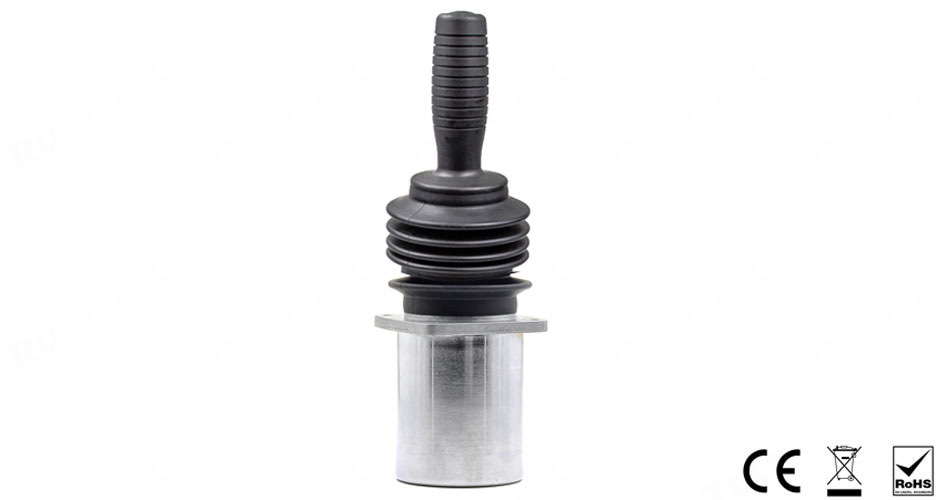

RunnTech 2-axis Industry Standard 4-20mA Output Joystick for Electro Hydraulic Control

Part number: RT100-T-1-I1(10K)-02(89)-HD10a4-BT4④⑤RD②③GN-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 1: single axis movement (1-dimensional coordinate);
• I1: input 24Vdc, output: 4 wire 4mA-12mA-20mA (amperage output);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open (NO) contacts;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a4: HD10 joystick grip without deadman trigger;
• BT4④⑤RD②③GN: 4 on/off momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

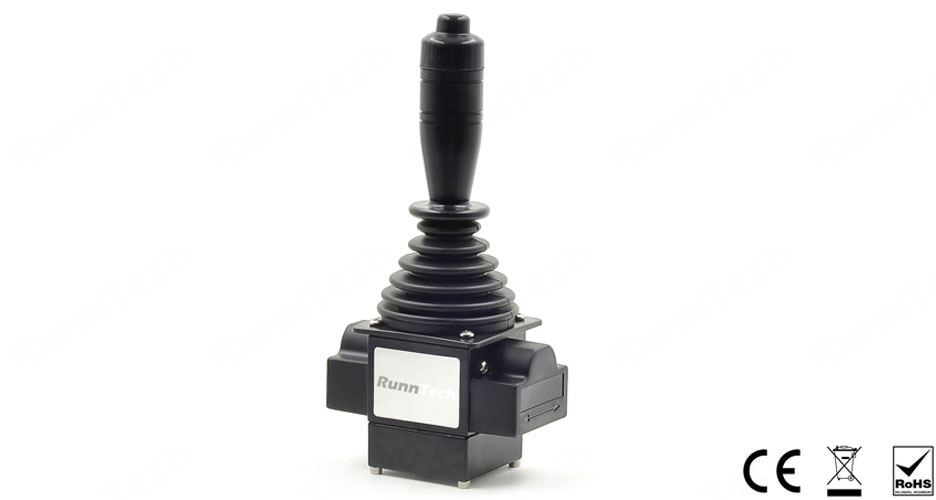

RunnTech Single-axis 4-20mA per Quadrant Industrial Joystick for Control System Panels

Product configuration: RT200-MS-I2(10K)-02(89)-HD6-M2

• RT200: RunnTech 200 single axis joystick;
• MS: friction hold movement and zero interlock;
• I2: input: 24Vdc, output: 20mA~4mA~20mA;
• 10K:10K ohm precision potentiometer;
• 02: 2 normally open directional contacts signals;
• 89: directional contact closed @ -32° to -3° (9) or 3° to 32° (8);
• HD6: knob with mechanical zero-interlock (press to release joystick);
• M2: mounting dimension: 85x85mm, central hole: 63mm;

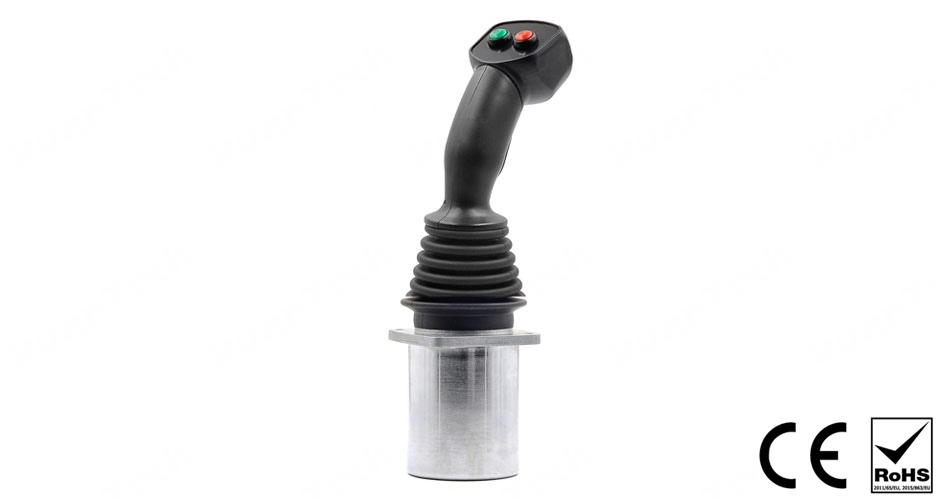

RunnTech Single-Axis Self-centering 0-5Vdc Proportional Control Joystick for VR Simulator

Product configuration: RT02-T-1-HV1-02(89)-HD10b2-BT2③②R-M6

• RT02: RunnTech 02 series joystick controller;
• T: self-centering movement operation;
• 1: single axis movement;
• HV1: input: 5Vdc, output: 0Vdc~2.5Vdc~5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a2: grip with 2 push buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm;

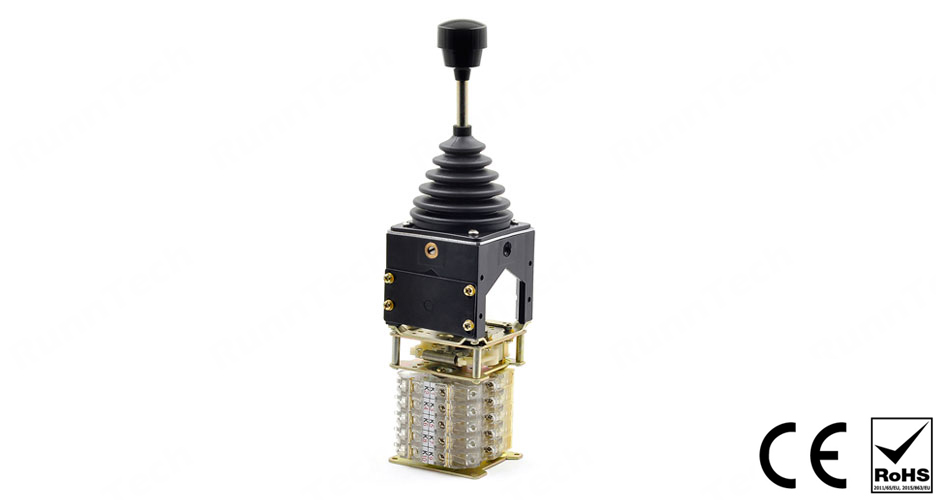

RunnTech 2 Axis Crane Joystick with Mechanical Zero Interlock for Steel Mills Factories

Product configuration: RT300-TS-2-I-4(1)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• TS: self-centered operation with zero interlock;
• 2: 2 axis, cross direction movement;
• I: switch assembled vertical;
• 4: 4 steps each direction;
• 1: NO contacts closed arrangement;
• HD39: Knob with mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Axis Voltage Output Joystick with Cross Gate for Woodworking Equipment

Product configuration: RT100-T-2-V5(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross directional operation (with cross gate);
• V5: input: 24Vdc, output: 0Vdc to 5Vdc (center) to +10Vdc;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 2 Axis -10V to +10V Analog Output Joystick for Laboratory Testing Equipment

Product configuration: RT100-T-2-V1(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross directional operation (with cross gate);
• V1: input: DC24V, output: -10V to 0V (center) to +10V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

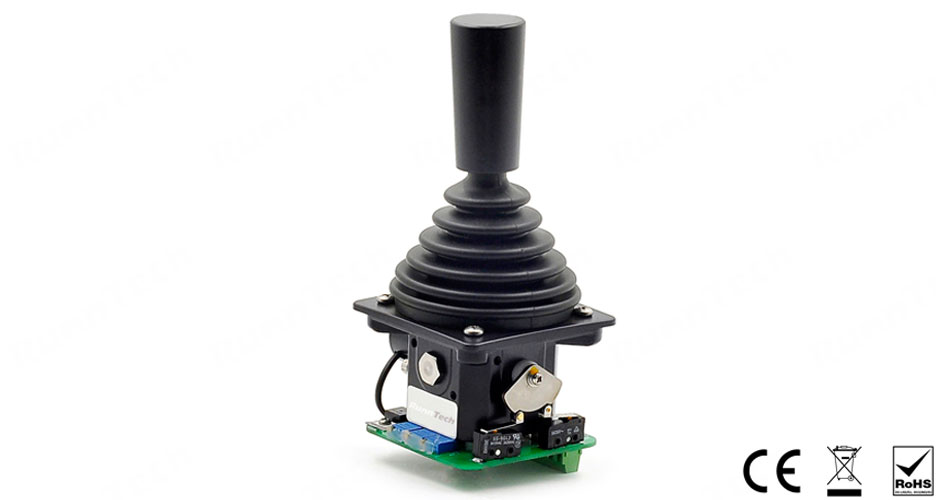

RunnTech 2 Axis Industry Standard 4-20mA Output Joystick (12mA as the centre current)

Part number: RT100-T-2-I1(10K)-02(89)-HD10b4-BT4④⑤RD②③GN-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 2: dual axis cross direction control(with cross gate);
• I1: input 24Vdc, output: 4 wire 4mA-12mA-20mA (amperage output);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open (NO) contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD10b4: HD10b joystick grip with deadman trigger;
• BT4④⑤RD②③GN: 4 on/off momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech Single-axis Friction Brake 0-10Vdc Output Joystick for Inverter Electric Control

Part number: RT200-MS-V5(10K)-02(13)-HD6-M1

• RT200: RunnTech RT200 series single-axis joystick controller;
• MS: friction hold with mechanical zero interlock;
• V5: input: 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K Ohm conductive plastic track potentiometer;
• 02: 2 normally open (NO) switches signal;
• 13: 2 NO switches signal closed position;
• HD6: Knob with mechanical zero interlock (press to release joystick);
• M1: mounting dimension 85x85mm, central hole: 63mm.

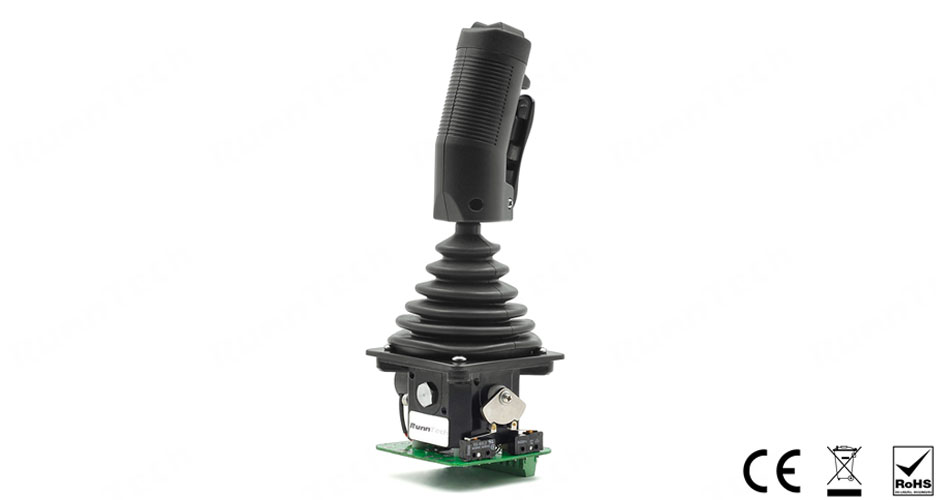

RunnTech 2-axis Friction Joystick with Amperage Output for Electro-hydraulic Applications

Part number: RT02-M-2-I2(10K)-03(589)-HD10b3-BT3④②GN③RD-M6-50CM

• RT02: RunnTech 02 series robust joystick controller;
• M: friction brake movement;
• 2: dual axis with cross gate;
• I2: input 24Vdc, output: 20mA~4mA~20mA;
• 10K: 10K Ohm conductive plastic track potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: 2 directional switches + 1 center detecting switch in each axis;
• HD10b3: grip backside with deadman trigger;
• BT3④②GN③RD: 3 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single-axis 4-20mA Brake Control Joystick with Forward and Reverse Signals

Product configuration: RT200-MS-I2(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis joystick controller;
• MS: friction brake and center-lock;
• I2: input 24Vdc, output: 20mA~4mA~20mA;
• 10K: 10K Ohm conductive plastic track potentiometer;
• 02: 2 normally open (NO) switches contacts;
• 89: forward and reverse directional signal switches;
• T: T shape grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;
