Category Archives: News & Events

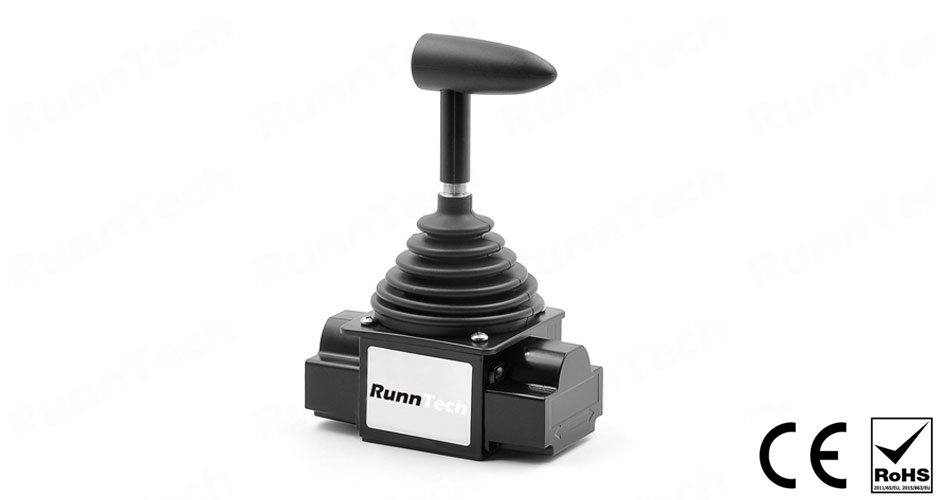

RunnTech Single-axis 10Vdc…0…10Vdc Joystick with T Shape Grip for Timber Machinery

Product configuration: RT200-MS-V2(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis joystick controller;
• MS: friction hold with center-lock;
• V2: input: 24Vdc, output +10dc…~0…+10Vdc;
• 10K: 10K Ohm conductive plastic track potentiometer;
• 02: 2 normally open (NO) switches contacts;
• 89: forward and reverse directional signal switches;
• T: T shape grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Industrial Joysticks & Controllers obtained the European CE certificate

We are proud to announce that all RunnTech industrial joysticks & controllers have successfully passed tests and obtained the European CE certificate.

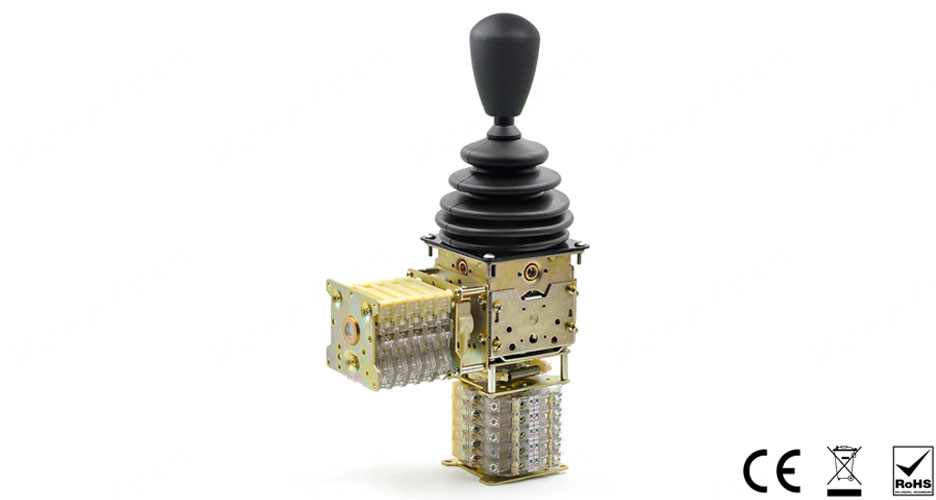

RunnTech 2 Axis Crane Joystick 4 Steps in Each Direction with 10K Ohm Potentiometer

Product configuration: RT300-T-2-I-4(5)-P1(10K)-HD8-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centered operation;
• 2: 2 axis, cross direction movement;
• I: switch assembled vertical;
• 4: 4 steps each direction;
• 5: NO contacts closed arrangement;
• P1: simple 2 directions output (with dead zone);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• HD8: joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

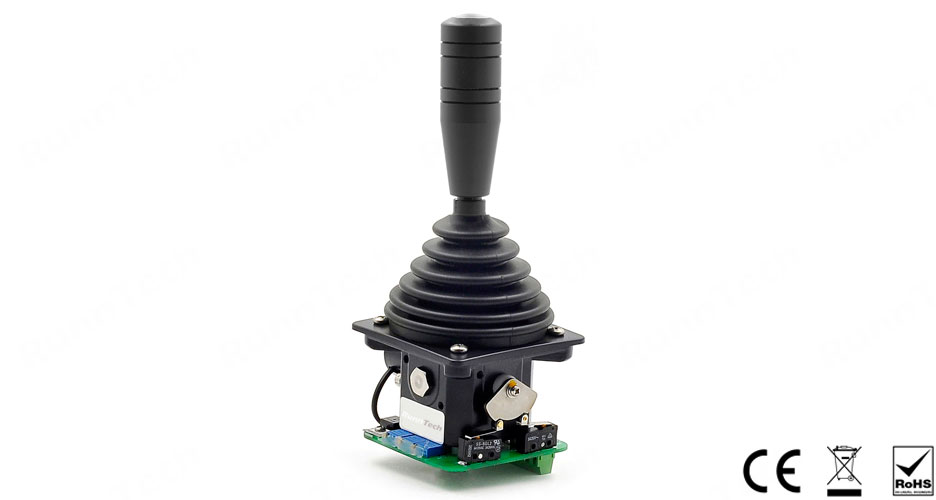

RunnTech Single-axis Spring-return Joystick 0…10Vdc Output for Variable Speed Motion

Product configuration: RT100-T-1-V5(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 1: single axis, forward and backward movement;
• V5: input: 24Vdc, output: 0…5Vdc…10Vdc;
• 02: 2 NO (normally open) contacts;
• 10K: 10K ohm precision potentiometer (with center tapped);;
• 89: NO contacts @ -32° to -3° or +3° to +32°;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 2-axis Joystick 4…12…20mA Proportional Outputs to Control Hydraulic Valves

Product configuration: RT100-T-2-I1(10K)-02(89)-HD2-M1

• RT100: RunnTech 100 series industrial joystick;
• T: spring return to center operation;
• 2: dual axis, plus (+) direction movement;
• I1: input DC 24V/12V, output: 4mA~12mA~20mA;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

Join us at CeMAT Asia 2019 Expo

Join us at CeMAT Asia 2019 Expo | Shanghai, Oct 23 – 26‎

We look forward to seeing you on 23-26 Oct.2019 at Shanghai New Int’I Expo Centre.

Booth number:W4 D1-5

Hope to see you there!

RunnTech Single Axis 0-20mA Analog Output Joystick Controller for Oil or Marine Industry

Product configuration: RT100-T-1-I1(0-20mA)(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 1: single axis, forward and backward movement;
• I1(0-20mA): input: DC24V, output: 0mA…10mA…20mA;
• 02: 2 NO (normally open) contacts;
• 89: NO contacts @ -32° to -3° or +3° to +32°;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 2 Axis 24Vdc Input -10Vdc…10Vdc Output Joystick Controller with Ball Handle

Product configuration: RT100-T-2-V1(10K)-02(89)-HD2-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centered when handle released;
• 2: dual axis plus direction movement (with + limiter);
• V1: input: 24VVdc, output: -10Vdc…0…10Vdc;
• 10K: 10K ohm precision potentiometer (with dead zone);
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single Axis Hall Effect Joystick Ergonomic Grip with 4 Momentary Pushbuttons

Part number: RT100-T-1-HV2(H)-01(6)-HD10a4-BT4④⑤RD②③GN-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 1: single axis movement (1-dimensional coordinate);
• HV2: input 5Vdc, output: 0.5~2.5~4.5Vdc;
• 01: 1 normally open (NO) contacts;
• 6: normally open (NO) contacts closed @ -32° to -3° and +3° to +32°;
• HD10a4: HD10 joystick grip without deadman trigger;
• BT4④⑤RD②③GN: 4 on/off momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech 2 axis Omnidirectional 4..12..20mA Analog Output Joystick for Aerial Fire Truck

P/N: RT01-T-3-I1(10К)-02(66)-HD1-M4

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 3: XY axis omnidirectional movement;
• I1: input: 24Vdc, output:4..12..20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02: 2 normally open contacts in X/Y axis;
• 6: contacts closed at -32° to -3° and +3° to +32°;
• HD1: grip top without pushbutton;
• M4: mounting dimension 64x64mm, central hole: 83mm.
