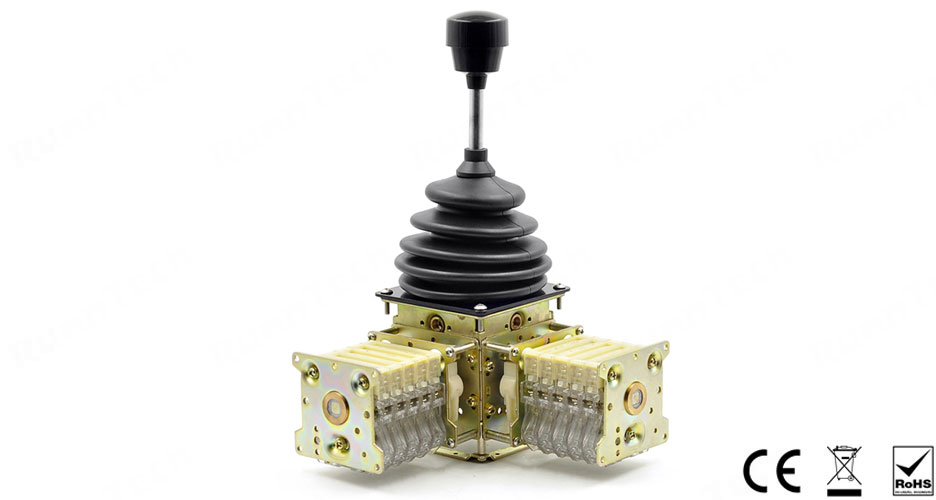

RunnTech 2 Axis Crane Command Controller Spring Return with 4 Steps Each Direction

Part number: RT300-TS-3-L-4(2)-HD39-M5

• RT300: RunnTech RT300 series joystick (master controller);
• MS: stay-in-place mechanism (joystick should stay in the position where you released it);
• 2: 2 axis, cross directions movement (with cross limiter plate);
• L: switch assembled horizontal;
• 5(1): 5 steps in each direction, (1): switches contact arrangement;
• HD39: grip with latch for mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

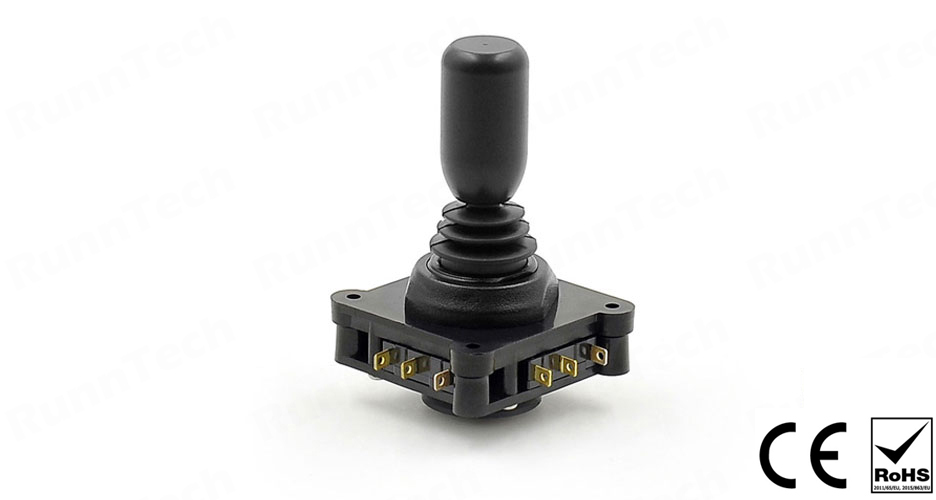

RunnTech Spring Return Finger Switchstick Joystick with Microswitches for 2 Axis Control

Product configuration: RT800-T-3-02(89)-HD18

• RT800: RunnTech 800 series switch stick joystick;
• T: self-centering to neutral position;
• 3: dual axis, omnidirectional control;
• 02(89): 2 sets COM-NO-NC contacts;
• HD18: RunnTech RT800 joystick grip/handle;

RunnTech 3 Axis Spring Return Hall Effect Finger Joystick for CCTV Surveillance Control

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis) control (z-axis with a twist knob);
• 03: omnidirectional movement;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

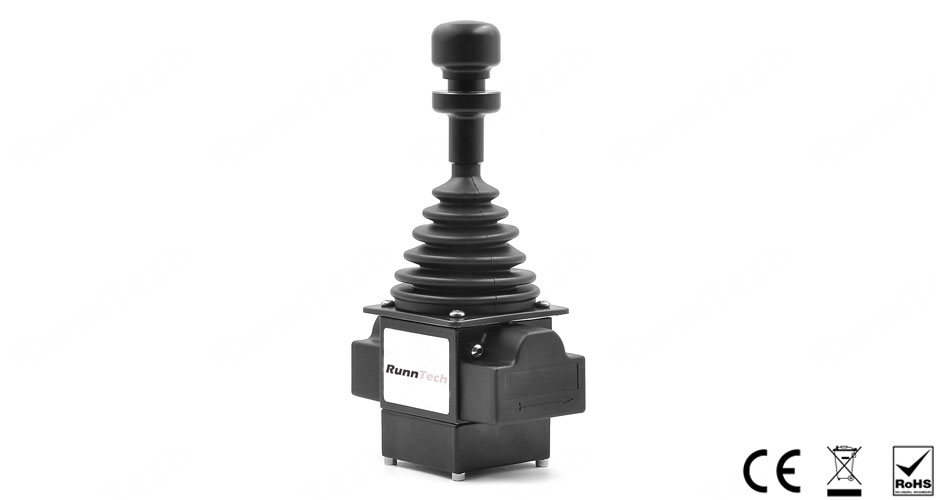

RunnTech Single-axis -10V to 10V Analog Joystick for Mechanical & Industrial Engineering

Part number: RT200-TS-V1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• MS: friction hold with zero interlock;
• V1: input: 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 2x5K ohm precision potentiometer;
• 02: 2 NO (normally open) contacts;
• 89: 2 +/- directional switches;
• HD5: handle with zero position mechanical interlock (lift to release the joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2-axis Hall Sensor Hand-operated Joystick Controller for Simulator Equipment

Product configuration: RT100-T-3-HV1-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to central operation;
• 3: dual axis movement omnidirectional movement;
• HV1: input: DC5V, output: 0V…2.5V…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD15-BT1: grip backside with deadman trigger;
• QTOT: grip top with rocker switch;
• M1: mounting dimension 56x56mm, central hole: 63mm;

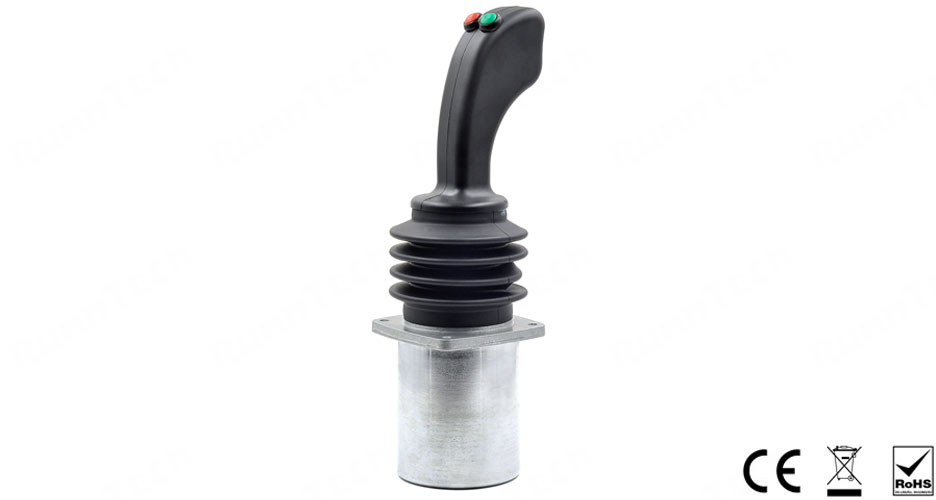

RunnTech Single-axis Potentiometer Joystick for Wood Machine Frequency Converter

Product configuration: RT100-T-1-P1(10k)-02(89)-HD1-M1

• RT100: RunnTech 100 series Multi-axis controller;
• T: mechanical spring return to center position;
• 1: single axis movement;
• P1: simple 2 directions output (with dead zone);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1: control-handle without pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech F200 Proportional Throttle Pedal for Agricultural Machinery and Equipment

Product configuration: F200-T-HV2-01(1)

• F200: F200 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• HV2: input: 5Vdc, output: 0.5Vdc…2.5Vdc…4.5Vdc;
• 01: 1 normally open contacts;
• (1): contacts @ 0° to 3° (one switch signal when pedal is pressed);

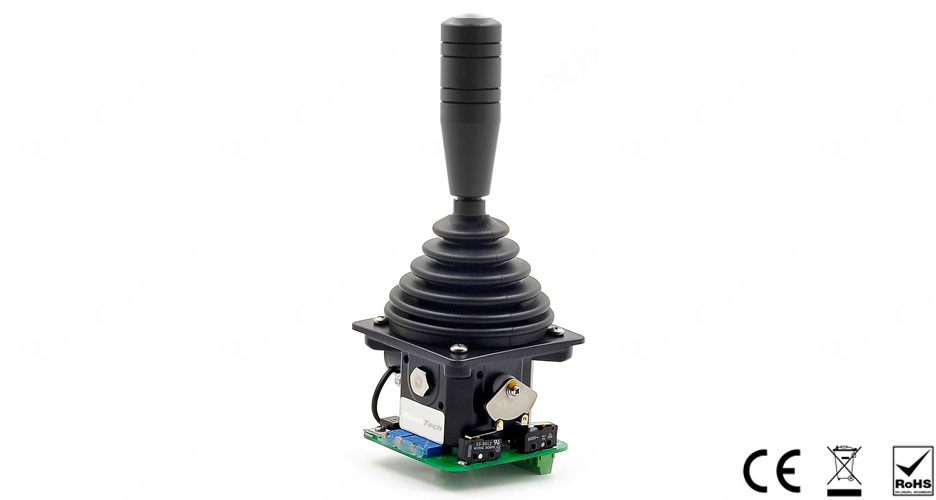

RunnTech 2 Axis, 4 Directions (up/down, left/right) Analog Output with 24V Input Joystick

Product configuration: RT100-T-2-V1(10K)-02(89)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross directional operation (with cross gate);
• V1: input: DC24V, output: -10V to 0V (center) to +10V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

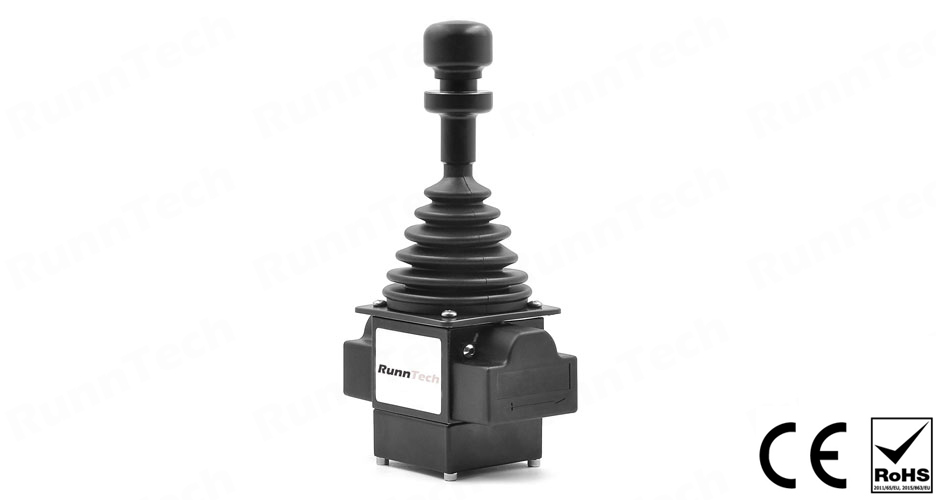

RunnTech Single-axis 4…12…20mA Analogue Output Joystick for Stepper Motor Control

Product configuration: RT100-T-1-I1(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-return to center position operation;
• 1: single axis movement (default: Y axis);
• I1: input: 24Vdc, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02: 2 normally open contacts in Y axis;
• (8): contacts @ +3° to +32° (directional signal);
• (9): contacts @ -3° to -32° (directional signal);
• HD1: HD1 grip top without momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single-axis -10V…0…10V Analog Output Joystick with 2*5K Ohm Potentiometer

Product configuration: RT100-T-1-V1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center operation;
• 1: single axis control;
• V1: input: 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 2x5K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.
