RunnTech 2 Axis 4-20mA Proportional Industrial Joystick for Crane & Hoisting Application

Product configuration: RT100-T-3-I2(10K)-03(589)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: mechanical spring return to center when release operation;
• 3: dual axis, free movement operation;
• I2: input: DC24V, output: 20mA~4mA~20mA;
• 03: 3 normally open contacts in each axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

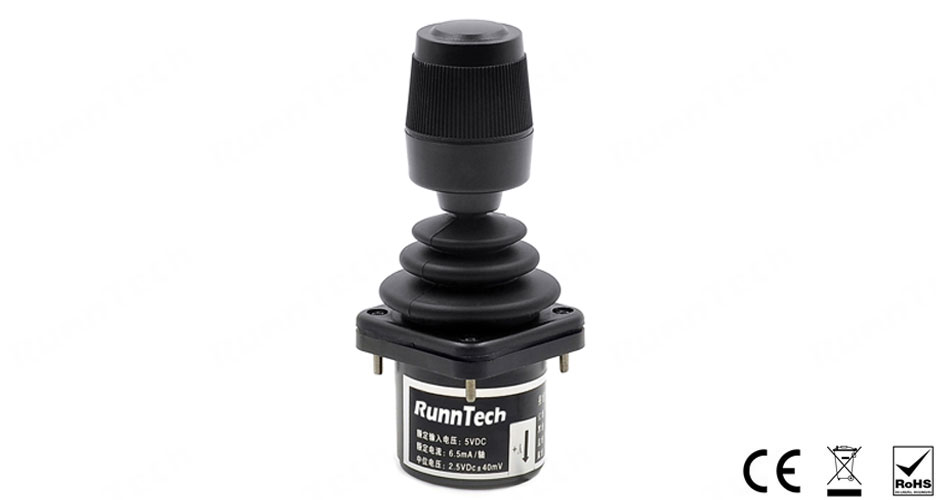

RunnTech 3 Axis XYZ Dimensional Coordinate Hall Effect Joystick for Delta Robot Control

Part number: RT600-T-3-03-HV1-HD12-BT1-M11

• RT600: RunnTech 600 series Hall effect joystick;
• T: self-centering to central position;
• 3: 3 axis (XYZ) control;
• 03: Y/X axis omnidirectional movement, Z: clockwise/counterclockwise (twist knob);
• HV1: input: 5Vdc, output: 0…2.5…5Vdc;
• HD12-BT1: joystick grip with 1 momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2 Axis Joystick with Trigger, Buttons & RS232 Interface for Motion Simulators

Product configuration: RT02-T-3-HV1-02(89)-HD10b2-BT2③②R-M6-RS232

• RT02: RunnTech 02 series joystick controller;
• T: self-centering movement operation;
• 3: dual axis omnidirectional control;
• HV1: input: 9…36Vdc, output: RS232;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10B2: grip with trigger and 2 buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm;

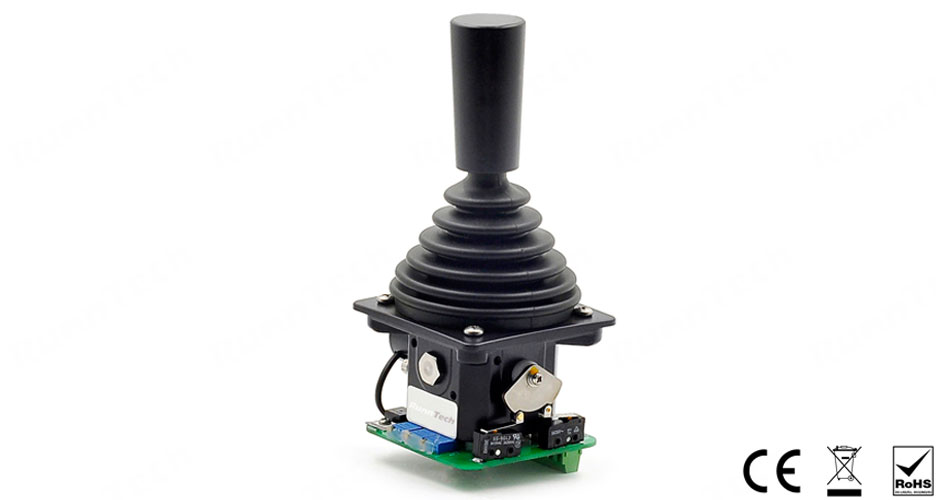

RunnTech Single-axis 4-20mA with 2 NO Direction Contacts Joystick for Vessel Control

Product configuration: RT100-T-1-I2(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-return to center position operation;
• 1: single axis movement (default: Y axis);
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02: 2 normally open contacts in Y axis;
• (8): contacts @ +3° to +32° (directional signal);
• (9): contacts @ -3° to -32° (directional signal);
• HD1: HD1 grip top without momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single-axis -10V…0…+10V Analogue Output Industrial Joystick with 24Vdc Input

Product configuration: RT100-T-1-V1(10K)-03(589)-HD4-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 1: single axis movement (default: up/down);
• V1: input: DC24V, output: -10V…0…+10V;
• 03: 3 normally open contacts;
• 589: contacts @ center and up and down directions;
• HD4: grip top without momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single-axis 4…20mA Joystick for Tests & Measurements of Electrical Systems

Product configuration: RT200-TS-I2(10K)-02(89)-HD5-M2

• RT200: RunnTech 200 single axis joystick;
• TS: spring return and lock-in center;
• I2: input DC24V, output: 20mA…4mA…20mA;
• 10K:10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: grip with center-lock (lift to release);
• M2: mounting dimension: 85x85mm, central hole: 63mm;

RunnTech Single-axis 10K Potentiometer Analog Output Joystick with Center-lock Handle

Product configuration: RT200-TS-P1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick;
• TS: mechanical spring return with center lock;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with center lock (lift to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 7919040041 Joystick for Linde Raising/Lowering or Forward/Backward Control

Fits to the following Linde models:
Linde 116 R14X/R16X/R17X/R17XHD, Linde 116-02 R14X/R16X/R17X/R17XHD
Linde 318 C90/5,C90/6,C90/7,C90/8, Linde 335-02 E14/E16/E18/E20-02
Linde 336-31 E25/E30, Linde 336-02/03 E20/E25/E30
Linde 346 E1820/E20P, Linde 359 H100/H120/H140/H150/H160/H180-T2/T3
Linde 386 E12/E14/E15/E16/E18/E20, Linde 391-01 H14/H16/H18/H20
Linde 392-01 H20/H25, Linde 393-01 H25/30/35
Linde 394-01 H40/H45/H50-500, Linde 396-01 H50/H60/H70/H80

RunnTech Multi-axis Full Grip Joystick with 10K Potentiometer to Control DC Motor Speed

Part number: RT02-T-3-V1(10K)-03(589)-HD9-BT2③R②G-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical spring return to zero position;
• 3: dual axis omnidirectional movement;
• V1: input: 24VDC, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: 2 direction signals + 1 zero position signal in each axis;
• HD9: grip with multi-function pushbuttons;
• BT2⑥R④G: 2 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

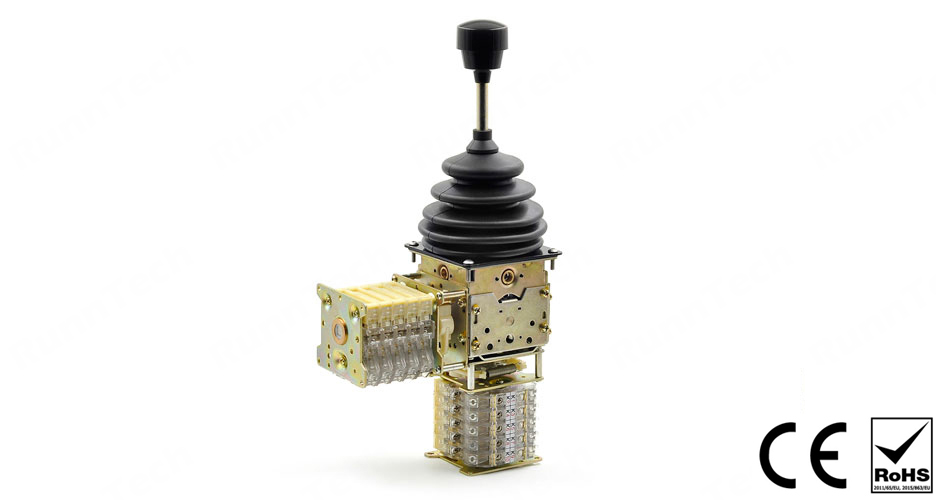

RunnTech Single-axis Spring-return to Zero Position Mechanism Hoists Joystick Controller

Product configuration: RT300-T-1-I-4(1)-HD7-BT1R-M5

• RT300: RunnTech 300 series joystick controller;
• T: self-return to zero position;
• 1: single axis,2 directions movement;
• I: switch assembled vertical;
• 4(1): 4 steps each direction, (1): contact arrangement;
• HD7-BT1R: RunnTech HD7 grip top with pushbutton;
• M5: mounting dimension: 85x85mm, central hole: 78mm.
