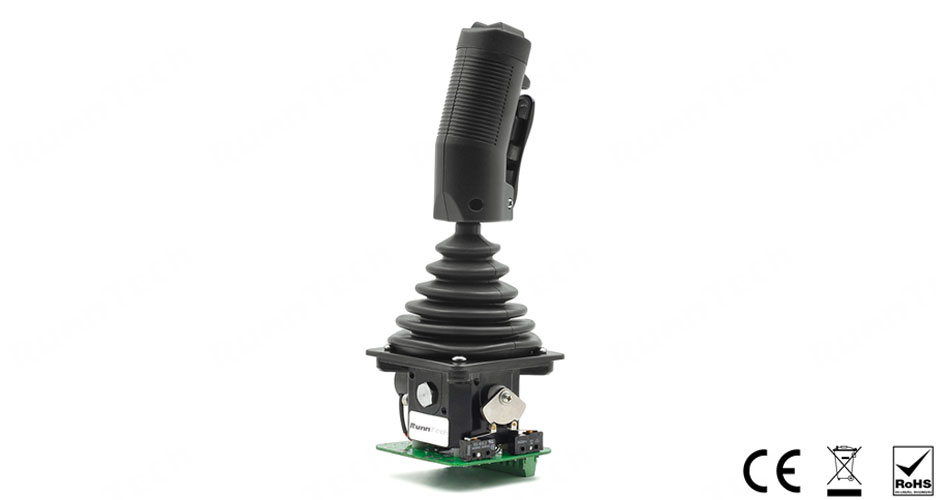

RunnTech 2 Axis 10Vdc to 10Vdc Analog Joystick for Hauling Plants or Hoisting Devices

Product configuration: RT100-T-3-V2(10K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: self-return to center position;
• 3: Y/X axis omnidirectional movement;
• V2: input: 24Vdc, output: 10Vdc…0…10Vdc;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02: 2 normally open contacts in each axis;
• (8): contacts @ +3° to +32° (directional signal);
• (9): contacts @ -3° to -32° (directional signal);
• HD15-BT1: HD15 grip handle with 1 deadman trigger;
• QTOT: 3 position rocker switch;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Dual-axis 4-20mA Analog Joystick Controller for Industrial Automation Control

Product configuration: RT100-T-3-I2(10K)-02(66)-HD8-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: spring return to center when release operation;
• 3: Y/X axis omnidirectional movement;
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 02: 2 normally open directional contacts in each axis;
• 6: contacts @ -32° to -3° or and 3° to +32°;
• HD8: big ball shape grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single Axis Proportional 4..20mA Joystick Controller for Automation Industry

Part number: RT100-T-1-I1(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: spring-return to center position;
• 1: single axis movement (Y axis default);
• I1: input: 24Vdc, output:4..12..20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 01: 1 normally open directional contacts signal;
• 6: directional contact closed @ -32° to -3° and 3° to 32°;
• HD4-BT1R: grip top with 1 on/off pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

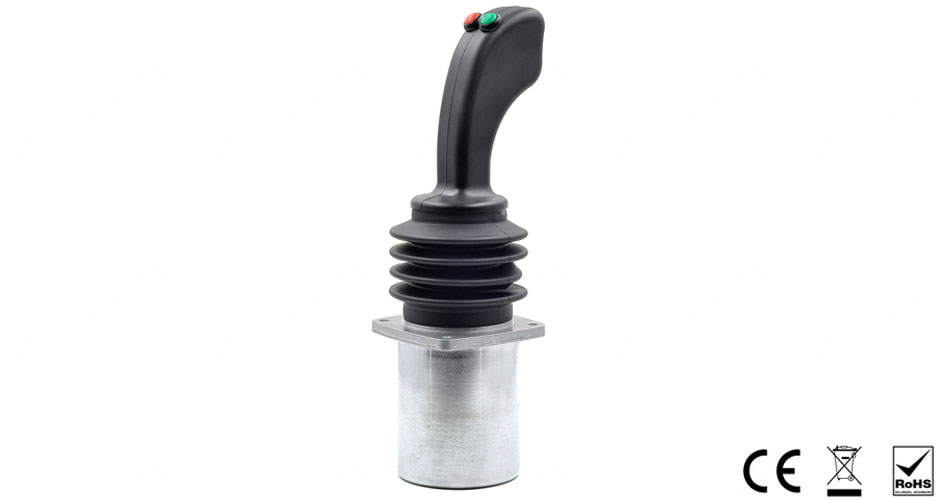

RunnTech Multi-axis Full Grip 4-20mA Output Industrial Joystick with 10K Potentiometer

Part number: RT02-T-3-I1(10K)-03(589)-HD9-BT2③R②G-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical spring return to zero position;
• 3: dual axis omnidirectional movement;
• I2: input: 24VDC, output: 20…4…20mA;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: 2 direction signals + 1 zero position signal in each axis;
• HD9: grip with multi-function pushbuttons;
• BT2⑥R④G: 2 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech 3 Axis Hall Effect Compact Fingertip Joystick for PTZ Robotic Video Cameras

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis) control (z-axis with a twist knob);
• 03: omnidirectional movement;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

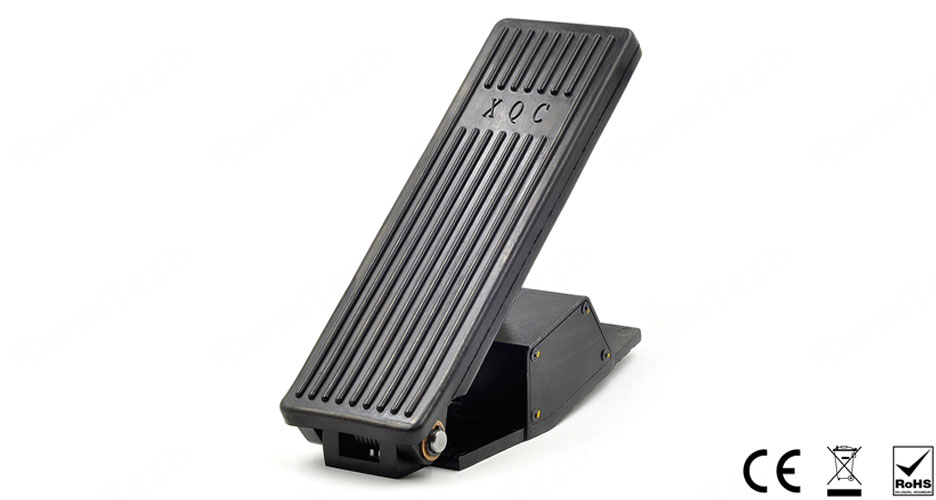

RunnTech F100 Seris Accelerator Throttle Pedal for Agricultural Machines and Equipment

Product configuration: F100-T-P2(20K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• P2: simple single side output (without dead band at the centre);
• 20K: 2*10K Ohm conductive-plastic precision potentiometer;

RunnTech Fingertip Switch Stick Spring Return Joystick for Two-dimensional Control

Product configuration: RT800-T-3-02(89)-HD18

• RT800: RunnTech 800 series switch stick joystick;
• T: self-centering to neutral position;
• 3: dual axis, omnidirectional control;
• 02(89): 2 sets COM-NO-NC contacts;
• HD18: RunnTech RT800 joystick grip/handle;

RunnTech Multi-axis 0 to 5V Ball Shape Grip Industrial Joystick for CNC Machine Control

Product configuration: RT100-T-3-V6(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centered when handle released;
• 3: dual axis omni-directional movement;
• V6: input: 24VVdc, output: 0…2.5…5Vdc;
• 10K: 10K ohm precision potentiometer (with dead zone);
• 03: 3 normally open contacts in each axis;
• 589: contacts @ -32°…-3°, -3°…+3° or +3°…+32°;
• HD2: ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 2 Axis Industrial Joystick Drive Proportional Valve for Electro-hydraulic Control

Product configuration: RT02-T-3-HV1-02(89)-HD10b2-BT2③②R-M6

• RT02: RunnTech 02 series joystick controller;
• T: self-centering movement operation;
• 3: dual axis omnidirectional control;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10B2: grip with trigger and 2 buttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm;

RunnTech 2 Axis Joystick Command Controller with 4 Steps Movement in Each Direction

Product configuration: RT300-TS-3-I-P1(10K)-4(5)-HD39-M5

• RT300: RunnTech RT300 series hoist joystick (command controller);
• TS: mechanical spring return to center and zero interlock;
• 3: Y & X axis omnidirectional movement;
• I: switch assembled vertical;
• P1: simple 2 directions output (with dead zone);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 4(5): 4 steps each direction, (5): contacts arrangement;
• HD39: grip with mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.
