RunnTech Single-axis Industrial Joystick 0.5 to 4.5V Output for Bow Thrusters Control System

Product configuration: RT100-M-1-HV2-01(5)-HD1-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-return to center position operation;
• 1: single axis movement (default: Y axis);
• HV2: input: 5Vdc, output: 0.5…2.5…5Vdc;
• 01: 1 normally open contacts in Y axis;
• (5): contacts @ -3° to +3° (center detent signal);
• HD1: grip top without momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single-axis Joystick 4-20mA Output to Control Hydraulic Valves for Anchoring Winch

Product configuration: RT100-T-1-I1(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to centre from forward and reverse;
• 1: single axis (forward) and (reverse) movement;
• I2: input 24Vdc, output: 20mA…4mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): with 2 directional micro-switches for forward and reverse;
• HD7-BT1R: RunnTech HD7 handle with 1 trigger switch in top of handle;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual Axis Industrial Joystick with 4-20mA Analog Output & Directional Switches

Product configuration: RT100-T-2-I2(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: spring return to center when release operation;
• 2: Y/X axis forward/backward, left/right movement;
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 02: 2 normally open directional contacts in each axis;
• 89: contacts @ -32° to -3° or 3° to +32°;
• HD8: big ball shape grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

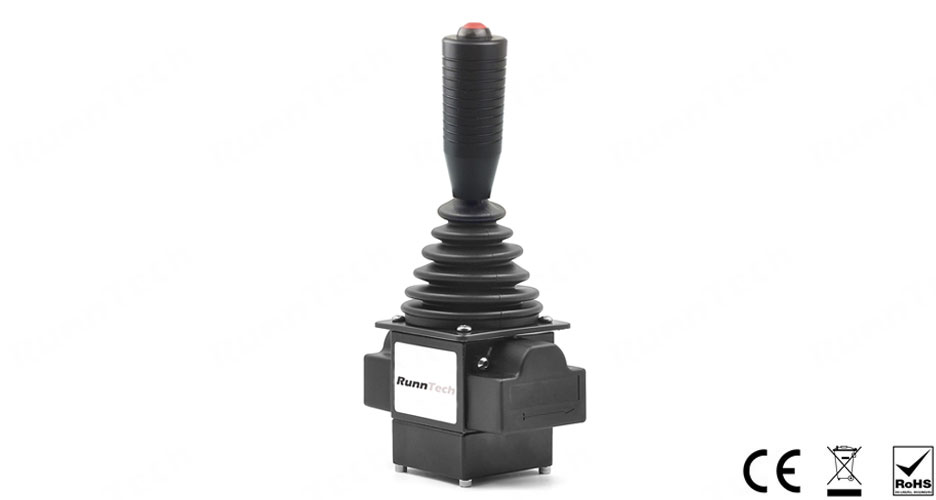

RunnTech Single-axis Industrial Joystick with 2 Directional Switch for RPM Motor Control

Product configuration: RT200-T-V2(10K)-02(89)-HD7-BT1R-M2

• RT200: RunnTech 200 series single axis joystick;
• T: self-centering movement operation;
• V1: input DC 24V, output: +10V…0…+10V (proportional);
• 10K: 2x5K Ohm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• (89): contacts @ -32° to -3° (backward) or +3° to +32° (forward);
• HD7-BT1R: grip top with 1 momentary pushbutton;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

RunnTech 2 Axis Industrial Joystick 10V Output for CNC Laser Cutting or Bending Control

Product configuration: RT100-T-2-V2(10K)-02(89)HD1-BS1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center (self-centering);
• 2: dual axis, cross direction movement;
• V2: input: 24Vdc, output: +10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BS1R: grip top with 1 self-locking button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Industrial Joystick Spring Return for Bridge, Trolley and lift Crane Control

Product configuration: RT300-T-3-L-5(3)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 3: dual axis, omnidirectional movement;
• L: switch assembled horizonal;
• 5(3): 10 steps each axis, (3): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Industrial Joystick 5 Steps for Mail or Aux Hoist , Bridge and Trolley

Product configuration: RT300-TS-1-I-5(1)-HD39-M2

• RT300: RunnTech 300 series joystick controller;
• MS: mechanical friction stay and zero interlock;
• 1: single axis movement (Y axis);
• I: switch assembled vertical direction;
• 5: 5 steps each direction (forward and reverse);
• 1: normally open (NO) contacts arrangements;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

RunnTech Single-axis Industrial Joystick with Center Detect & Directional Micro-switches

Product configuration: RT100-T-1-V1(10K)-03(589)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to centre from forward and reverse;
• 1: single axis (forward) and (reverse) movement;
• V1: input 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 03(589): center detect and 2 directional micro-switches;
• HD7-BT1R: RunnTech HD7 handle with 1 trigger switch in top of handle;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Industrial Joystick Stepped Movement Spring Return for Crane Control

Product configuration: RT300-T-2-I-2(1)-HD8-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centered operation;
• 2: 2 axis, cross direction movement;
• I: switch assembled vertical;
• 2: 2 steps each direction;
• 1: NO contacts closed arrangement;
• HD8: joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Industrial Joystick with Potentiomter for Mining Haulage Application

Product configuration: RT200-T-V6(10K)-02(89)-HD8-M1

• RT200: RunnTech 200 series single-axis industrial joystick controller;
• T: mechanical spring return to neutral position;
• V6: input: 24Vdc, output: 0…2.5…5Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 01: 1 normally open contact in each axis;
• 2: contacts @ -29° to +32° (forward);
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;
