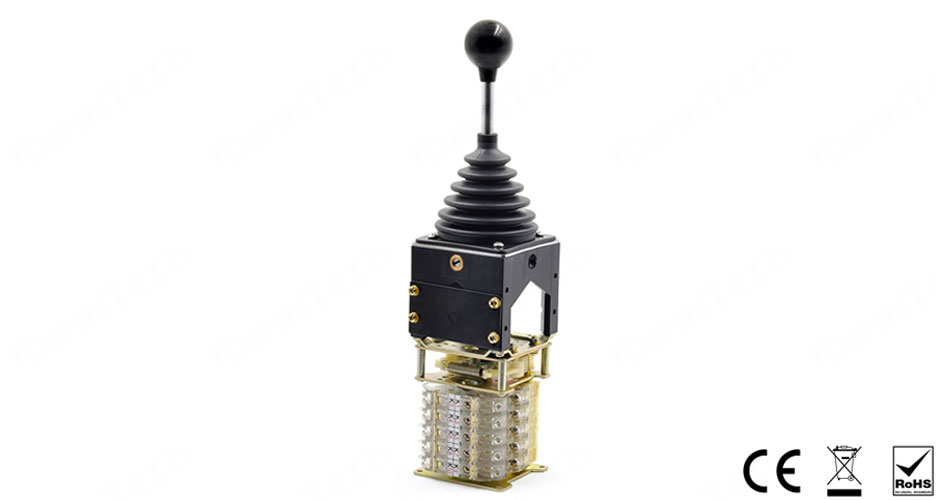

RunnTech Single Axis Master Controller Joystick for Hoist Up and Down with Spring Return

Part number: RT300-T-1-I-4(1)-HD2-HD5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 1: single axis, Y axis movement;
• I:switch assembled vertically;
• 4(1): 4 steps each direction, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 3 Axis Hall Effect Compact Fingertip Joystick for 1D Cablecam System of Film Industry

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis) control (z-axis with a twist knob);
• 03: omnidirectional movement;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Single-axis Industrial Joystick with -10V to +10V Output for Electrohydraulic Control

Product configuration: RT200-T-V1(10K)-02(89)-HD8-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• T: spring return to neutral position;
• V1: input: 24Vdc (or 12Vdc), output: -10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals;
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

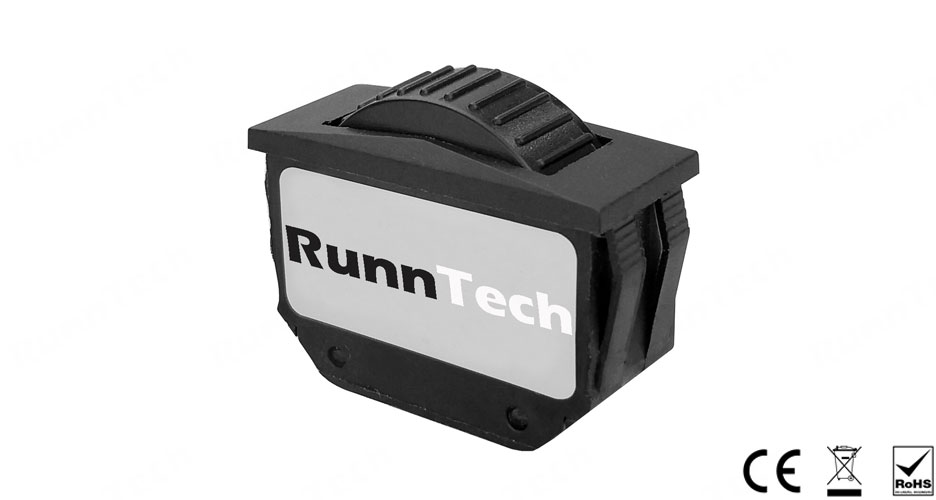

RunnTech Self-centering Hall Effect Proportional Thumbwheel Controller for Accelerating Control

Product configuration: W100L-T-HV1

• W100: RunnTech W100 series Hall effect thumbwheel;
• T: self-centering (automatically return to center);
• HV1: input: 5Vdc, output: 0…2.5…5Vdc;

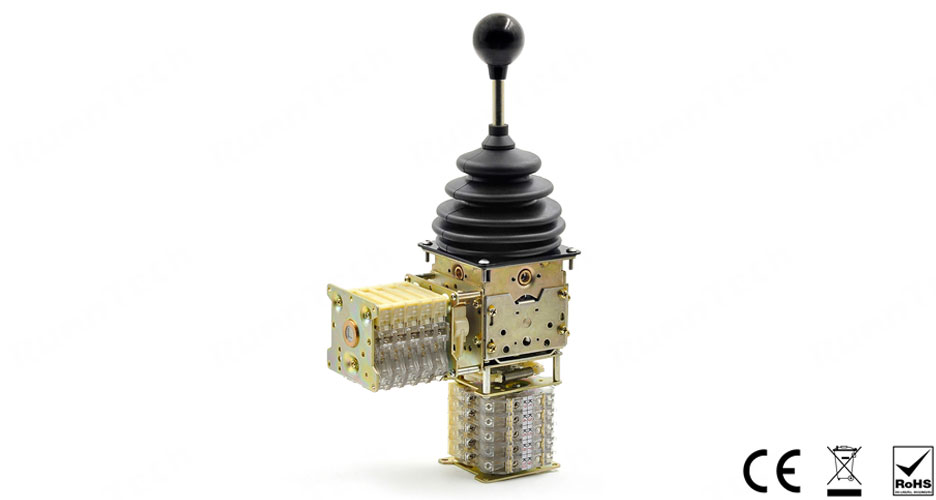

RunnTech 2 Axis Industrial Joystick Lever Controller for Crane Grab Trolley and Operators Cabin

Product configuration: RT300-T-2-I-2(1)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 3: 2 axis, plus direction (Left/Right and Forward/Backward) movement;
• I:switch assembled vertically;
• 2(1): 2 steps each direction, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Axis Industrial Joystick with 4-20mA Analog Output and 2*5K Ohm Potentiometer

Product configuration: RT100-T-3-I2(10k)-02(89)-HD10b2-BT2②G③R-M7

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center;
• 3: dual axis omnidirectional movement;
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals in each axis;
• HD10b2: HD10 grip with deadman trigger;
• BT2②G③R: front panel with 2 momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

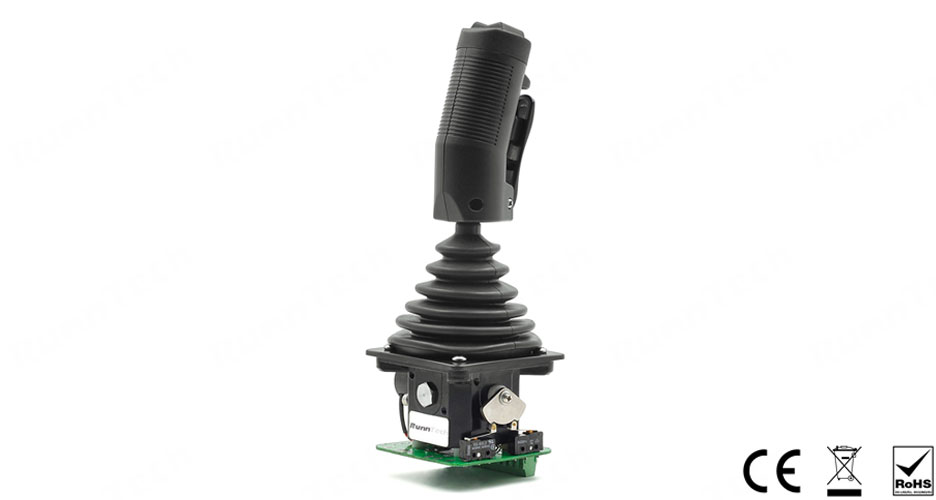

RunnTech Dual-axis Industrial Joystick with 10K Ohm Potentiometer and 0%…100%Vdc Output

Product configuration: RT100-T-2-P1(10K)-02(89)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 1: single axis movement (default: Y axis);
• P1(10K): 10K ohm center tapped potentiometer with 0%…100%Vdc output;
• 02(89): 2 directional switches in each axis;
• HD15-BT1: grip with deadman trigger;
• QTOT: rocker switch;
• M1: mounting dimension 56x56mm, central hole: 63mm;

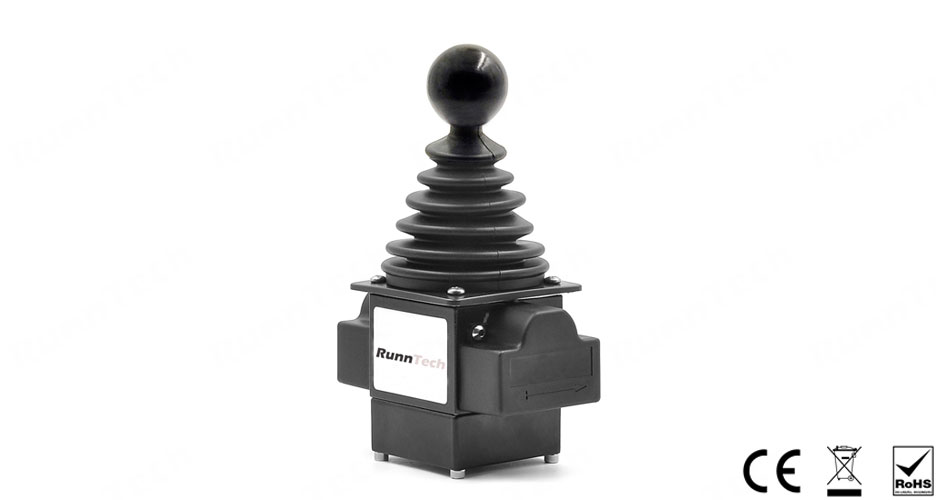

RunnTech Single-axis Industrial Joystick with Potentiometer for 2 Quadrant Proportional Control

Product configuration: RT200-T-V1(10K)-02(89)-HD2-M1

• RT200: RunnTech 200 series single-axis industrial joystick;
• T: mechanical self-centering operation;
• V1: 24V DC input, -10V…0…+10V proportional output;
• 02(89): 2 directional switches;
• HD2: ball shape grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single Axis Industrial Joy Stick -10V to 10V Analog Output for Rolling Mill Equipments

Product configuration: RT100-T-1-V1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series industrial joystick lever;
• T: joystick self-centering operation;
• 1: single axis (forward/reverse) movement;
• V1: input 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02(89): 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

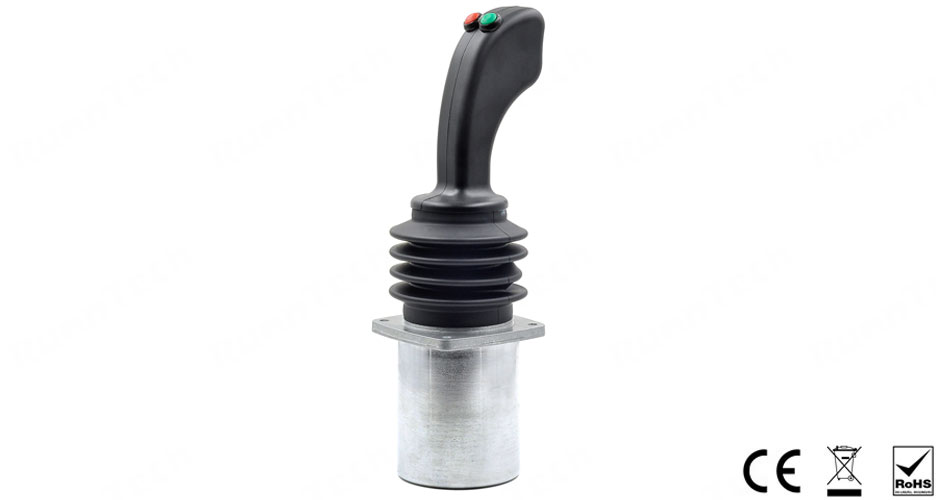

RunnTech 2 Axis Analog Output Joystick with Deadman Switch for Electromechanical Solutions

Part number: RT02-M-3-P1(10K)-02(89)-HD9-BT2③R②G-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical spring return to center position;
• 3: dual axis omnidirectional movement;
• P1: simple 2 directions analog output;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional switches in each axis;
• HD10b0: grip with dead man trigger;
• M6: mounting dimension: 76x76mm, central hole: 92mm.
