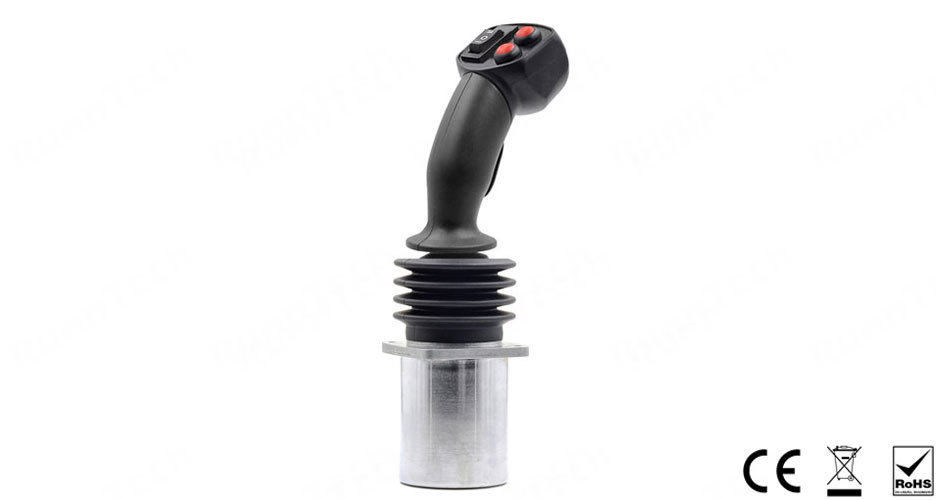

RunnTech 2 Axis Industrial Joystick Y-axis Friction Hold and X-axis Spring Return with Hall Sensor

Part number: RT02-YM-XT-HV1-03(589)-HD10b11-BT2②Y③R-QTOT-M6

• RT02: RunnTech 02 series robust joystick controller;
• YM: friction hold at Y-axis;
• XT: spring return to center at X-axis;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc;
• 03(589): 1 center detect and 2 directional switches in each axis;
• HD10b11: grip with deadman trigger;
• BT2②Y③R: 1 yellow and 1 red momentary pushbutton;
• QTOT: rocker switches;
• M6: mounting dimension: 76x76mm, central hole: 92mm.
• RS232: RS232 connection interface.

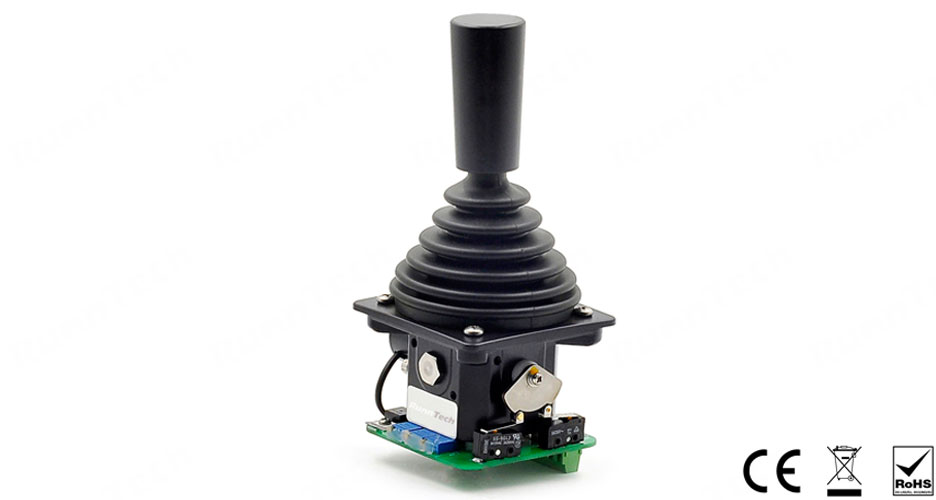

RunnTech 2 Axis Joystick -10V…+10V Analog Output in Y Axis (Up/Down) and X Axis (Left/Right)

Product configuration: RT100-T-2-V1(10K)-01(5)-HD1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center operation;
• 2: dual axis, plus (+) direction movement;
• V1: input: 24VDC, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 01(5): 1 center detect contact in each axis;
• HD1: HD1 joystick grip (top without momentary pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm.

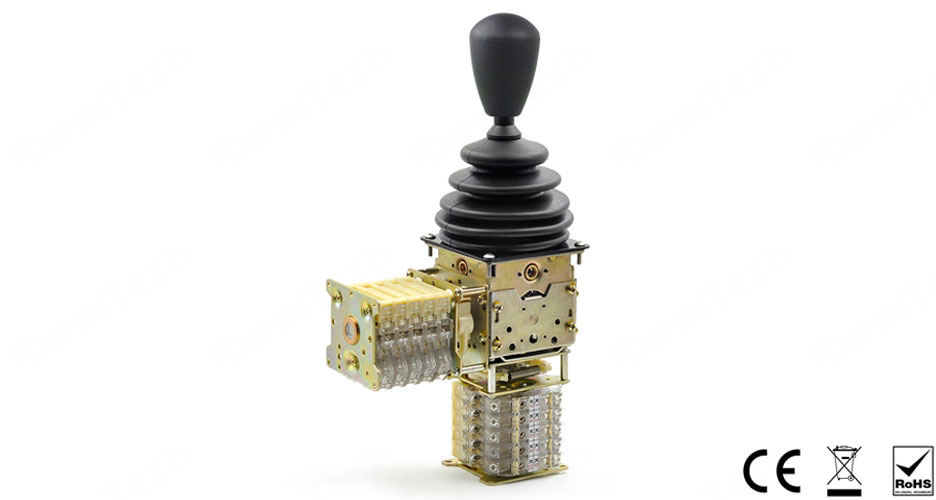

RunnTech 2 Axis EOT Crane Industrial Joystick Controller for Steel Melting and Rolling Mill Plant

Product configuration: RT300-T-2-I-5(1)-HD8-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 2: 2 axis, plus (+) direction movement;
• I: switch assembled vertical;
• 5: 5 steps each direction;
• 1: contacts arrangement;
• HD8: joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

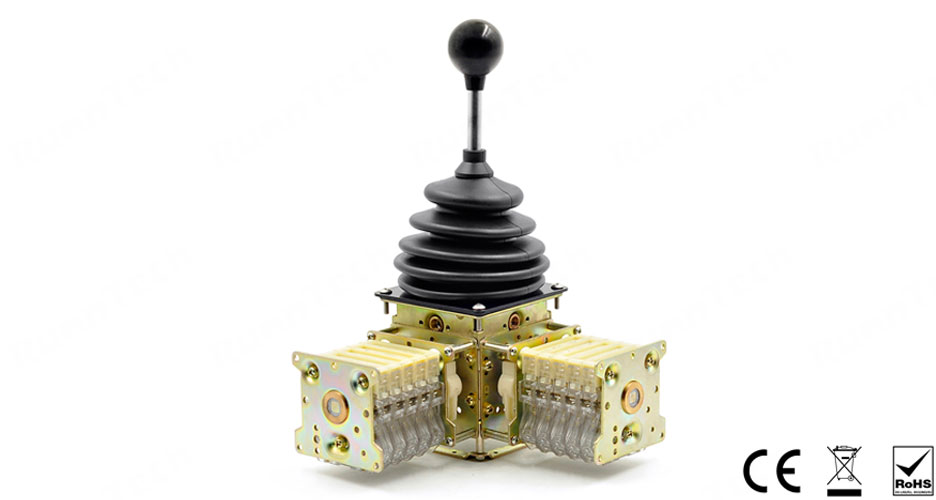

RunnTech 2 Axis Industrial Joystick Spring Return for Forward/Backward and Left/Right Control

Product configuration: RT300-T-2-L-4(1)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 2: dual axis, plus direction movement;
• L: switch assembled horizonal;
• 4(1): 8 steps each axis, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single Axis Master Controller Joystick for Hoist Up and Down with Spring Return

Part number: RT300-T-1-I-4(1)-HD2-HD5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 1: single axis, Y axis movement;
• I:switch assembled vertically;
• 4(1): 4 steps each direction, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 3 Axis Hall Effect Compact Fingertip Joystick for 1D Cablecam System of Film Industry

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis) control (z-axis with a twist knob);
• 03: omnidirectional movement;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Single-axis Industrial Joystick with -10V to +10V Output for Electrohydraulic Control

Product configuration: RT200-T-V1(10K)-02(89)-HD8-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• T: spring return to neutral position;
• V1: input: 24Vdc (or 12Vdc), output: -10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals;
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Self-centering Hall Effect Proportional Thumbwheel Controller for Accelerating Control

Product configuration: W100L-T-HV1

• W100: RunnTech W100 series Hall effect thumbwheel;
• T: self-centering (automatically return to center);
• HV1: input: 5Vdc, output: 0…2.5…5Vdc;

RunnTech 2 Axis Industrial Joystick Lever Controller for Crane Grab Trolley and Operators Cabin

Product configuration: RT300-T-2-I-2(1)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 3: 2 axis, plus direction (Left/Right and Forward/Backward) movement;
• I:switch assembled vertically;
• 2(1): 2 steps each direction, (1): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Axis Industrial Joystick with 4-20mA Analog Output and 2*5K Ohm Potentiometer

Product configuration: RT100-T-3-I2(10k)-02(89)-HD10b2-BT2②G③R-M7

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center;
• 3: dual axis omnidirectional movement;
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals in each axis;
• HD10b2: HD10 grip with deadman trigger;
• BT2②G③R: front panel with 2 momentary pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;
