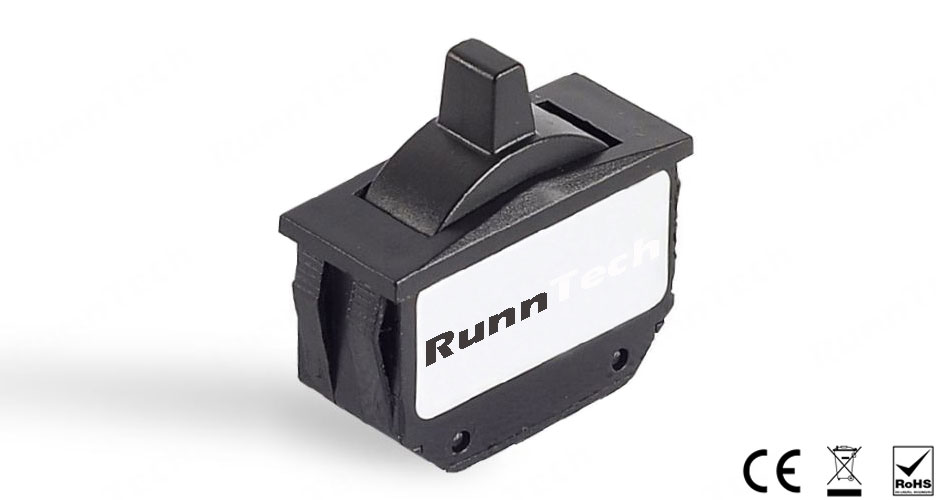

RunnTech W100 Series Single Axis Proportional Miniature Control Wheel with Snap-in Mounting

Product configuration: W100H-T-HV6

• W100: RunnTech W100 series Hall effect thumbwheel;
• T: self-centering (automatically return to center);
• HV6: input: 5Vdc, output: 0.25Vdc…2.5Vdc…4.75Vdc;

We Are Proud to Announce That RunnTech Has Become an Official Supplier of CSL Group

The CSL Group Inc. (CSL) is a leading provider of marine dry bulk cargo handling and delivery services and the world’s largest owner and operator of self-unloading vessels…

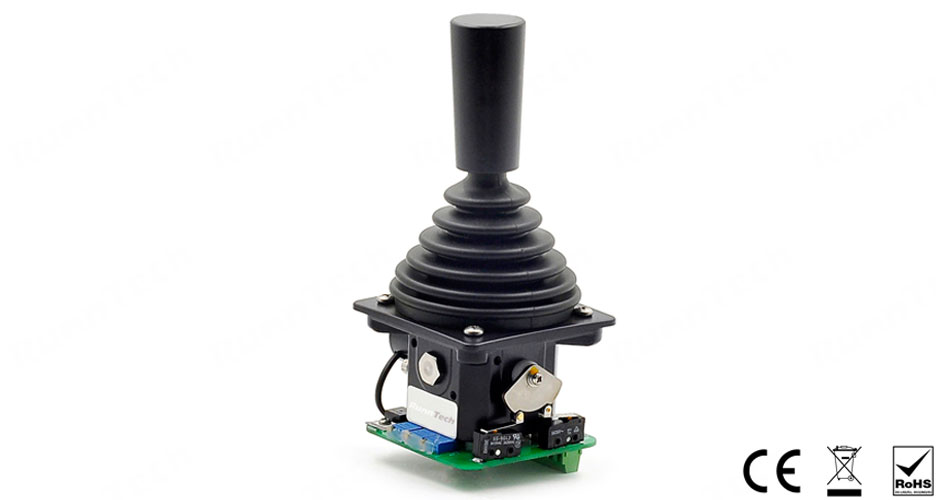

RunnTech Single Axis Industrial Joystick 12V Input 3…9V Output for Proportional Danfoss Valves

Product configuration: RT100-T-1-P1(10K)(25%-75%)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 1: single axis movement;
• P1(25%-75%): 25%…75%Vdc output (if input 12V, output will be 3…6…9Vdc);
• 10K: 10K ohm center tapped potentiometer;
• 02(89): 2 directional switches in each axis;
• HD1: grip handle without pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

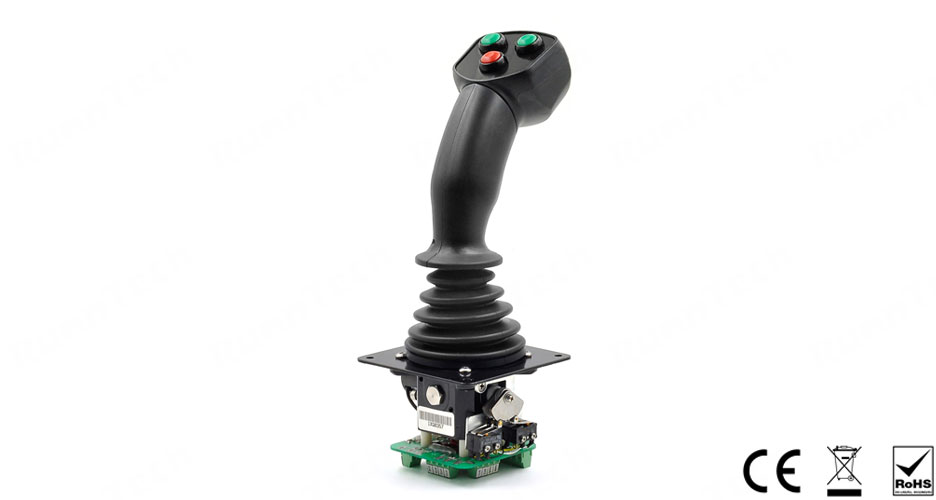

RunnTech 2 Axis Industrial Potentiometer Joystick 0%…100%Vdc Output for Aircraft Simulator

Product configuration: RT100-T-3-P1(10K)-02(89)-HD10b3-BT3④②GN③RD-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: self-centering operation;
• 3: dual axis omnidirectional movement;
• P1(10K): 10K ohm center tapped potentiometer with 0%…100%Vdc output;
• 02(89): 2 directional switches in each axis;
• HD10b3: joystick grip handle with deadman trigger;
• BT3④②GN③RD: 3 momentary pushbuttons;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Single-axis Heavy Duty Joystick 24V Input -5V to +5V Output for Marine Application

Product configuration: RT200-T-V3(10K)-02(89)-HD8-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• T: spring return to neutral position;
• V3: input: 24Vdc, output: -5Vdc…0…+5Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals;
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction Brake Joystick with Center Tap Potentiometer & Center-lock Handle

Product configuration: RT200-MS-P1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis industrial joystick;
• MS: mechanical friction brake with center lock;
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick handle with center lock (lift to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech F100 Series Proportional Throttle/Brake Pedal for Agricultural Equipment Control

Product configuration: F100-T-V5(10K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• V5: input: DC24V, output: 0…+10V;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open contacts;
• (2): contacts @ 3° to 25°;

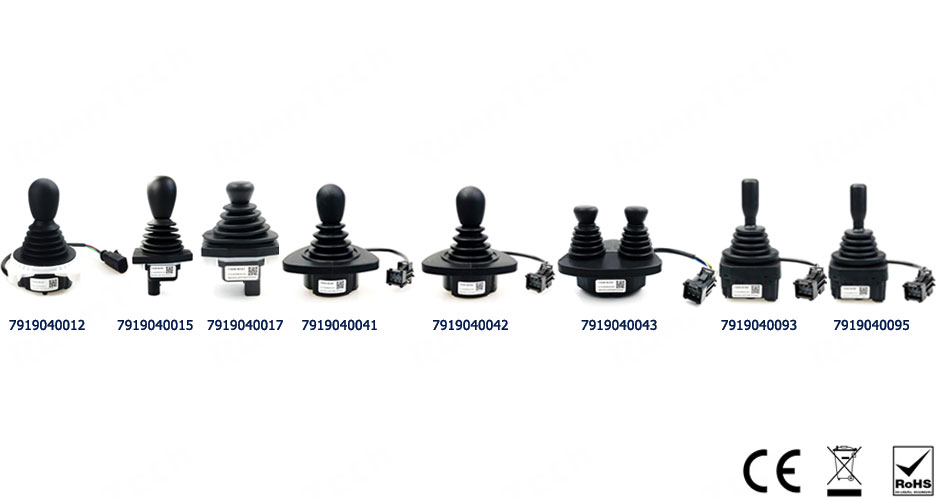

RunnTech 7919040017 Single Axis Joystick Lever for Linde Material Handling Truck Control

Fits to the following Linde models:
1120 R10/12/14/16/20/25,
386-02 E12/14/15/16/18/20 – 02,
387 E20/25/30/35,
388 E35/40/45/50
392-02 H20/25 – 02,
393-02 H25/30/35 – 02,
394-02 H40/45/50 – 02,
396-02 H50/60/70/80 – 02

RunnTech Single-axis Industrial Joystick Controller with 20…4…20mA Proportional Output

Product configuration: RT100-T-1-I2(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series joystick controller;
• T: mechanical spring return to handle centering;
• 1: single axis movement;
• I2: input: 24Vdc, output: 20mA…4mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• (5): contacts @ -3° to +3° (center detect micro-switch);
• (8): contacts @ +3° to +32° (directional micro-switches);
• (9): contacts @ -3° to -32° (directional micro-switches);
• HD2: RunnTech joystick HD2 grip with round knob;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 7919040043 Double Lever Joystick for Linde Material Handling Truck Control

Fits to the following Linde models:
116 R14X/R16X/R17X/R17XHD
116-02 R14X/R16X/R17X/R17XHD
116-03 R14X/R16X/R17X/R17XHD-03
1313-01 H25/27/30/32
1401 H100/H120/H140/H150/H160/H180
1401 H100/H120/H140/H150/H160/H180 – T4
1402 H180,H200,H220,H250,H280,H300,H320
