RunnTech Spring Centred Proportional Roller (Thumbwheel Controller) with Bilateral Control
Product configuration: W300L-T-HV1
- W300: RunnTech W300 series Hall effect thumbwheel;
- T: self-centering (automatically return to center);
- HV1: input: 5Vdc, output: 0Vdc…2.5Vdc…5Vdc;
RunnTech 2 Axis Joystick Controller +/-10V Analogue Output to Control Industrial Winches
Product configuration: RT100-T-2-V1(10K)-02(89)-HD4-BT1R-M1
- RT100: RunnTech 100 series industrial joystick controller;
- T: mechanical spring return to neutral;
- 2: dual axis, cross direction (forward/reverse, left/right) movement;
- I1: input: 24Vdc, output: -10Vdc…0…+10Vdc;
- 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
- 02(89): 2 directional contacts in Y axis;
- HD4-BT1R: joystick grip top with 1 pushbutton;
- M1: mounting dimension 56x56mm, central hole: 63mm;
RunnTech 2 Axis Industrial Joystick Controller 4…20mA Amperage Output for Mining Drilling Rig
Product configuration: RT100-T-3-I1(10K)-02(89)-HD4-BT1R-M1
- RT100: RunnTech 100 series industrial joystick controller;
- T: mechanical spring return to neutral;
- 3: dual axis, full direction movement;
- I1: input: 24Vdc, output: 4mA…12mA…20mA (centre current: 12mA);
- 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
- 02(89): 2 directional contacts in Y axis;
- HD4-BT1R: joystick grip top with 1 pushbutton;
- M1: mounting dimension 56x56mm, central hole: 63mm;
RunnTech 2 Axis 4 Steps Joystick with 4mA to 20mA Output for Ship Unloader Operation
Product configuration: RT300-MS-2-I-I2(10K)-4(5)-HD39-M5
- RT300: RunnTech RT300 series hoist joystick controller;
- MS: friction hold with zero interlock;
- 2: Y/X axis cross direction movement;
- I: switch assembled vertical;
- I2: input: 24Vdc, output: 20mA…4mA…20mA;
- 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
- 4(5): 4 steps each direction, (5): contacts arrangement;
- HD39: grip with mechanical zero interlock;
- M5: mounting dimension: 85x85mm, central hole: 78mm.

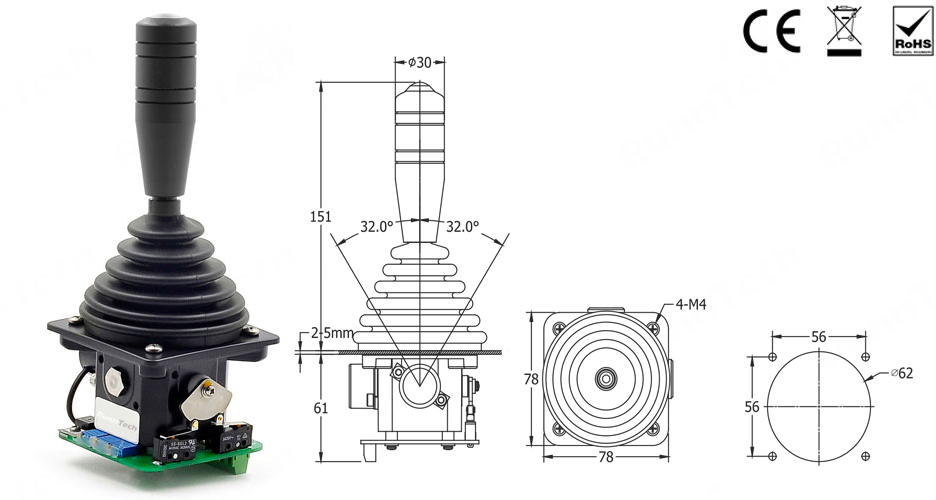

RunnTech Single Axis Industrial Joystick Controller 4…20mA Output with 2 Directional Switches
Product configuration: RT100-T-1-I2(10K)-02(89)-HD4-M1
- RT100: RunnTech 100 series industrial joystick controller;
- T: mechanical spring return to neutral;
- 1: single axis movement (Y aixs);
- I2: input: 24Vdc, output: 20mA…4mA…20mA (centre current: 4mA);
- 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
- 02(89): 2 directional contacts in Y axis;
- HD4: joystick grip (top without pushbutton);
- M1: mounting dimension 56x56mm, central hole: 63mm;

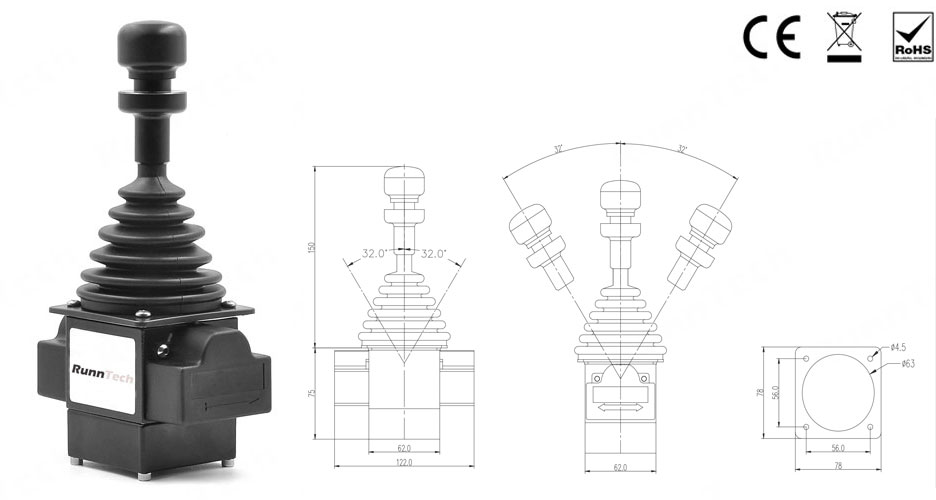

RunnTech Single Axis 4 to 20mA Analog Output Industrial Joystick for Shipyard Yacht Control
Product configuration: RT200-MS-1-I2(10K)-02(89)-HD5-M1
- RT200: RunnTech 200 series single-axis joystick controller;
- MS: friction hold with zero interlock (lift to release the grip);
- I2: input: 24Vdc or 12Vdc, output: 20mA…4mA…20mA;
- 02(89): 2 directional switches (NO contacts) in Y axis;
- HD5: joystick grip with zero interlock ((lift to release);
- M1: mounting dimension: 56x56mm, central hole: 63mm;

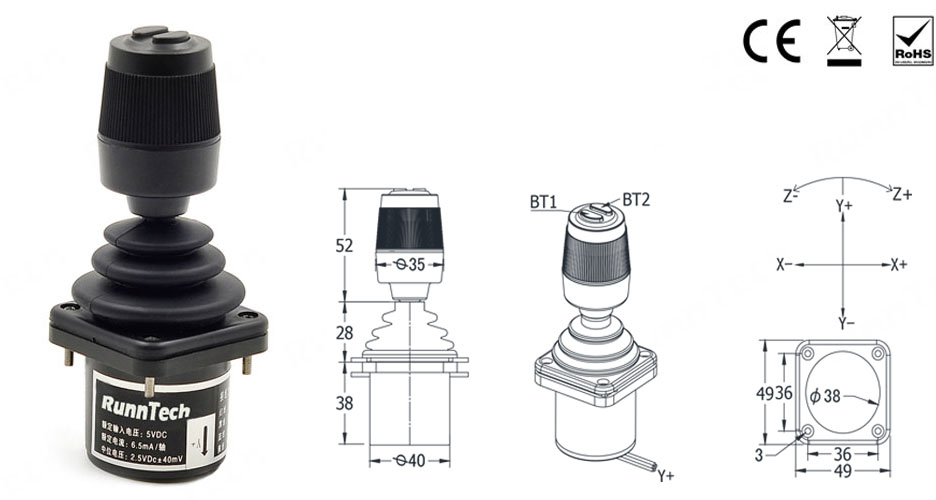

RunnTech 3 Axis Hall Effect Joystick Omnidirectional Control with 0.5 to 4.5V Analog Output
Part number: RT600-T-3-03-HV2-HD12-BT2-M11 (APEM HF45S11 Replacement)
- RT600: RunnTech RT600 Hall effect joystick controller;
- T: self-centering to center position;
- 3: 3 axis control (z-axis with a twist knob);
- 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
- HV2: input: 5Vdc, output: 0.5…2.5…4.5Vdc (proportional);
- HD12-BT2: joystick knob top with 2 momentary switches;
- M11: mounting dimension: 36x36mm, centeral hole: 38mm;

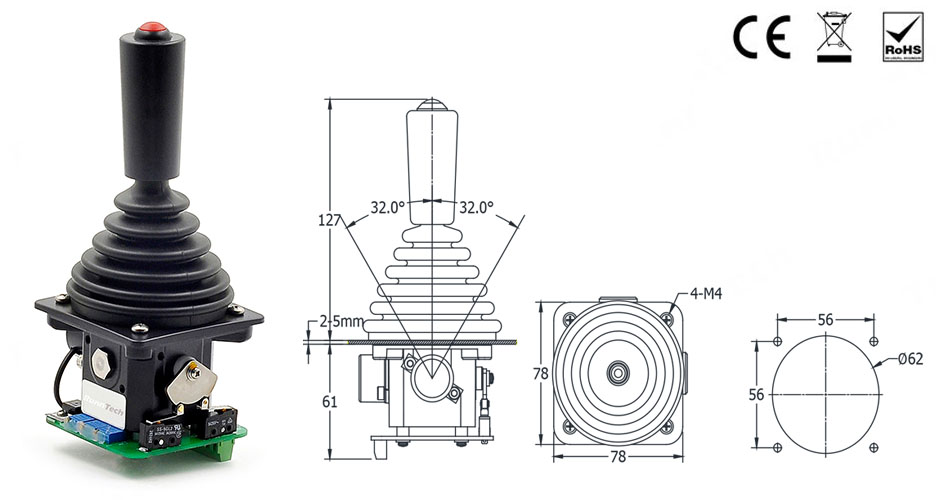

RunnTech 2 Axis Joystick Controller with 4…12…20mA Analog Output for Mining Equipment
Product configuration: RT100-T-3-I1(10K)-02(89)-HD1-BT1R-M1
- RT100: RunnTech 100 series industrial joystick controller;
- T: spring return to center when release joystick;
- 3: dual axis, omnidirectional movement;
- I1: input: DC24V, output: 4mA…12mA…20mA;
- 02(89): 2 directional contacts in each axis;
- HD1-BT1R: grip top with 1 momentary push button;
- M1: mounting dimension 56x56mm, central hole: 63mm.

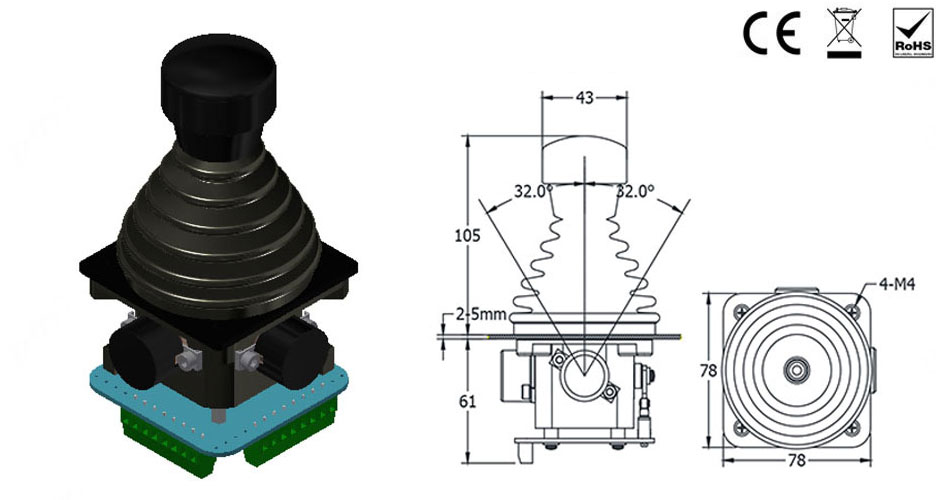

RunnTech 2 Axis Spring-return Center-lock Joystick 4…20mA Output for Cabe Laying System
Part number: RT100-TS-2-I1(10K)-02(89)-HD5-M1
- RT100: RunnTech 100 series multi-axis joystick;
- TS: spring-return to center with center-lock;
- 2: dual axis movement (with cross limiter plate);
- I1: input: 24Vdc, output:4..12..20mA;
- 10K: 10K ohm precision potentiometer (with center tapped);
- 02(89): each direction with directional switch;
- HD5: grip with center-lock (lift to release the joystick);
- M1: mounting dimension 56x56mm, central hole: 63mm.
