Yearly Archives: 2022

RunnTech Single-axis Industrial Joystick 4mA to 20mA Output with Center-lock for Crane Control

Product configuration: RT200-TS-1-I1(10K)-01(6)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: spring return to center and self-lock at center;
• 1: single axis movement;
• I1: input 24Vdc, output: 4mA…12mA…20mA;
• 10K: 2×5K Ohm conductive-plastic potentiometer with center tap;
• 01: 1 normally open (NO) switches contacts;
• 6: 1 NO contacts for forward and backward signal;;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

2022 National Day Holiday Notice

Please be informed that RunnTech will temporarily break for 2022 National Day holidays.

RunnTech 3 Axis Fingertip Hall Effect Joystick with Square Limiter Plate for Agriculture Vehicles

Part number: RT600-T-3-03-HV1-HD12-BT2-M11 (APEM HF45S10 Replacement)

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary switches;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

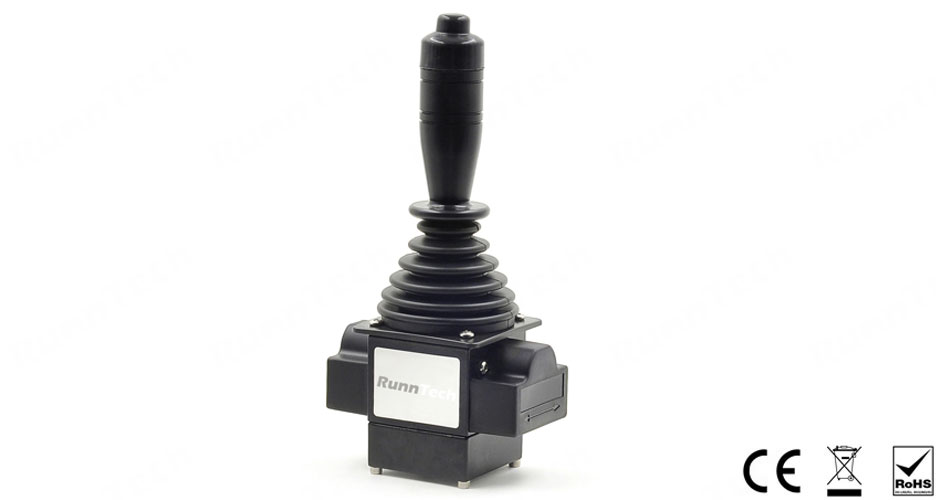

RunnTech Single Axis 4…12…20mA Analog Output Industrial Joystick Controller for Crane Control

Part number: RT100-T-1-I1(10K)-03(589)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: spring-return to center position;
• 1: single axis movement (Y axis default);
• I1: input: 24Vdc, output:4..12..20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 03(589): one switch for UP , one switch for Down, one switch for Zero position;
• HD4-BT1R: grip top with 1 on/off pushbutton (safely trigger);
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Robust Industrial Joystick Controller for Crane Hoist and Long Travel Control

Part number: RT300-TS-3-L-5(65)-HD39-M5

• RT300: RunnTech RT300 series joystick (Schneider XKDF replacement);
• TS: spring return to neutral and with neutral interlock;;
• 3: 2 axis, full directions movement;
• L: switch assembled horizontal;
• 5(65): 5 steps in each direction, (65): switches contact arrangement;
• HD39: grip with latch (lift to release);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single Axis Hall Effect Joystick for Industrial Automated Laser Metal Cutting Machines

Product configuration: RT600-T-1-01-HV1-HD14-M11

• RT600: RunnTech RT600 series hall miniature joystick lever;
• T: spring return to center (self-centering) operation;
• 1: single axis control;
• 01: Y axis movement;
• HV1: input: 5V, output: 0…2.5V…5V (rail to rail);
• HD14: RunnTech joystick grip handle model;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2 Axis Hall Effect Joystick with Pushbutton for Medical Imaging Diagnostics Equipment

Product configuration: RT600-T-2-03-HV1-HD14-M11

• RT600: RunnTech RT600 series hall miniature joystick lever;
• T: spring return to center (self-centering) operation;
• 2: dual axis control;
• 03: Y/X axis 360° free movement;
• HV1: input: 5V, output: 0…2.5V…5V (rail to rail);
• HD14-BT1R: grip handle with 1 red momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Single-axis Friction Hold Joystick with 10K Ohm Accurate Potentiometer for PLC Control

Product configuration: RT200-M-1-P1(10K)-02(89)-HD80-BT2①BU②RD-M1

• RT100: RunnTech 100 series industrial joystick controller;
• M: friction hold operation;
• 1: single axis control (default: Y axis);
• P1: simple 2 direction output with center tapped;
• 10K: 10K ohm precision linear potentiometer;
• 02(89): 2 directional contacts in Y axis;
• HD80-BT2①BU②RD: grip with 2 momentary pushbuttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Industrial Joystick 4mA to 20mA Analog Output Grip with 2 Momentary Buttons

Product configuration: RT100-T-3-I1(10k)-03(589)-HD80-BT2①BU②RD-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 2: dual axis, full direction movement;
• I1: input: 24Vdc, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 03(589): 2 directional signals and 1 center signal in each axis;
• HD80-BT2①BU②RD: grip top with one blue and one red pushbuttons;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis X/Y Axis Full Direction Movement Joystick with 24Vdc Input, -10…+10Vdc Output

Product configuration: RT100-T-3-V1(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center operation;
• 3: X/Y axis full direction movement;
• V1: input: 24VDC, output: -10Vdc…0…+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD1: HD1 joystick grip (top without momentary pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm.
