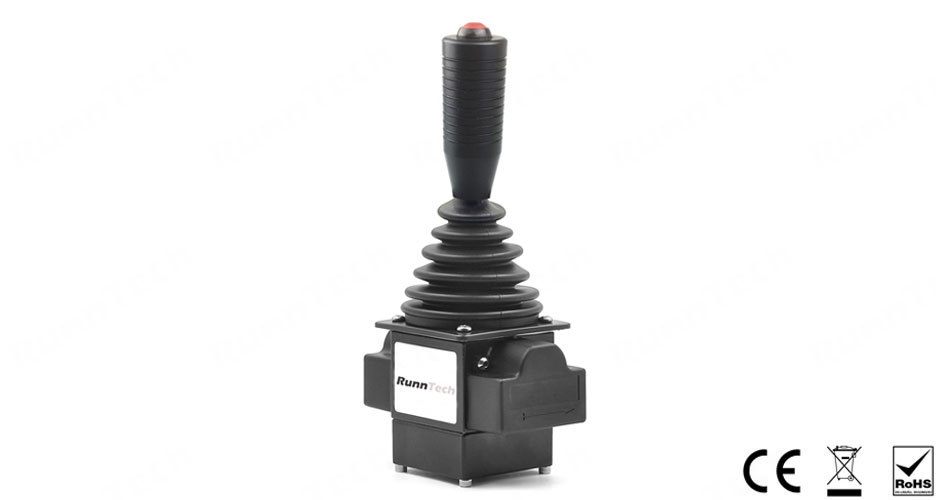

RunnTech Single-axis Joystick -10Vdc to +10Vdc Analog Output for Off-road Hydraulic Equipment

Product configuration: RT200-T-1-V1(10K)-02(89)-HD7-BT1R-M1

• RT200: RunnTech 200 series single axis joystick;
• T: self-centering operation;
• V1: input DC 24V, output: -10V…0…+10V (analog);
• 10K: 2x5K Ohm conductive-plastic potentiometer;
• 02: 2 normally open contacts in each axis;
• (89): contacts @ -32° to -3° (backward) or +3° to +32° (forward);
• HD7-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 3 Axis Fingertip Joystick with Hall Effect 0.5 to 4.5Vdc Output for Laser Welding System

Part number: RT600-T-3-03-HV2-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech Single-axis Joystick Frcition Hold 4mA to 20mA Output for Ships Bow Thruster Control

Part number: RT200-M-I1(10K)-03(589)-HD4-M1

• RT200: RunnTech 200 series single axis joystick;
• M: friction hold operation;
• I1: input: 24Vdc, output: 4mA…12mA…20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 03(589): 1 neutral and 2 directional contacts;
• HD4: grip (top without pushbutton);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

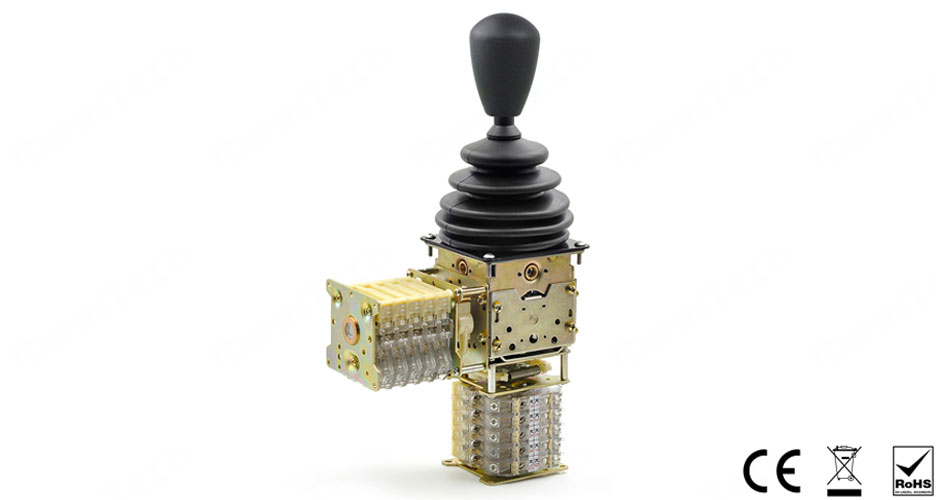

RunnTech 2 Axis Joystick Controller 4 Steps Each Direction with 0…10Vdc Output for Crane Control

Product configuration: RT300-T-2-I-V2(10K)-4(5)-HD8-M5

• RT300: RunnTech RT300 series crane joystick controller;
• T: self-centered operation;
• 2: 2 axis, cross direction movement;
• I: switch assembled vertical;
• V2: input: 24Vdc, output: 10Vdc…0…10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 4: 4 steps each direction;
• 5: NO contacts closed arrangement;
• HD8: joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

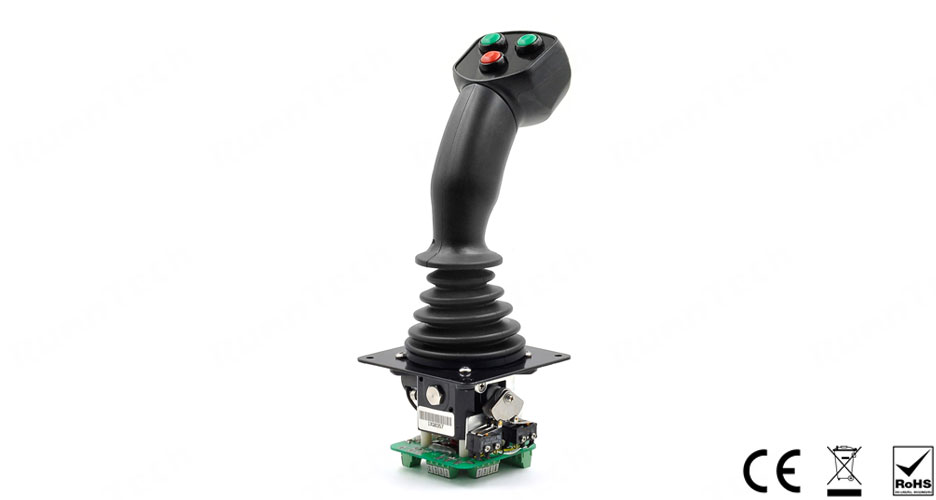

RunnTech Single Axis Forward/Backward Potentiometer Joystick with 5V Output to Control Valves

Product configuration: RT100-T-1-V4(10K)-02(89)-HD10b3-BT3④②GN③RD-M7

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 1: single axis (forward/backward) movement;
• V4: input: 24Vdc, output: 5Vdc…0…5Vdc;
• 10K: 10K ohm precision potentiometer (with center tap);
• 02(89): 2 directional switches in Y axis;
• HD10b3-BT3④②GN③RD: grip with deadman and top pannel with 3 pushbuttons;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

RunnTech 4 Way Joystick 4-20mA Analogue Output for Solenoid Valve to Control Hydraulic Fluid

Product configuration: RT100-T-2-I1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center when release joystick;
• 2: dual axis, plus direction movement;
• I1: input: DC24V, output: 4mA…12mA…20mA;
• 02(89): 2 directional contacts in each axis;
• HD1-BT1R: grip top with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual Axis +/-10V Analog Output Industrial Joystick Controller for Circuitry Lab Equipment

Product configuration: RT100-T-2-V1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center operation;
• 2: dual axis with cross limiting plate;
• V1: input: 24Vdc, output: -10V…0V…+10V (analog output);
• 02(89): 2 directional contacts in each axis;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single-axis Friction Joystick 5Vdc Analog Output to Control Forestry Mulching Machine

Product configuration: RT200-MS-1-V4(10K)-02(89)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• MS: friction clutch with zero interlock;
• V4: input 24Vdc, output: +5…0…+5Vdc (proportional);
• 10K: 10K ohm precision potentiometer with deadzone;
• 02(89): 2 directional contacts;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis Cross Gate Industrial Joystick Spring Return for Rolling Mill Main Speed Control

Product configuration: RT100-T-2-P1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech RT100 series industrial joystick;
• T: spring return to center operation;
• 2: dual axis, cross gate movement (up/down and left/right);
• P1: 0%…100% analog output;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap (with dead zone);
• 02(89): 2 directional contacts in each axis;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech 2 Axis Self-centring Joystick Controller with 0…10Vdc Analog Output to Control Winches

Part number: RT100-T-2-V2(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: spring return to center operation;
• 2: dual axis, cross direction (forward/backward and left/right) movement;
• V2: input: 24Vdc, output: 10Vdc…0…10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.
