RunnTech Single-axis Friction Hold Joystick Controller with an Output of 0-5V and a Push Button

Part number: RT100-M-1-V6(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• M: friction hold movement;
• 1: single axis 2 directions movement;
• V6: input: 24Vdc, output: 0…2.5…5Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts;
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis Joystick with 2*5K Potentiometer Return to Center -10V..0..+10V Output

Part number: RT100-T-1-V1(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centring when grip released;
• 1: single axis 2 directions movement;
• V2: input: 24Vdc, output: 10Vdc…0…10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts;
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single Axis Joystick 4…20mA Output for Hydraulic Valves of Proportional Bow Thruster

Product configuration: RT100-T-1-I2(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick;
• T: mechanical spring return to neutral;
• 1: single axis movement (Y aixs);
• I2: input: 24Vdc, output: 20mA…4mA…20mA ( centre current: 4mA);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional contacts and 1 center detecting contact in Y axis;
• HD1: joystick grip (top without pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm;

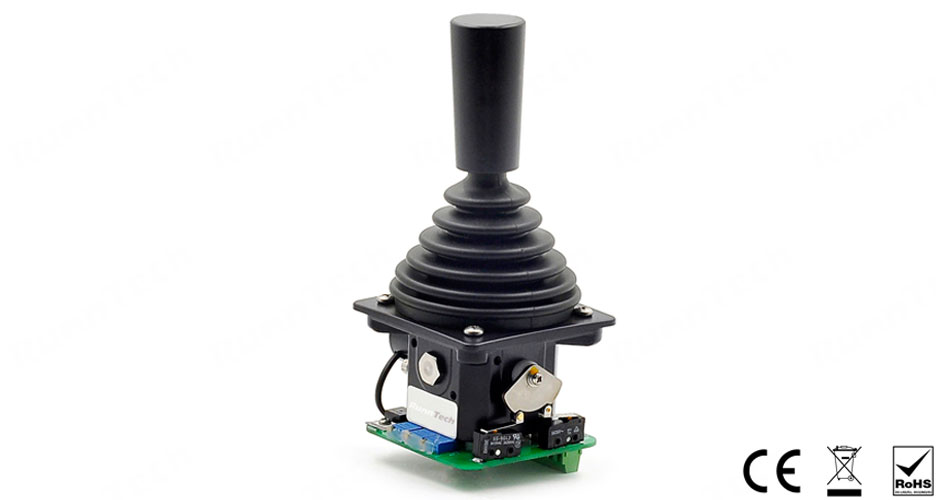

RunnTech Single Axis Friction Drive Joystick with 10k Ohm Potentiometer for Control Winch

Product configuration: RT100-M-1-P1(10K)-02(89)-HD1-M1

• RT100: RunnTech 100 series industrial joystick controller;
• M: friction brake;
• 1: single axis movement (Y axis, astern/ahead);
• P1: 0%…100% analog output;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap (with dead zone);
• 02(89): 2 directional switches in each axis;
• HD1: grip handle without pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

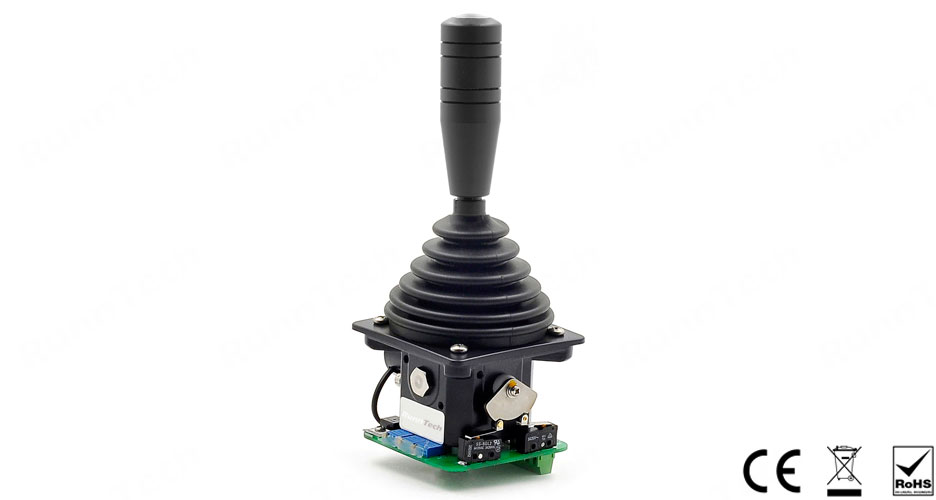

RunnTech Single Axis Industrial Joystick 4…20mA Output for Deck Crane Astern and Ahead Control

Product configuration: RT100-T-1-I2(10K)-03(589)-HD4-M1

• RT100: RunnTech 100 series industrial joystick;
• T: mechanical spring return to neutral;
• 1: single axis movement (Y aixs);
• I2: input: 24Vdc, output: 20mA…4mA…20mA (4mA is the centre current);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 03(589): 2 directional contacts and 1 center detecting contact in Y axis;
• HD4: joystick grip (top without pushbutton);
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 3 Axis Fingertip Hall Effect Joystick for MJP (Marine Jet Power) Vessel Control System

Part number: RT600-T-3-03-HV1-HD12-BT2-M11

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary switches;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

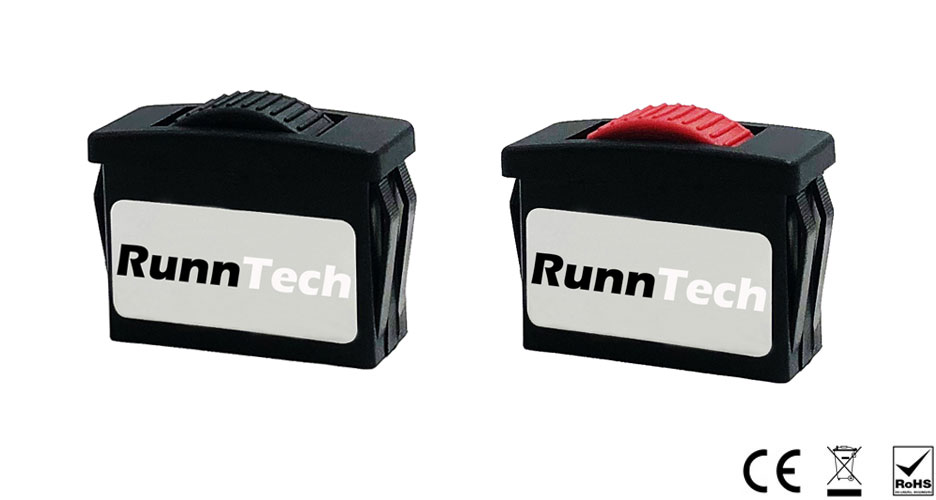

RunnTech Released New Version Front Mounted Hall Effect Proportional Thumbwheel Switch

After our technical team’s efforts, we are proud to announce the successful development of the new version front mounted Hall Effect proportional output thumbwheel switch with spring return to center or full stroke design.

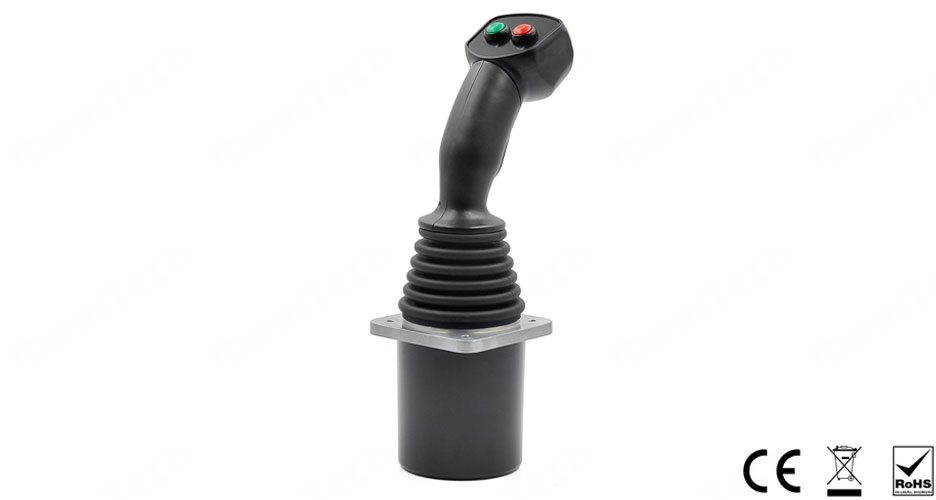

RunnTech 2 Axis Joystick Analog Output to Control Crane Forward/Backward and Lifting/Lowering

Product configuration: RT01-T-2-V2(10K)-02(89)-HD10b2-BT2③G②R-M4

• RT01: RunnTech 01 series industrial joystick;
• T: mechanical spring return to center;
• 2: dual axis cross direction movement;
• V2: input: DC 24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD10b2: grip with 1 momentary trigger switch & 2 pushbuttons;
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech Single-axis Hoist Joystick Lever 24V Input 0 to 5V Analog Output for Trucks Application

Product configuration: RT200-T-V6(10K)-02(89)-HD8-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• T: spring return to neutral position;
• V6: input: 24Vdc, output: 0…2.5…5Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02(89): 2 directional switch signals;
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis (forward/reverse, left/right movement) Joystick with Proportional Electrical Output

Product configuration: RT100-T-2-V1(10K)-02(89)-HD8-M1

• RT100: RunnTech RT100 series multi-axis industrial joystick;
• T: joystick self-centering operation;
• 2: dual axis, forward/reverse, left/right movement;
• V1: input 24Vdc, output: -10Vdc…0…+10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer;
• 02(89): 2 directional contacts in each axis;
• HD8: RunnTech HD8 grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;
