RunnTech Single-axis 4-20mA Proportional Joystick Controller for Off Highway Application

Product configuration: RT200-TS-I2(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis joystick controller;
• TS: spring return to center and center-lock;
• I2: input 24Vdc, output: 20mA~4mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open (NO) switches contacts;
• 89: +/- directional signal switches;
• T: T shape grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction Hold Proportional Joystick Controller for Vessel Industries

Part number: RT200-MS-V1(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• MS: friction hold with zero interlock;
• V1: input: 24Vdc, output: -10Vdc~0~+10Vdc;
• 10K: 2x5K ohm precision potentiometer;
• 03: 3 NO (normally open) contacts;
• 589: 2 +/- directional switches and 1 center detecting switch;
• HD5: handle with zero position mechanical interlock (lift to release the joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

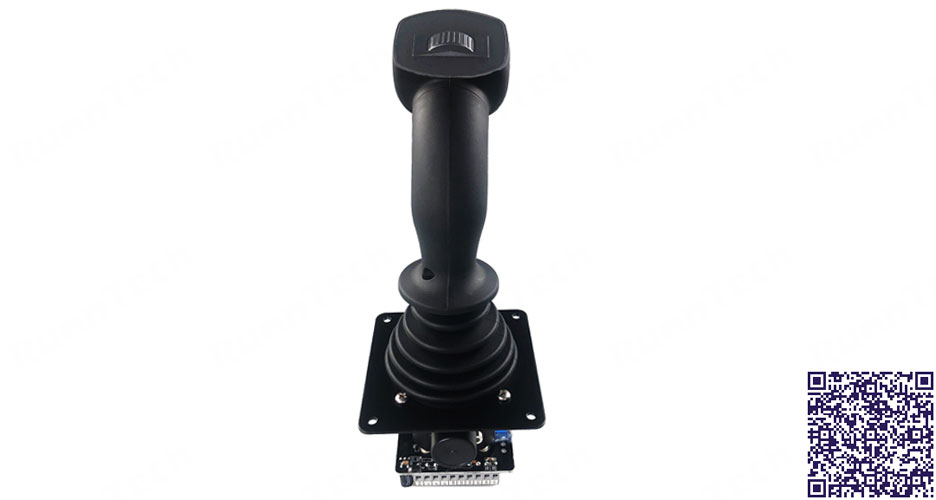

RunnTech Hall Effect 3-axes Omnidirectional Movement Joystick for Hydraulic Equipment

Part number: RT100-T-3-HV2(H)-02(66)-HD10b10-W100L-HV2-M7

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center when release knob;
• 3: dual axis, omnidirectional movement control;
• HV2: input: DC5V, output: 0.5V~2.5~+4.5V;
• 02: 2 normally open contacts in each axis;
• 66: contacts @ -32° to -3° and +3° to +32°;
• HD10b10: RunnTech joystick grip with deadman trigger;
• W100L-HV2: proportional thumbwheel provide the third (Z) axis control;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

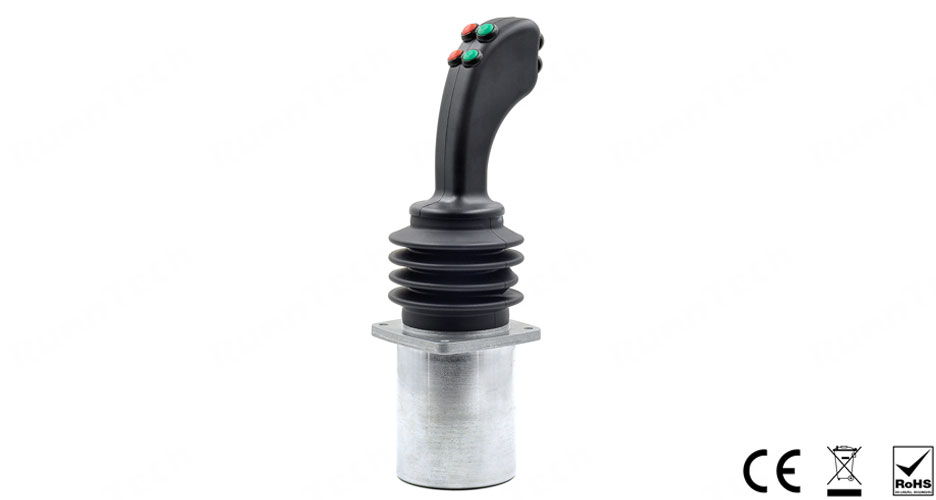

RunnTech RS232 Joystick with Direction, Center Detect Switch for Port Machine Simulator

Part number: RT02-T-2-HV1-03(589)-HD9-BT6②③④⑤⑥⑦-M6-RS232

• RT02: RunnTech 02 series robust joystick controller;
• T: spring return to handle centering;
• 2: dual axis plus (+) direction movement;
• HV1: input: 5 Vdc, output: 0 ~ 2.5 ~ 5 Vdc;
• 03: 3 normally open contacts in each axis;
• 589: 2 directional switches + 1 center detecting switch;
• HD9: grip with multi-function pushbuttons;
• BT6②③④⑤⑥⑦: 6 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.
• RS232: RS232 connection interface.

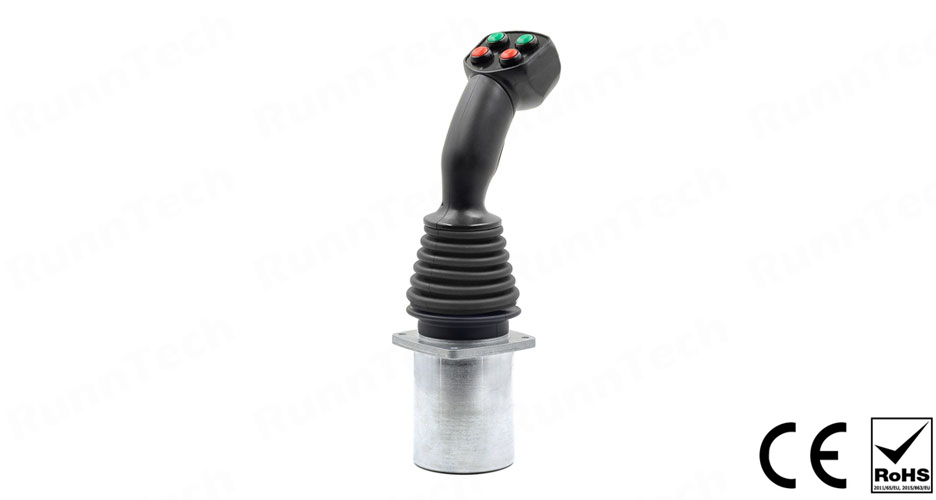

RunnTech Dual Axis Friction Hold Analog Joystick for Mechanical or Industrial Engineering

Product configuration: RT02-M-3-V1(10K)-02(55)-HD10b4-BT4-②④G③⑤R-M6

• RT02: RunnTech 02 series multi-axis robust joystick controller;
• M: friction hold operation;
• 3: dual axis omnidirectional control;
• V1: input: 24Vdc, output: -10~0~+10Vdc;
• 10K: 2*5K Ohm conductive-plastic precision potentiometer in each axis;
• 02: 2 normally open (NO) contacts in each axis;
• 89: 2 NO contacts @ -32° to -3° or +3° to +32°;
• HD10b4: RunnTech HD10 grip with deadman trigger;
• BT4: 4 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Hall Sensor Joystick with Trigger, Pushbuttons & Rocker for Mining Simulators

Part number: RT100-T-3-HV1-HD10b13-BT2④B⑤R-BS2②G③Y-QTOT-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 3: dual axis omnidirectional movement control;
• HV1: input: 5 Vdc, output: 0 ~ 2.5 ~ 5 Vdc;
• HD10b13: HD10b13 joystick grip with deadman trigger;
• BT2④B⑤R: 2 on/off momentary pushbuttons;
• BS2②G③Y: 2 self-lock pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech 2-axis Self-centered Potentiometer Ball Handle Joystick with Directional Switch

Product configuration: RT100-T-3-V2(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centered when handle released;
• 3: dual axis omni-directional movement;
• V2: input: 24VVdc or 12Vdc, output: +10Vdc – 0 – +10Vdc;
• 10K: 10K ohm precision potentiometer (with dead zone);
• 03: 3 normally open contacts in each axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 1 Axis Joystick with 0-10Vdc Proportional Output Each Direction & 3 Contacts

Part number: RT100-T-V2(10K)-03(589)-HD1-M1(12Vdc)

• RT100: RunnTech RT100 series joystick controller;
• T: mechanical self centered to center position;
• V2: input: 12Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision dead band potentiometer;
• 03: 3 normally open (NO) electromechanical switches signal in each axis;
• 589: 3 NO switches signal for forward, center and backward movement;
• HD1: joystick grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Analog Joystick with 0-10Vdc Output for 2 Directions & 3 Switches

Part number: RT200-MS-V2(10K)-03(589)-HD6-M1

• RT200: RunnTech RT200 series single-axis joystick controller;
• MS: friction brake and self-lock at center;
• V2: input: 24Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) switches signal in each axis;
• 589: 3 NO switches signal for forward, center and backward movement;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Joystick with 10K Ohm Precision Potentiometer Output (dead zone)

Product configuration: RT100-T-1-P1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 1: single axis movement operation;
• P1: simple 2 direction output with center tapped;
• 10K: 2*5K ohm precision potentiometer;
• 02(89): 2 NO (normally open) contacts in each axis;
• 89: NO contacts @ forward and backward direction;
• HD8: RunnTech joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.
