RunnTech 2 Axis Hall Effect Sensor Joystick with Deadman Trigger and Momentary Button

Part number: RT100-T-2-HV1-02(89)-HD10b2-BT2③R②G-M7

• RT100: RunnTech 100 series industrial joystick controller;
• T: mechanical spring return to central;
• 2: dual axis, plus (+) directional operation;
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: NO contacts closed at +/- direction in each axis;
• HD10b2: HD10 grip with deadman trigger;
• BT2②G③R: 2 momentary push buttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

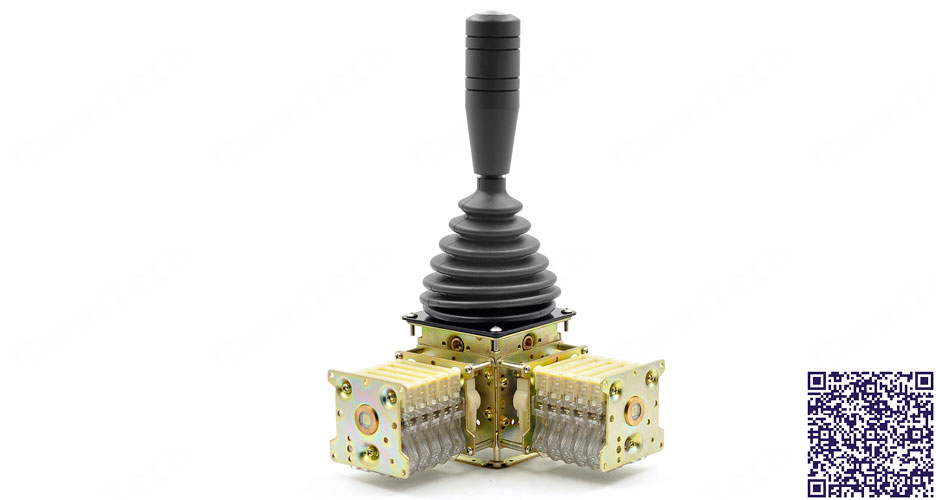

RunnTech 2 Axis Omnidirectional Movement 3 Steps Joystick Controller for Crane Control

Product configuration: RT300-T-3-L-3(1)-HD4-M5

• RT300: RunnTech 300 series crane joystick (master controller);
• T: spring-return to center operation;
• 3: 2 axis, omnidirectional movement;
• L: switch assembled horizontal;
• 3(1): 3 steps each direction, (1): contact arrangement;
• HD4: joystick grip top without pushbutton;
• M5: mounting dimension: 85x85mm, central hole: 78mm.
