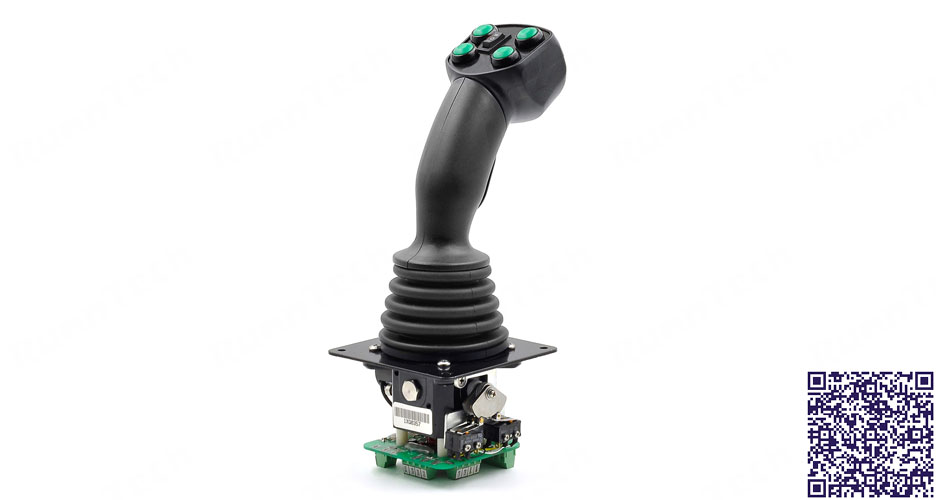

RunnTech Hall Sensor Joystick with Trigger, Pushbuttons & Rocker for Mining Simulators

Part number: RT100-T-3-HV1-HD10b13-BT2④B⑤R-BS2②G③Y-QTOT-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 3: dual axis omnidirectional movement control;
• HV1: input: 5 Vdc, output: 0 ~ 2.5 ~ 5 Vdc;
• HD10b13: HD10b13 joystick grip with deadman trigger;
• BT2④B⑤R: 2 on/off momentary pushbuttons;
• BS2②G③Y: 2 self-lock pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech 2-axis Self-centered Potentiometer Ball Handle Joystick with Directional Switch

Product configuration: RT100-T-3-V2(10K)-03(589)-HD2-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-centered when handle released;
• 3: dual axis omni-directional movement;
• V2: input: 24VVdc or 12Vdc, output: +10Vdc – 0 – +10Vdc;
• 10K: 10K ohm precision potentiometer (with dead zone);
• 03: 3 normally open contacts in each axis;
• 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 1 Axis Joystick with 0-10Vdc Proportional Output Each Direction & 3 Contacts

Part number: RT100-T-V2(10K)-03(589)-HD1-M1(12Vdc)

• RT100: RunnTech RT100 series joystick controller;
• T: mechanical self centered to center position;
• V2: input: 12Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision dead band potentiometer;
• 03: 3 normally open (NO) electromechanical switches signal in each axis;
• 589: 3 NO switches signal for forward, center and backward movement;
• HD1: joystick grip;
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Analog Joystick with 0-10Vdc Output for 2 Directions & 3 Switches

Part number: RT200-MS-V2(10K)-03(589)-HD6-M1

• RT200: RunnTech RT200 series single-axis joystick controller;
• MS: friction brake and self-lock at center;
• V2: input: 24Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) switches signal in each axis;
• 589: 3 NO switches signal for forward, center and backward movement;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Joystick with 10K Ohm Precision Potentiometer Output (dead zone)

Product configuration: RT100-T-1-P1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 1: single axis movement operation;
• P1: simple 2 direction output with center tapped;
• 10K: 2*5K ohm precision potentiometer;
• 02(89): 2 NO (normally open) contacts in each axis;
• 89: NO contacts @ forward and backward direction;
• HD8: RunnTech joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Single-axis Proportional Joystick Controller with Friction Hold & Lift to Release

Part number: RT200-MS-V1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• MS: friction hold with zero interlock;
• V1: input: 24Vdc, output: -10Vdc~0~+10Vdc;
• 10K: 2x5K ohm precision potentiometer;
• 02: 2 NO (normally open) directional contacts;
• 89: 2 NO contacts signal at +/- direction;
• HD5: handle with zero position mechanical interlock (lift to release the joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Hall Proportional Thumbwheel Switch for Grip, Armrest or Panel Application

Part number: W100L-T-HV1

• W100: RunnTech W100 series Hall effect thumbwheel switch;
• T: self-centering (automatically return to center);
• HV1: input: 5Vdc, output: 0Vdc~2.5Vdc~5Vdc;

RunnTech Single-axis Joystick with 3 NO Contacts for Forward, Middle & Backward Signal

Part number: RT200-TS-V2(10K)-03(589)-HD6-M2

• RT200: RunnTech RT200 series single-axis joystick controller;
• TS: spring return to center and self-lock at center;
• V2: input: 24Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open (NO) contacts in each axis;
• 589: 3 NO contacts for forward, middle and backward signal;
• HD6: joystick grip with zero interlock (press to release joystick);
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Single-axis Joystick with 10Vdc Output and Speed Signal for PLC or Motor Drive

Product configuration: RT200-TS-V2(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: spring return to center with zero lock;
• V2: 24Vdc input, output: +10Vdc~0~+10Vdc;
• 02: 2 normally open directional contacts;
• 89: 2 NO contacts to command the PLC to the left/right direction;
• HD5: joystick grip with zero interlock (pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;
