RunnTech Single-axis Joystick with 4-20mA Output for Hydraulic Proportional Control

Product configuration: RT200-TS-I1(10K)-01(5)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: spring return to center and self-lock at center;
• I1: input 24Vdc, output: 4 wire 4mA-12mA-20mA (current output);
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open (NO) switches contacts;
• 5: NO contacts closed at center position;
• HD6: joystick grip with zero interlock ((push to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

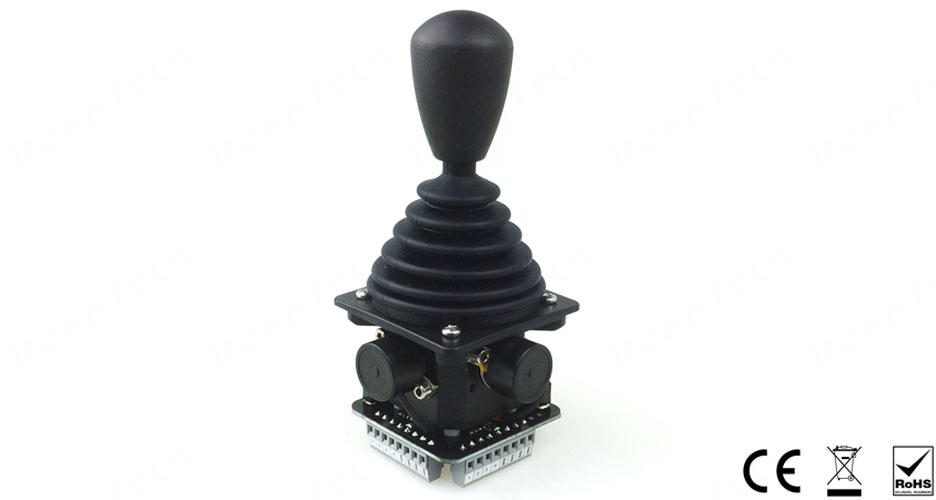

RunnTech 2-axis Joystick with Industry Standard 4-20mA Output and Directional Switches

Product configuration: RT100-T-3-I1(10K)-02(89)-HD8-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to centre position;
• 3: dual axis free movement;
• I1: input: 24Vdc, output: 4mA~12mA~20mA;
• 02: 2 normally open directional contacts;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD8: RunnTech HD8 palm grip;
• M1: mounting dimension 56x56mm, central hole: 63mm.

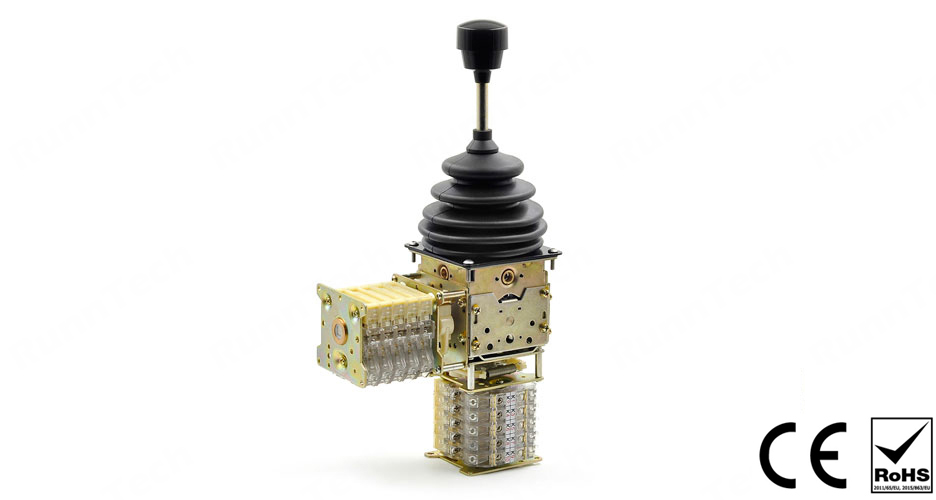

RunnTech Multi-axis 4 Steps Joystick Command Controller with 10K Ohm Potentiometer

Product configuration: RT300-TS-3-I-P1(10K)-4(5)-HD39-M5

• RT300: RunnTech RT300 series hoist joystick (master controller);
• TS: mechanical spring return to center and zero interlock;
• 3: Y & X axis free movement;
• I: switch assembled vertical;
• P1: simple 2 directions output (with dead zone);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 4(5): 4 steps each direction, (5): contacts arrangement;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

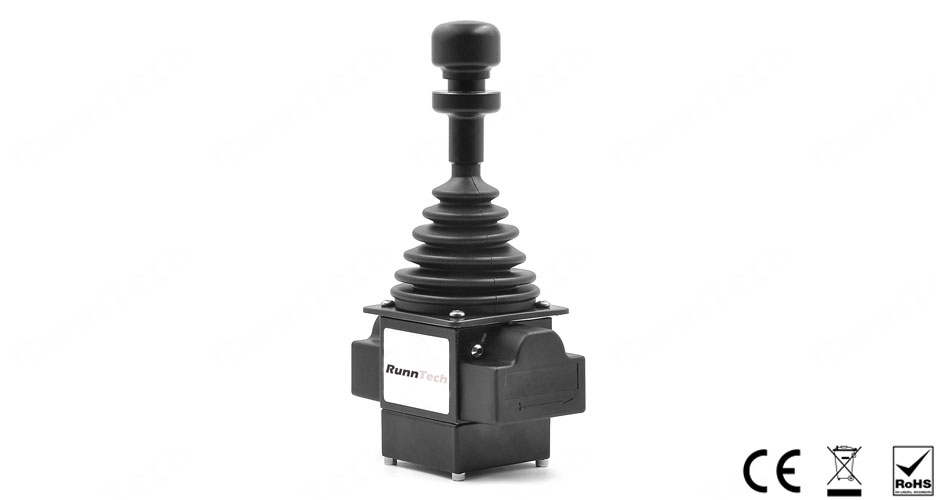

RunnTech 4mA – 12mA – 20mA Output Joystick for Marine Hydraulic Proportional Control

Product configuration: RT200-TS-I1(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: self-centering with zero interlock (pull to release the grip);
• I1: input: 24Vdc, output: 4mA – 12mA – 20mA;
• 03: 3 normally open contacts in each axis;
• 589: 2 direction signals + 1 zero position signal;
• HD5: joystick grip with zero interlock ((pull to release);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

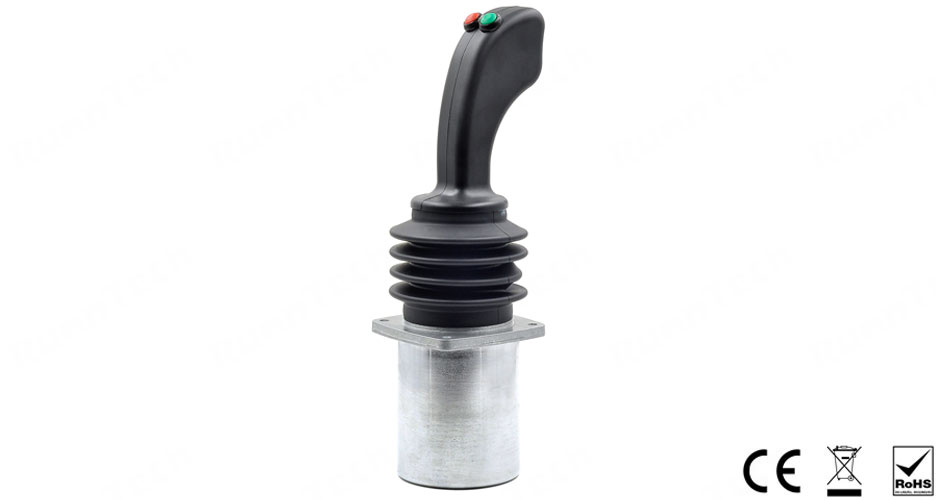

RunnTech Multi-axis Joystick Controller 20…4…20 mA Output for Industrial Automation

Part number: RT02-T-3-I2(10K)-03(589)-HD9-BT2③R②G-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical spring return to handle centering;
• 3: dual axis full direction movement;
• I2: input: 24VDC, current output: 20mA…4mA…20mA;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: 2 direction signals + 1 zero position signal;
• HD9: grip with multi-function pushbuttons;
• BT2⑥R④G: 2 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech 3 Axis Joystick with 10K Potentiometers +10V to 0 to +10V Output on Each Axis

Part number: RT100-T-2-V2(10K)-02(89)-HD10b8-BT2②R③G-W100L-V2(H)-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center position;
• 2: XY axis cross movement;
• V2: input: DC 24V, output +10V~0~+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open (NO) contacts in Y axis;
• 89: directional contacts @ -32° to -3° or +3° to +32°;
• HD10b8-BT2②R③G: 1 deadman trigger and 2 pushbuttons;
• W100L: proportional thumbwheel (Z axis);
• V2(H): input DC 24V, output +10V~0~+10V (hall sensor);
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;
