RunnTech Single-axis Frcition Joystick Trigger & Resistive Potentiometer for Tunnel Train

Product configuration: RT100-M-1-V4(10k)-02(89)-HD10b2-BT2②G③R-M7

• RT100: RunnTech 100 series joystick controller;
• M: friction hold operation;
• 1: single axis movement (default: Y axis);
• V4: input: 24Vdc, output: +5Vdc ~ 0 ~ +5Vdc;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: backward and forward directional contacts;
• HD10b2-BT2②G③R: grip with deadman trigger and 2 pushbuttons;
• M7: mounting dimension: 85x85mm, central hole: 80x80mm;

RunnTech Single-axis Side-Power Joystick 0-10V Proportional Output Thruster Control

Product configuration: RT200-T-1-V5(10K)-01(2)-HD8-M1

• RT200: RunnTech 200 series single-axis industrial joystick controller;
• T: mechanical spring return to neutral position;
• V5: V5: input: 24Vdc, output: 0Vdc~10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 01: 1 normally open contact in each axis;
• 2: contacts @ -29° to +32° (forward);
• HD8: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis Friction Hold Joystick 4-12-20mA and 2 Directional Contacts Each Axis

Product configuration: RT02-M-3-I1(10K)-02(89)-HD11-M6-120CM

• RT02: RunnTech 02 series robust joystick controller;
• M: friction hold position;
• 3: Y/X axis omnidirectional movement;
• I1: input 24Vdc, output: 4 wire 4mA-12mA-20mA (current output);
• 10K: 10K ohm precision potentiometer;
• 02: 2 sets normally open contacts in each axis;
• 89: contacts closed at forward/reverse or left/right;
• HD11: grip top without pushbutton;
• M6: mounting dimension: 76x76mm, central hole: 92mm.
• 120CM: lead wires length are 120CM.

RunnTech 2 Axis, 5 Steps Hoist Joystick Controller for Cabin Crane Cross and Long Travel

Part number: RT300-MS-2-L-5(1)-HD39-M5

• RT300: RunnTech RT300 series joystick (master controller);
• MS: stay-in-place mechanism (joystick should stay in the position where you released it);
• 2: 2 axis, cross directions movement (with cross limiter plate);
• L: switch assembled horizontal;
• 5(1): 5 steps in each direction, (1): switches contact arrangement;
• HD39: grip with latch for mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Self-resetting Zero-lock Joystick with 2 Directional Signal Contacts

Product configuration: RT200-TS-V1(10K)-03(589)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick controller;
• TS: self-resetting with zero lock;
• V1: 24Vdc input, output:+/-10Vdc;
• 03: 3 normally open contacts;
• 589: 2 directional signal contacts and 1 central contact;
• HD5: joystick grip with zero interlock;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

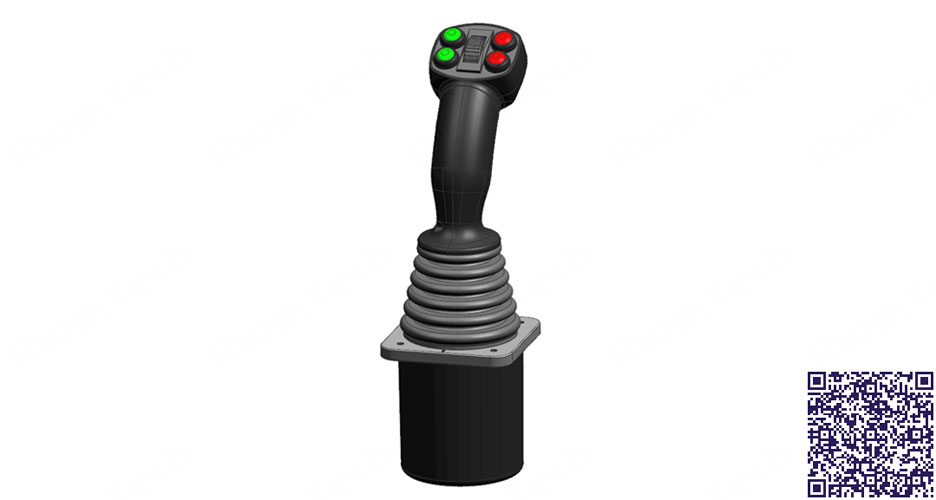

RunnTech 3 axis Full-grip Joystick with RS232 Interface for Intellectual Robot Systems

Product configuration: RT01-T-3-HV1-02(89)-HD10b13-BT4②③R④⑤G-[W100L-HV1]-M4-RS232

• RT01: RunnTech 01 series cobra-head joystick;
• T: mechanical spring return to center;
• 3: XY axis full direction free movement;
• HV1: input 5Vdc, output: 0~2.5~5Vdc;
• 02: 2 normally open contacts in X/Y axis;
• 89: contacts closed at -32° to -3° or +3° to +32°;
• HD10b13: grip backside with 1 momentary trigger;
• BT4②③R④⑤G: grip top with 4 pushbuttons;
• W100L-HV1: Z axis with 0~2.5~5Vdc output thumbwheel.
• M4: mounting dimension 64x64mm, central hole: 83mm.
• RS232: RS232 connection interface.

RunnTech XYZ Axis Industrial Joystick with RS232 Output for Car/Bus/Truck Simulators

Product configuration: RT02-T-3-HV1-02(89)-HD10b8-BT2②③R-[W100-HV1]-M6-RS232

• RT02: RunnTech 02 series robust industrial joystick;
• T: spring return to center operation;
• 3: XY axis free movement;
• HV1: input: 5VDC, output: 0V~2.5V~5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b8: grip backside with 1 deadman trigge;
• BT2②③R: on top of grip with 2 momentary pushbuttons;
• W100L-HV1: proportional thumbstick with 0 to 5V output (Z axis);
• M6: mounting dimension: 76x76mm, central hole: 92mm;
• RS232: RS232 output.

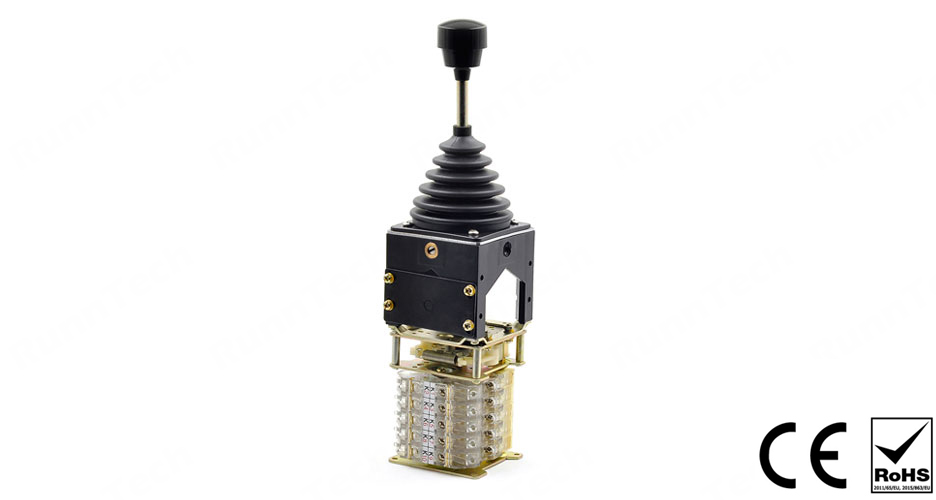

RunnTech Single-axis 4 Steps 2 Directions Joystick Controller for Hoist Up/Down Control

Product configuration: RT300-TS-1-I-4(1)-HD39-M5

• RT300: RunnTech 300 series joystick controller;
• TS: mechanical spring return to center and zero interlock;
• 1: single axis movement;
• I: switch assembled vertical direction;
• 4: 4 steps each direction;
• 1: normally open (NO) contacts closed diagram;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

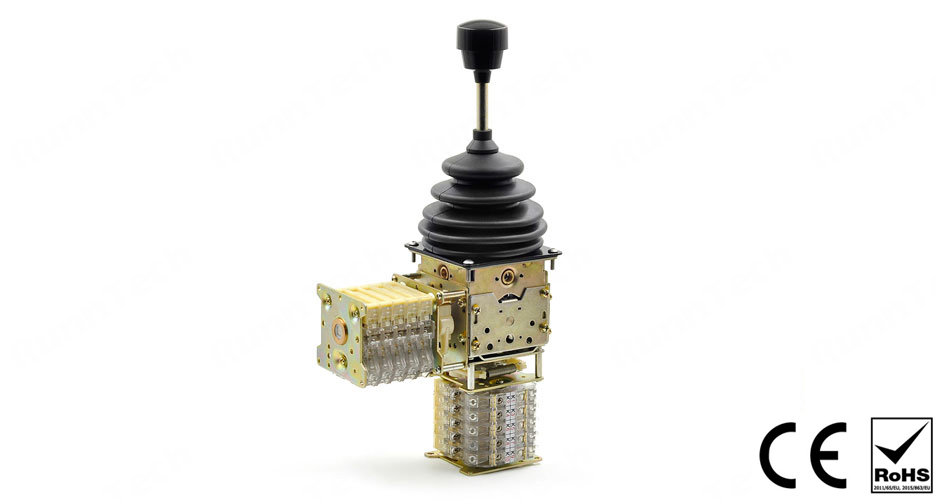

RunnTech Double-axis 4 Steps Joystick Master Controller for Trolley and Bridge Control

Product configuration: RT300-TS-2-I-4(55)-HD39-M5

• RT300: RunnTech 300 series trolley and bridge joystick controller;
• TS: mechanical spring return to center and zero interlock;
• 2: Y & X axis plus direction (+) movement;
• I: switch assembled vertical direction;
• 4: 4 steps each direction;
• 55: normally open (NO) contacts closed diagram;
• HD39: RunnTech joystick grip with mechanical zero interlock;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

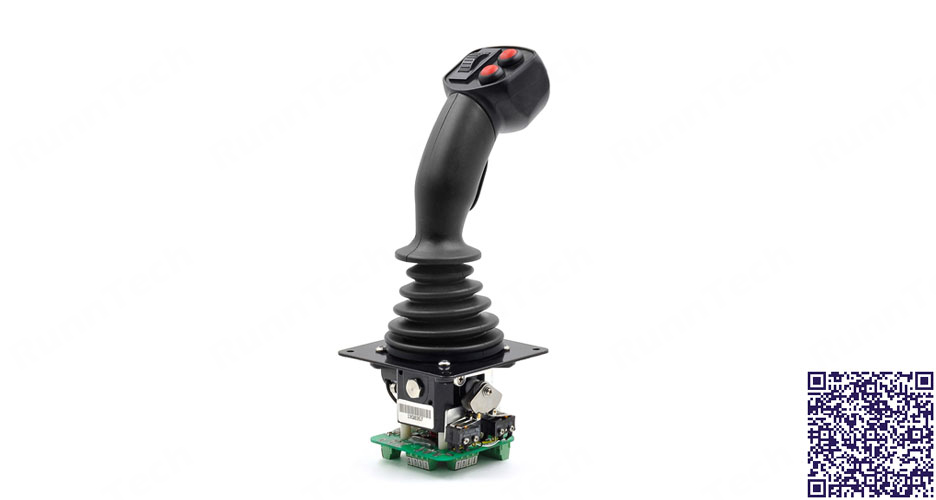

RunnTech 3 Axis Industrial Joystick with 1 Thumbwheel & 2 Pushbuttons for ROV Control

Part number: RT100-T-2-V1(H)-02(89)-HD10a8-BT2②③R-[W100L-V1(H)]-M7

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: self-return to center position;
• 2: dual axis movement with plus limiter plate (+);
• V1(H): input: DC24Vdc, output: -10Vdc~0~+10Vdc;
• 02: 2 normally open contacts in both Y & X axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10a8: grip without deadman trigger;
• BT2③②R: 2 momentary pushbuttons;
• W100L-V1(H): +/-10Vdc proportional output thumbwheel (the third axis);
• M7: mounting dimension 85x85mm, central hole: 80x80mm;
