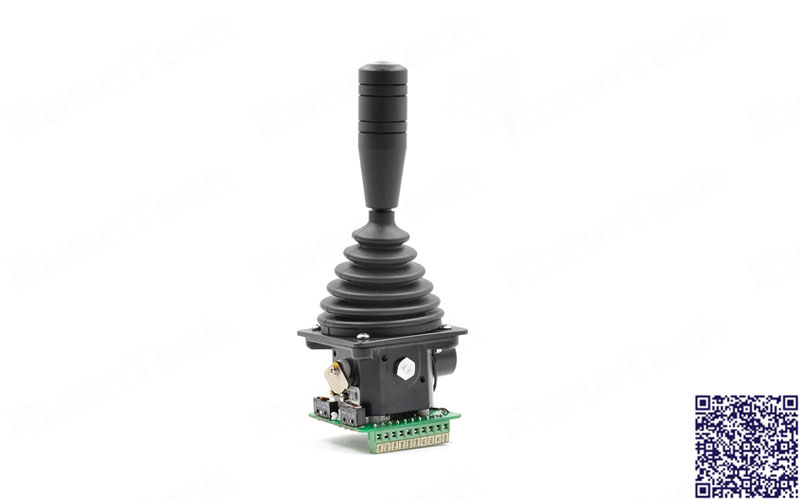

RunnTech Dual-axis 4 to 20mA Proportional Output Joystick for Hydraulic Remote Control

News & Events
Product configuration: RT100-T-2-I1(10K)-02(89)-HD2-M1
  • RT100: RunnTech 100 series industrial joystick;
  • T: joystick returns to center when grip released (self-centering);
  • 2: dual axis, 4 directions movement;
  • I1: input DC 24V/12V, output: 4mA…12mA…20mA;
  • 10K: 10K Ohm conductive-plastic potentiometer;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD2: round ball shape joystick grip;
  • M1: mounting dimension 85x85mm, central hole: 63mm.

RunnTech Dual-axis 4mA to 20mA Proportional Output Joystick for Hydraulic Remote Control

RunnTech Single Axis Friction 4-20mA Proportional Signal Joystick with 3 Steps Movement

News & Events
Product configuration: RT100-M-1-I2(10K)-3(1)-HD80-BT2②B①Y-M1
  • M: friction hold position (no return to center);
  • 1: single axis (default: Y axis);
  • I2: input DC 24V, output: 20mA…4mA…20mA;
  • 10K: 10K ohm precision potentiometer;
  • 3: 3 steps movement;
  • 1: contact closed position;
  • HD80-BT2②B①Y: joystick grip with 2 push buttons;
  • M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech Single Axis Friction Hold 4-20mA Proportional Signal Joystick with 3 Steps Movement

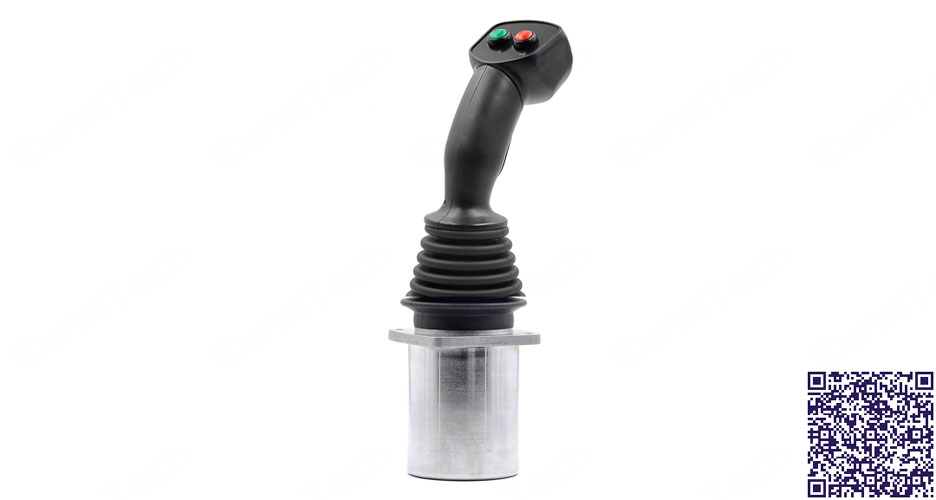

RunnTech Single-Axis Self-centering Proportional Control Joystick with RS232 Interface

News & Events
Product configuration: RT02-T-1-P1(10K)-02(89)-HD10b2-BT2②G③Y-M6-RS232 (12VDC)
  • RT02: RunnTech 02 series joystick controller;
  • T: self-centering movement operation;
  • 1: single axis movement;
  • P1: simple 2 electrical output for every positions;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD10a2: grip with 2 push buttons;
  • M6: mounting dimension: 76x76mm, central hole: 92mm;
  • RS232: RS232 interface.

RunnTech Single-Axis Self-centering Proportional Control Joystick with RS232 Interface

RunnTech Single-axis Spring Return Joystick 0-10V Analog Output for Mobile Hydraulics

News & Events
Product configuration: RT200-TS-V2(10K)-02(89)-HD5-M1
  • RT200: RunnTech 200 series single-axis joystick;
  • TS: self-centering with zero interlock (pull to release);
  • V2: 24V/12V DC input, +10V…0…+10V proportional output;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD5: handle with zero interlock (pull to release);
  • M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Spring Return Joystick 0-10V Proportional Output for Mobile Hydraulics

RunnTech Single-axis Spring Return Joystick 0-10V Proportional Output in Each Direction

News & Events
Product configuration: RT200-TS-V2(10K)-02(89)-HD5-M1
  • RT200: RunnTech 200 series single-axis joystick;
  • TS: self-centering with zero interlock (pull to release);
  • V2: 24VDC input, +10V…0…+10V proportional output;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD5: joystick grip with zero interlock;
  • M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Spring Return to Center Joystick 24VDC Input, 0-10VDC Proportional Output in Each Direction

RunnTech Multi-axis +/-5V Analog Output Joystick Controller with 1 NO Deadman Trigger

News & Events
Product configuration: RT100-T-2-V3(10K)-02(89)-HD15-BT1-QTOT-M1
  • RT100: RunnTech 100 series multi-axis joystick joystick lever;
  • T: spring return to central operation;
  • 2: dual axis, cross movement (with + limiter plate);
  • V3: input: DC24V, output:-5V…0…+5V;
  • 10K: 10K ohm precision potentiometer;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD15-BT1: grip with 1 NO deadman trigger;
  • QTOT: rocker switch;
  • M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Multi-axis +/-5V Analog Output Joystick Controller with 1 NO Deadman Trigger
