RunnTech Single Axis Spring Return to Nutural Joystick with +/-10V Proportional Output

Product configuration: RT100-T-1-V1(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 1: single axis 2 directions movement;
• V1: input: DC24V, output: -10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• HD7: RunnTech joystick HD7 grip with push button;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Heavy Duty 2 Axis Mechanical Friction Hold Joystick with +10V Analog Output

Product configuration: RT02-MS-3-P1(25%-50%-75%)(10K)-02(89)-HD50-M6

• RT02: RunnTech 02 series joystick controller;
• MS: friction brake with center-lock operation;
• 3: dual axis omni-directional control;
• P1(25%-50%-75%): 25%…75%Vdc output (if input 24V, output will be 6…12…18Vdc);;
• 10K: 10K ohm center tapped potentiometer;
• 02(89): 2 directional switches in each axis;
• HD50: grip with mechanical lock-in at 0 position (lift to release the joystick);
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single-axes Hall Sensor Joystick Lever with 2 Normally Open Direction Switches

Product configuration: RT100-T-1-HV1-02(89)-HD2-M1

• RT100: RunnTech 100 series industry joystick lever;
• T: spring return to central operation;
• 1: single axis movement (default: Y axis);
• HV1: input: 5VDC, proportional output: 0…2.5…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD2: round ball shape joystick grip;
• M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech 6 Steps Self-centering Crane Hoist Master Joystick Controller with Hall Sensor

Product configuration: RT300-TS-2-L-3(4)-HV1-HD39-M5

• RT300: RunnTech RT300 series joystick (master controller);
• TS: spring return to center and self-lock at center;
• 2: 2 axis, cross direction (with cross limiter plate);
• L: switch assembled horizontal;
• 3(4): 3 steps in each direction, (4): contact arrangement;
• HV1: input: DC5V, output: 0…2.5…5V (rail to rail);
• HD39: joystick handle type;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech 2 Steps Movement Single-axis Friction Position Crane Master Joystick Lever

Product configuration: RT300-M-1-L-2(3)-HD8-M5

• RT300: RunnTech RT300 series master controller;
• M: friction hold position operation;
• 1: single axis movement (default: Y direction);
• L: switch assembled horizontal;
• 2(3): 2 steps each direction, (3): contacts arrangement;
• HD8: RunnTech joystick grip model;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Multi-axis Simple 2 Directions Proportional Output 10k Potentiometer Joystick

Product configuration: RT100-T-3-P1(10K)-01(5)-HD4-M2

• RT100: RunnTech 100 series joystick controller;
• T: self-centering movement operation;;
• 3: dual axis, 360° direction movement;
• P1: simple 2 directions proportional output;
• 10K:10K ohm precision potentiometer;
• 01(5): 1 directional contact in the center of each axis;
• HD4: grip without momentary pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech 2 Axis 0.5 to 4.5V Analog Output Fingertip Joystick with Momentary Button

Product configuration: RT600-T-2-03-HV2-HD13-BT1R

• RT600: RunnTech RT600 series Hall effect miniature joystick controller;
• T: self-resetting operation;
• 2: dual axis control;
• 03: Y & X axis 360° free movement;
• HV2: input: DC 5V, output: 0.5V…2.5V…4.5V;
• HD13-BT1R: joystick grip with 1 momentary pushbutton;

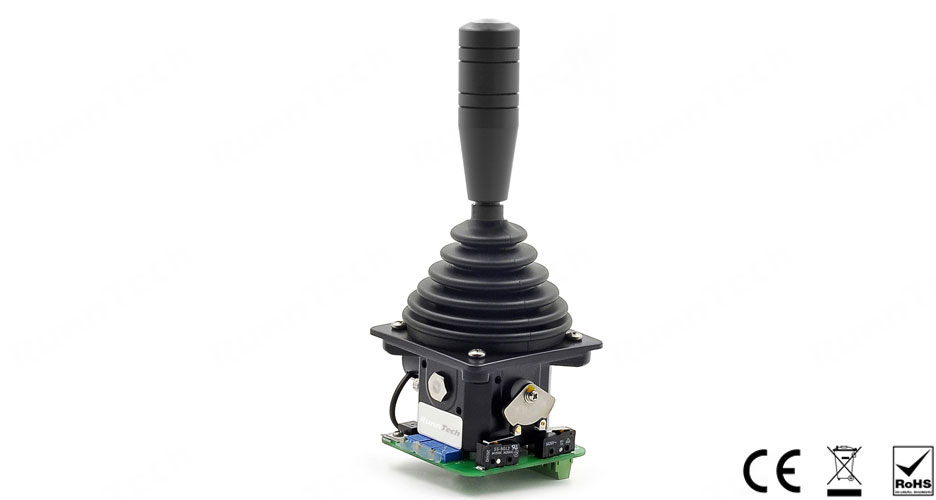

RunnTech Single-axis Self-centering Analog Output Joystick for Variable Speed Control

Product configuration: RT100-T-1-V2(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: mechanical spring return to center;
• 1: single axis 2 directions (forward/backward or up/down operation);
• V2: input: DC24V or 12V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4-BT1R: grip without momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

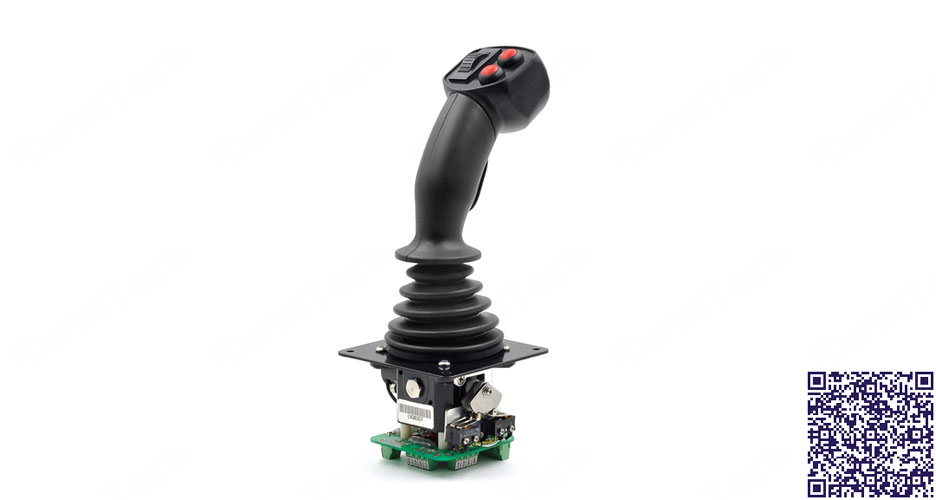

RunnTech 3 Axis Spring-return Hall Effect Sensor Joystick with 0 to 5V DC Analog Output

Product configuration: RT100-T-2-HV1-02(89)-HD10b8-BT2③②R-(W100L-HV1)-M7

• RT100: RunnTech 100 series multi-axis joystick;
• T: self-returns to center when handle is released;
• 2: dual axis, cross movement control;
• HV1: input: DC5V, output: 0…2.5…5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b8: joystick grip with deadman trigger;
• BT2③②R: 2 momentary thumb push button;
• W100L: proportional thumbwheel (the third axis control);
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

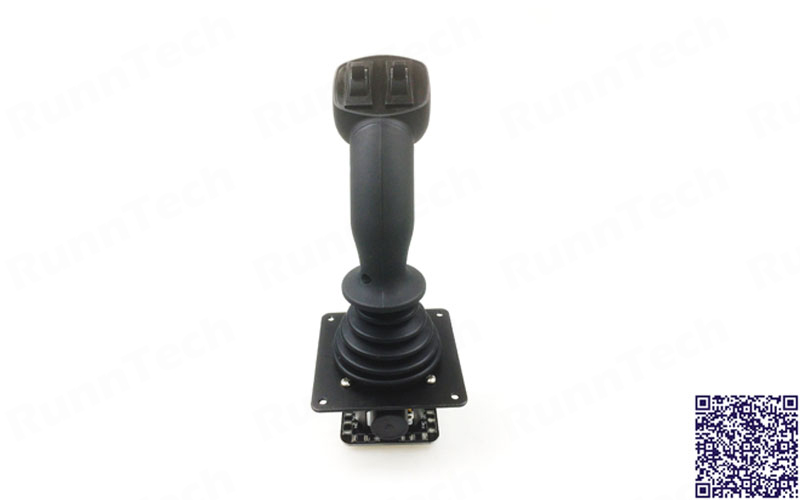

RunnTech 4 Axis Spring-return Hall Joystick with Deadman & Proportional Thumbwheel

Product configuration: RT100-T-3-HV1-H-00-HD10b9(W100H*2-HV1)-M7

• RT100: RunnTech 100 series multi-axis joystick lever;
• T: joystick returns to center when handle is released;
• 3: dual axis, 360° movement control;
• HV1: input: DC5V, output: 0…2.5…5V;
• HD10b9: RunnTech joystick grip with deadman trigger;
• W100H: proportional thumbwheel provide the third & fourth axis control;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;
